Introduction

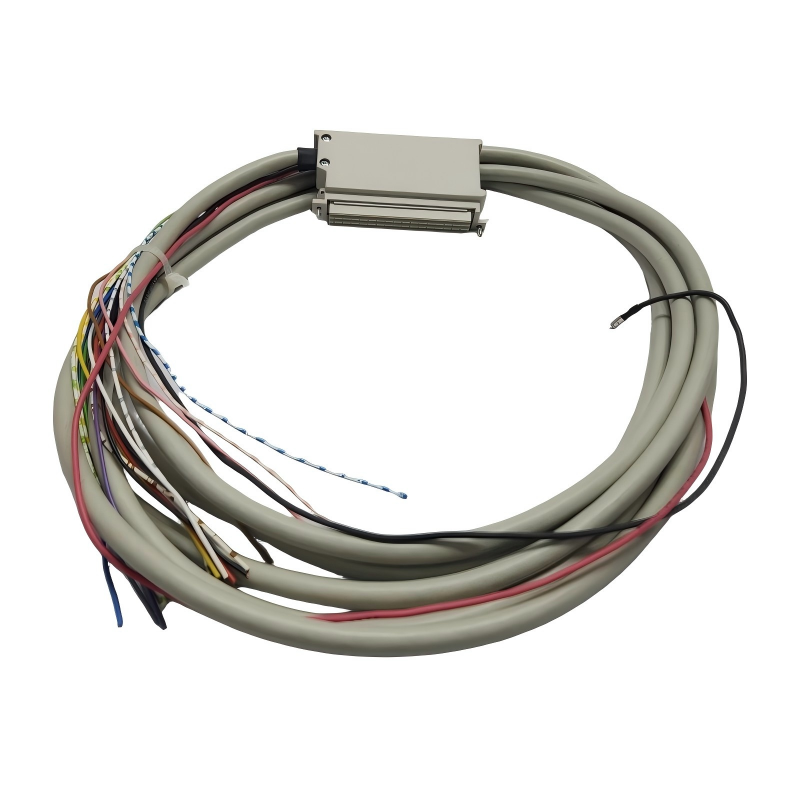

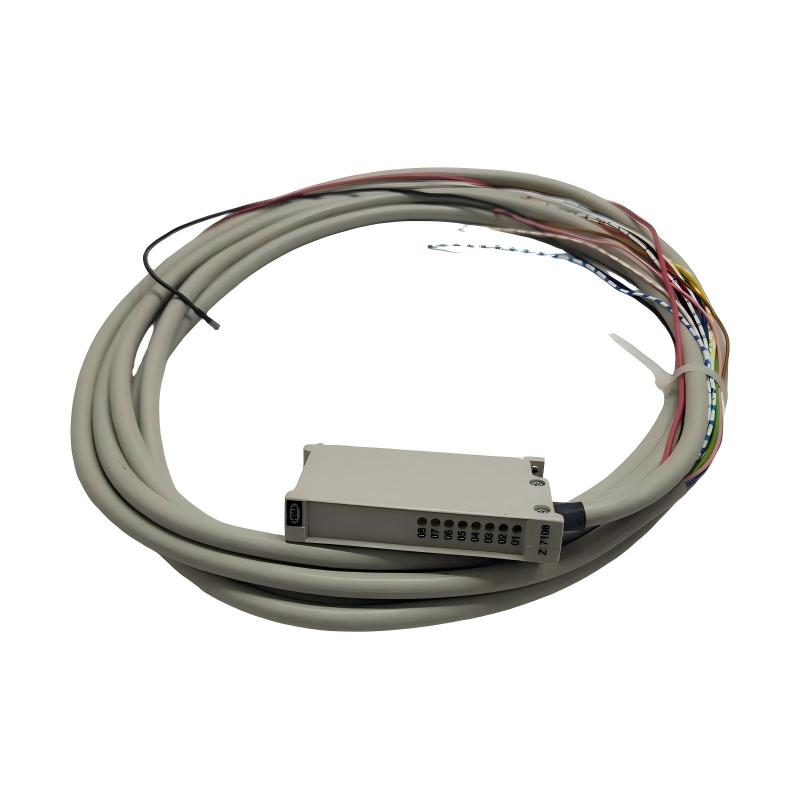

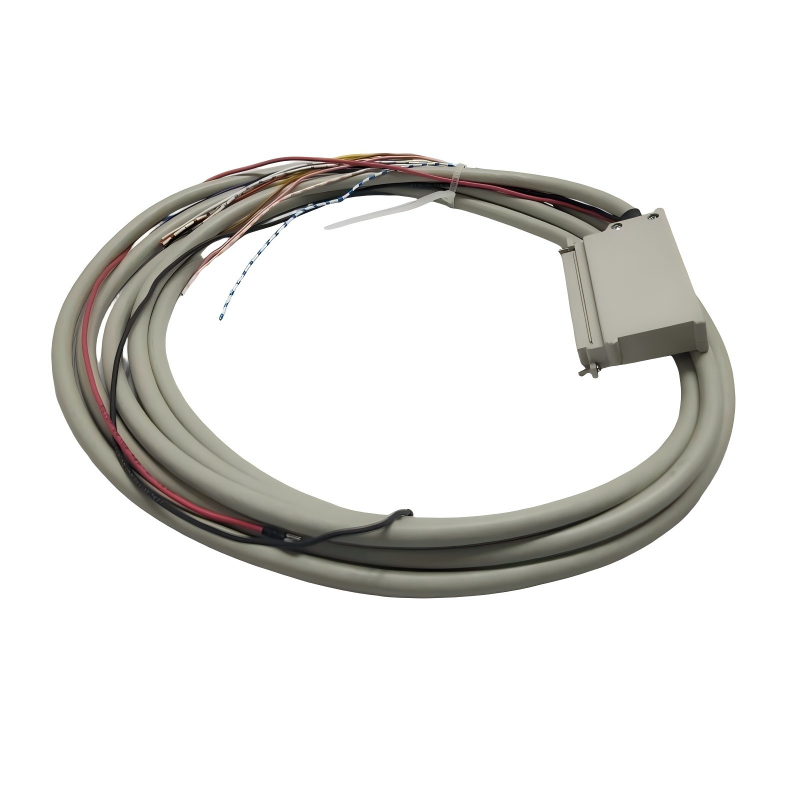

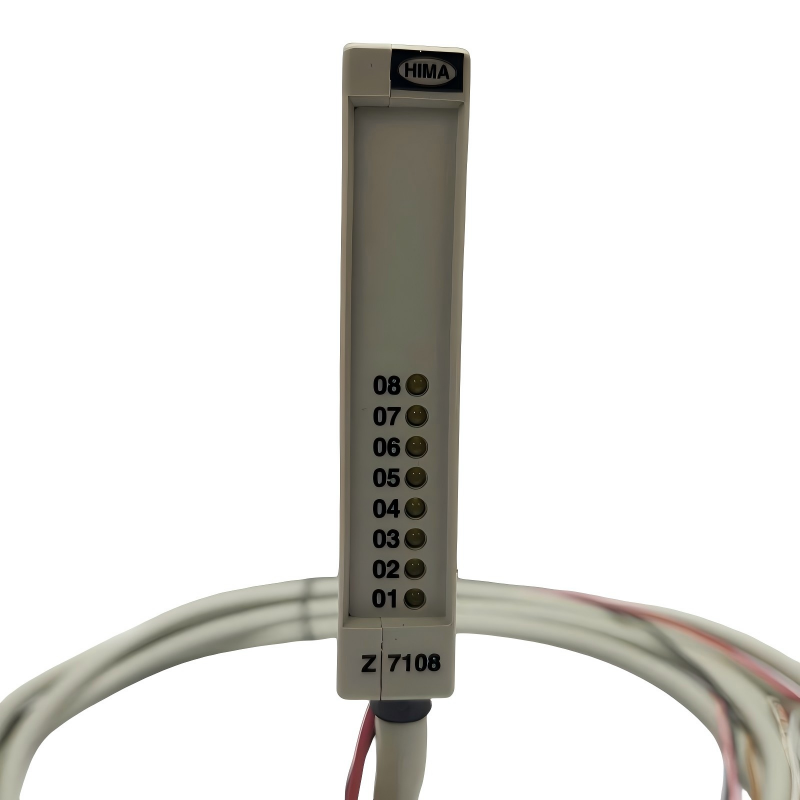

The HIMA Z7108 Industrial Computer Cables offer a balance of compact design, durability, and reliable connectivity for industrial automation systems. With a space requirement of only 4 TE, they are perfect for high-density rack installations where every millimeter counts. Designed for compatibility with HIQuad and other HIMA modular systems, these cables ensure uninterrupted data transmission in SIL 3-rated environments. Ideal for both new installations and retrofits, Z7108 cables streamline industrial cabling while maintaining the highest reliability and performance standards.

Technical Specifications

Specification	Details
Space Requirement	4 TE
Shipping Weight	3 kg (6.61 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital & Analog
Compatibility	HIQuad and HIMA modular systems
Mounting	Rack-mounted or panel-mounted
Construction Material	Industrial-grade plastics & metals
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA Z7108 Industrial Computer Cables are engineered for robust connectivity in demanding industrial environments. Typical applications include:

Interfacing industrial computers with HIQuad and other HIMA modular systems.
Rack-mounted automation and control systems requiring compact cabling.
Safety-critical systems in chemical, energy, and transportation industries.
High-density industrial cabinets where space efficiency is essential.
Replacement or extension of existing HIMA industrial networks without downtime.

Advantages

The Z7108 cables are designed to maximize reliability, space efficiency, and ease of use:

Compact Design: Occupies only 4 TE of rack space for high-density installations.
Reliable Transmission: Maintains signal integrity for digital and analog signals.
Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature ranges.
Plug-and-Play Installation: Simplifies maintenance and reduces setup time.
Modular Compatibility: Fully compatible with HIMA HIQuad and other system modules.

Technical FAQs

What does 4 TE mean?
It refers to the width of the cable in terminal units, allowing efficient use of rack space.
Can Z7108 be used in safety systems?
Yes, compatible with SIL 3-rated systems when integrated with HIQuad modules.
What is the maximum operating temperature?
Designed to function from -20°C to 70°C.
Is it suitable for high-vibration environments?
Yes, industrial-grade design ensures stability under vibration and shock.
Does it support both analog and digital signals?
Yes, the cables are engineered for mixed-signal transmission.
Can it be mounted in compact control panels?
Yes, the 4 TE footprint allows installation in space-limited setups.
Are the cables shielded?
Yes, shielding minimizes electromagnetic interference.
How long are the cables?
Standard length varies by order; custom lengths can be provided.
Is maintenance easy?
Yes, plug-and-play connectors simplify replacement and extension.
What materials are used?
Industrial-grade plastics and metals ensure durability and compliance with safety standards.
