Introduction

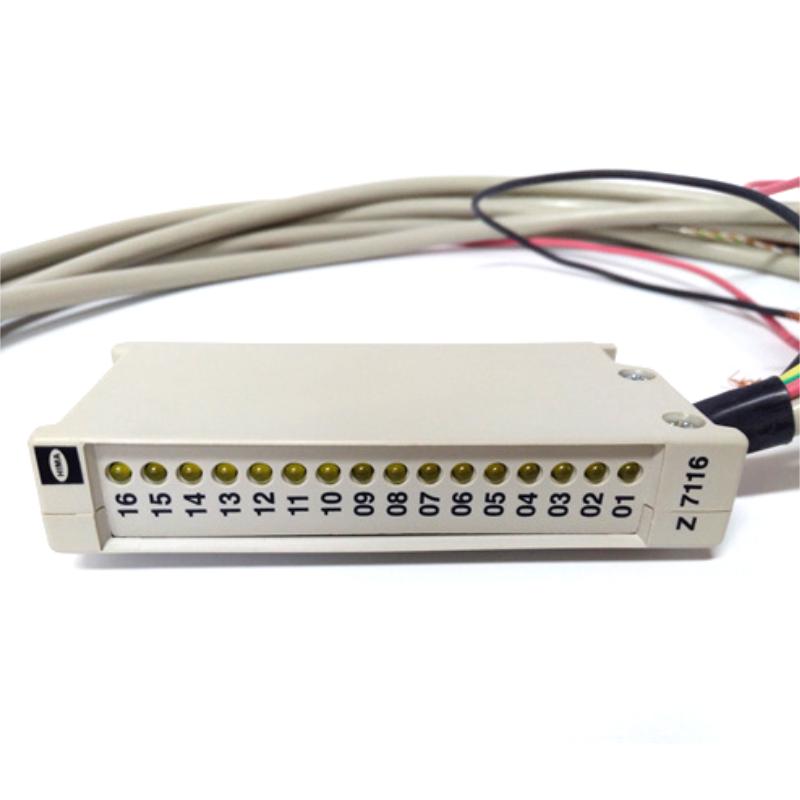

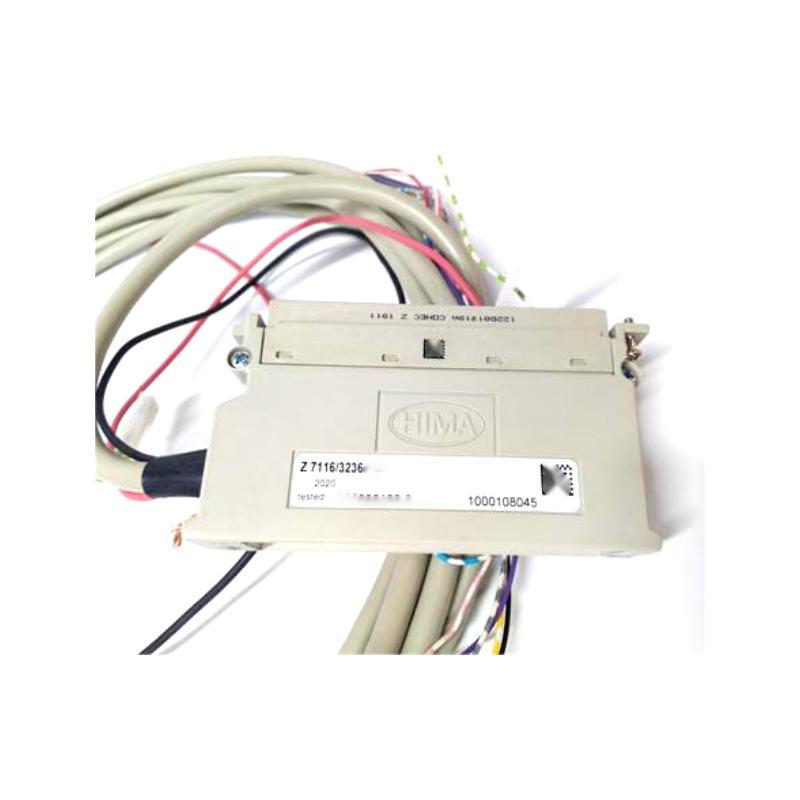

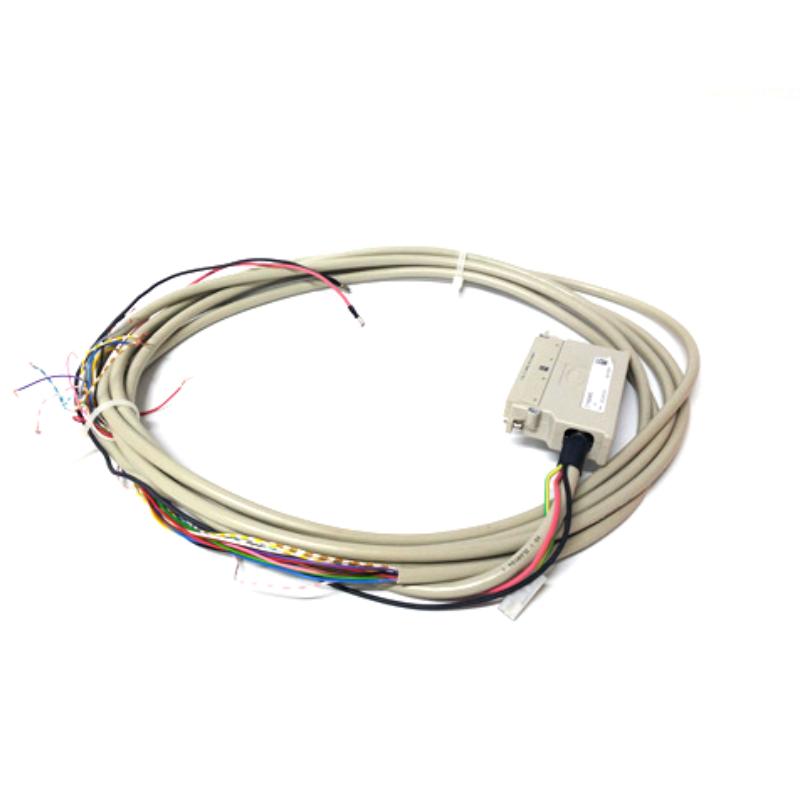

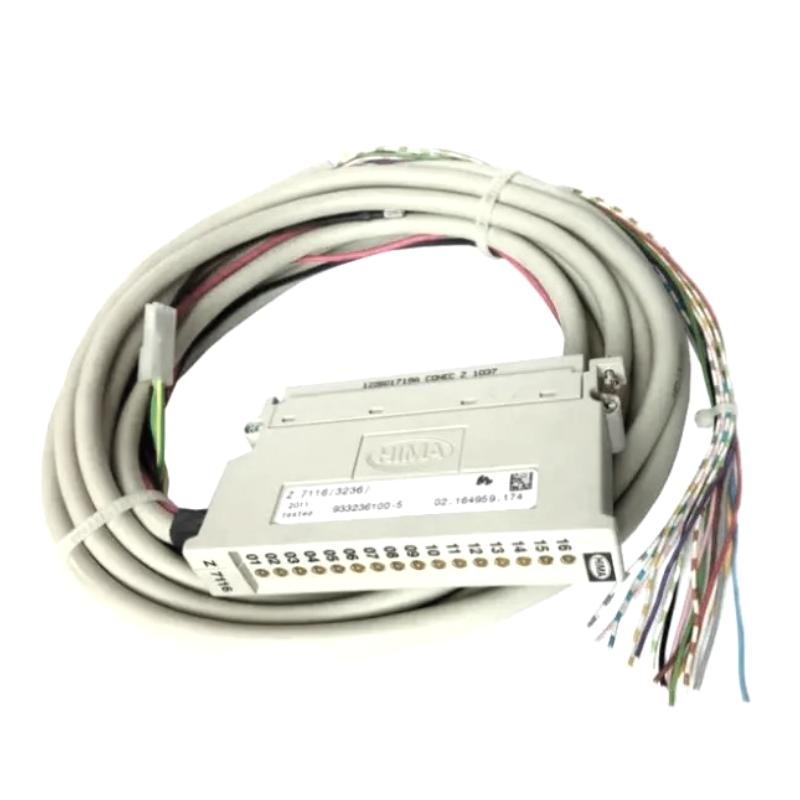

The HIMA Z7116 Industrial Computer Cables deliver reliable and space-efficient connectivity for industrial automation systems. With a compact 4 TE footprint, they are ideal for high-density rack and panel installations. Designed to withstand industrial vibrations, dust, and moderate temperature variations, these cables ensure uninterrupted data transmission in SIL 3-compliant safety networks. Fully compatible with HIQuad and HIMA modular systems, Z7116 cables streamline installations, reduce downtime, and provide a dependable solution for industrial connectivity.

Technical Specifications

Specification	Details
Space Requirement	4 TE
Shipping Weight	3 kg (6.61 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital & Analog
Compatibility	HIQuad and HIMA modular systems
Mounting	Panel or rack
Construction Material	Industrial-grade metals & plastics
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA Z7116 Industrial Computer Cables are designed for robust connectivity in demanding industrial environments where space efficiency and reliability are essential. Typical applications include:

Connecting industrial computers to HIQuad and other HIMA modular systems.
Panel and rack-mounted automation systems in energy, chemical, and manufacturing plants.
SIL 3-compliant safety systems requiring dependable data transmission.
High-density industrial cabinets where space optimization is critical.
Maintenance or replacement of existing cabling in operational control systems.

Advantages

The Z7116 cables combine industrial-grade durability with flexibility and compact design:

Space-Efficient Design: Only 4 TE required, suitable for high-density racks.
Reliable Connectivity: Ensures uninterrupted transmission of both digital and analog signals.
Industrial-Grade Durability: Resistant to vibration, dust, and temperature variations.
Easy Installation: Plug-and-play connectors reduce setup and maintenance time.
Full Modular Compatibility: Works seamlessly with HIQuad systems and HIMA modular components.

Technical FAQs

What does 4 TE refer to?
It indicates the width the cable occupies in terminal units for rack installation.
Can Z7116 be used in SIL-rated systems?
Yes, it supports SIL 3-compliant safety networks.
What is the operating temperature range?
Designed to operate from -20°C to 70°C.
Is it suitable for high-vibration environments?
Yes, the cable is industrial-grade and vibration-resistant.
Does it carry both analog and digital signals?
Yes, engineered for mixed-signal applications.
Can it be used in compact control panels?
Yes, the 4 TE design allows installation in space-limited setups.
Are the cables shielded?
Yes, shielding ensures minimal electromagnetic interference.
How is it mounted?
Suitable for panel or rack-mounted installation.
Is maintenance easy?
Yes, plug-and-play connectors allow quick replacement or extension.
What materials ensure durability?
Industrial-grade metals and plastics provide resistance to wear, corrosion, and environmental stress.
