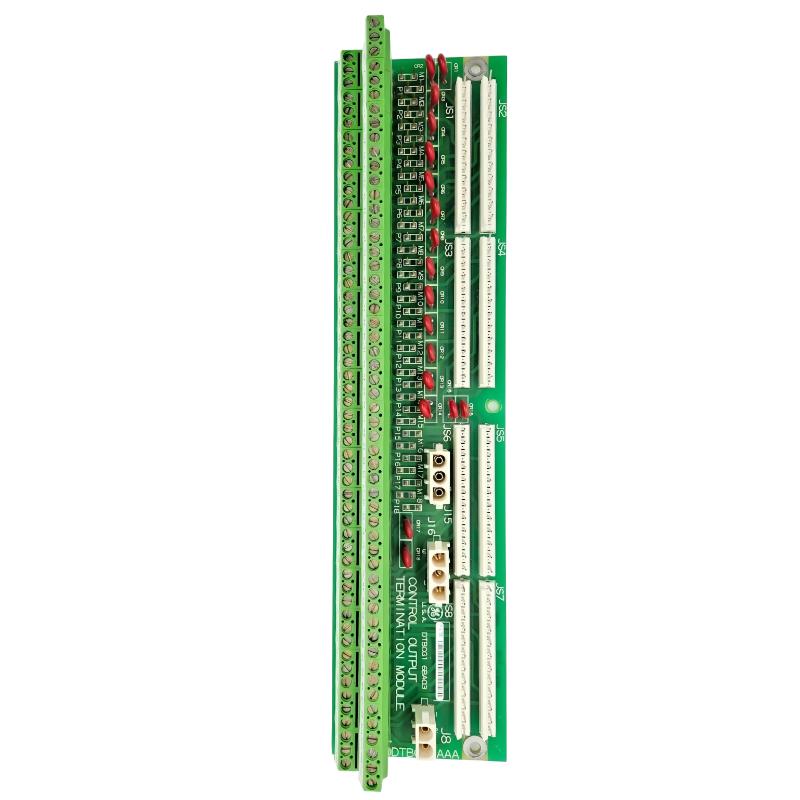

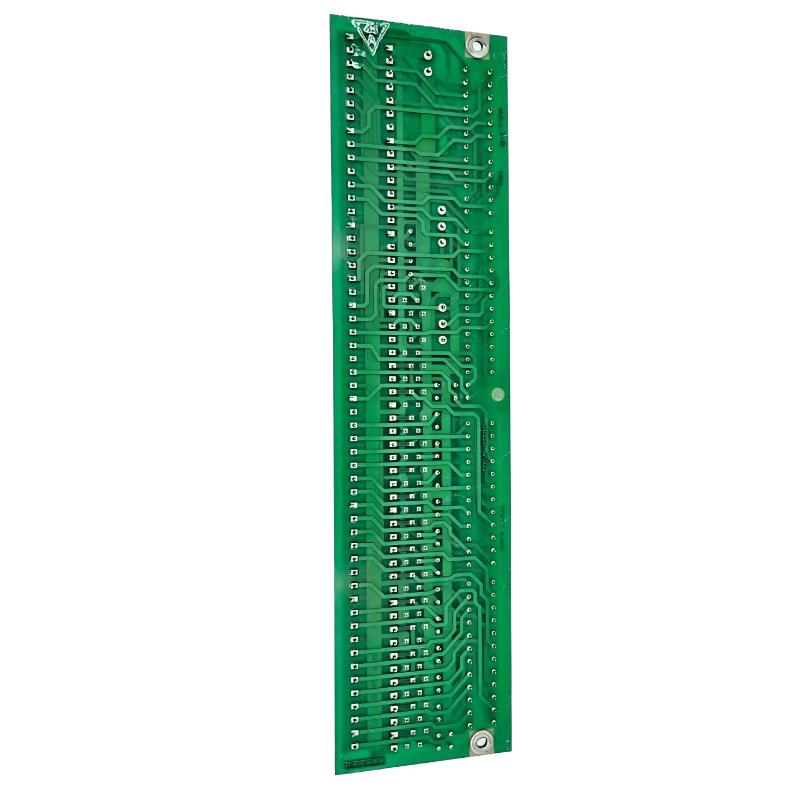

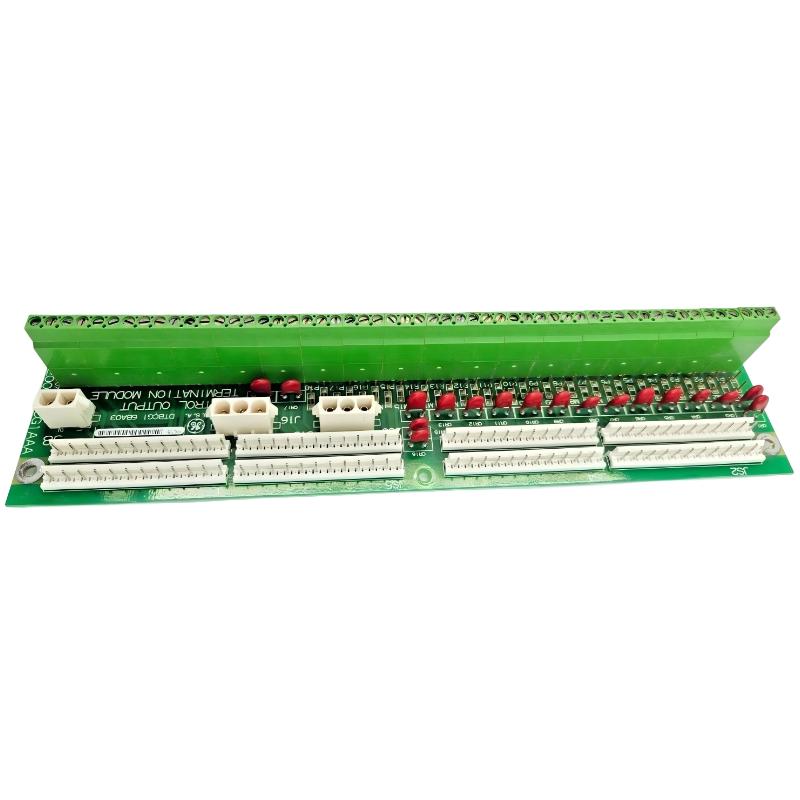

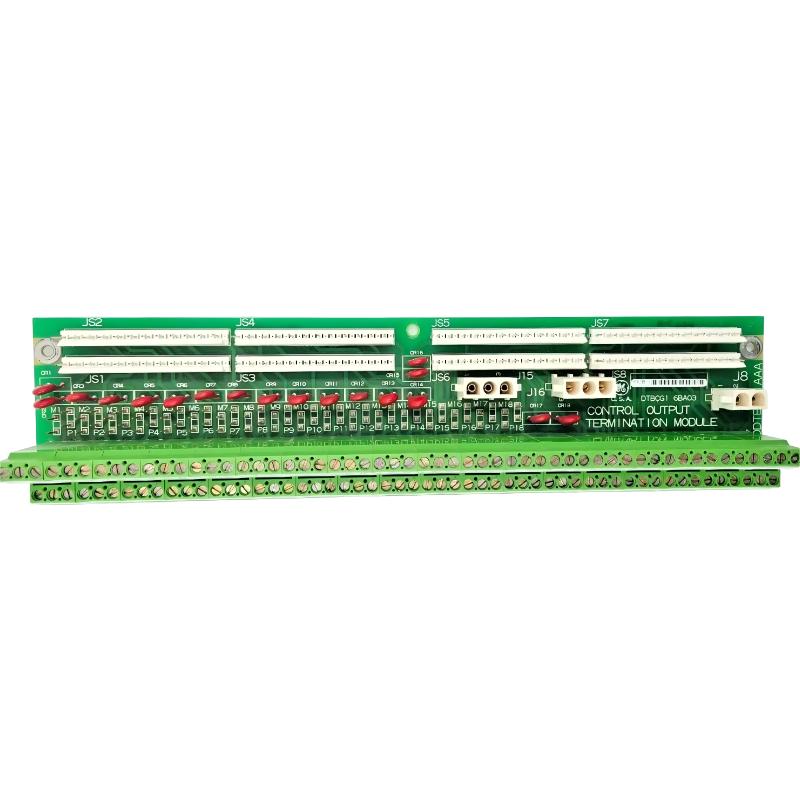

The GE DS200DTBCG1AAA is a Contact Output Termination Module developed for the GE Mark V Speedtronic turbine control system. It serves as a critical interface between relay output boards and field devices, enabling reliable signal termination and distribution for turbine control operations.
This module is engineered to handle high-density relay outputs and solenoid control signals, making it indispensable in applications where accurate switching and dependable signal routing are required for safe turbine performance.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200DTBCG1AAA |
| Series | Mark V Speedtronic |
| Product Type | Contact Output Termination Module |
| Functional Acronym | DTBC |
| Function | Relay output termination & signal distribution |
| Terminal Blocks | 2 blocks (110 signal terminals each) |
| Total Wiring Capacity | Up to 220 signal wires |
| Connectors | 2 × 3-plug + 1 × 2-plug connectors |
| Jumpers | 10 configurable jumpers |
| Relay Support | Up to 30 relay outputs (varies by configuration) |
| Output Types | Dry contacts & 125 VDC solenoid outputs |
| Key Interfaces | JS1–JS8 (TCRA relay signals), J15/J16 (125 VDC outputs) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 148 × 103 × 32 mm |
| Weight | approx. 0.24 – 0.45 kg |
| Mounting Type | Rack / panel-mounted PCB |
Its high wiring density and flexible configuration make it ideal for complex turbine control panels requiring organized and reliable output termination.
Recommended Related Models
- GE DS200DTBCG1 Contact Output Module (base version)
- GE DS200TCRAG1ACC Relay Output Board
- GE DS200TCDAH1BGD Digital I/O Board
- GE DS200TCCBG1BED Analog I/O Processor Board
- GE DS200TCPSG1AME Power Supply Module
These modules work together to provide complete signal processing, control logic, and actuation within Mark V systems.
