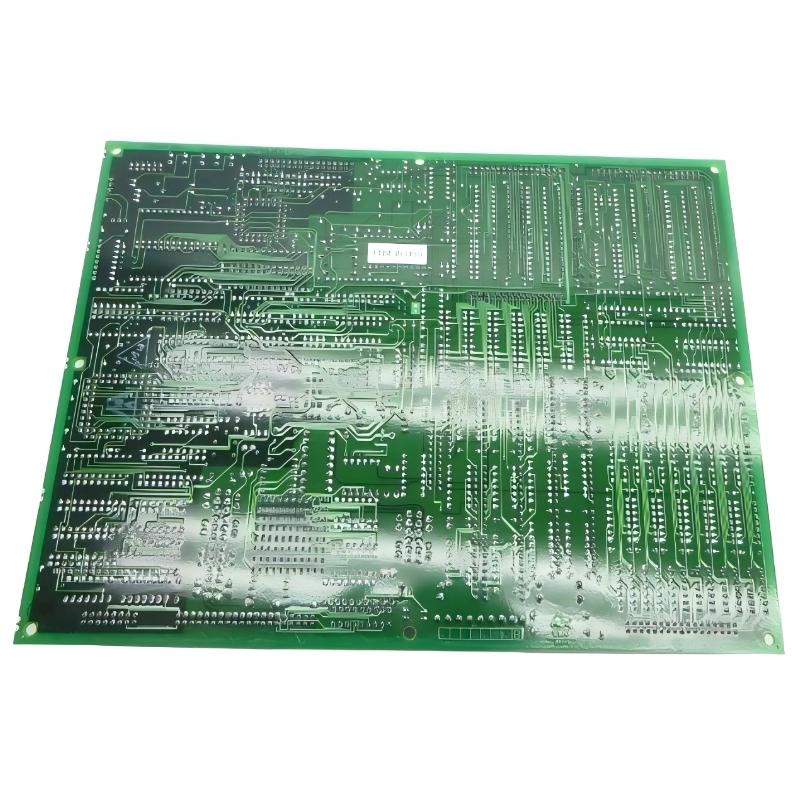

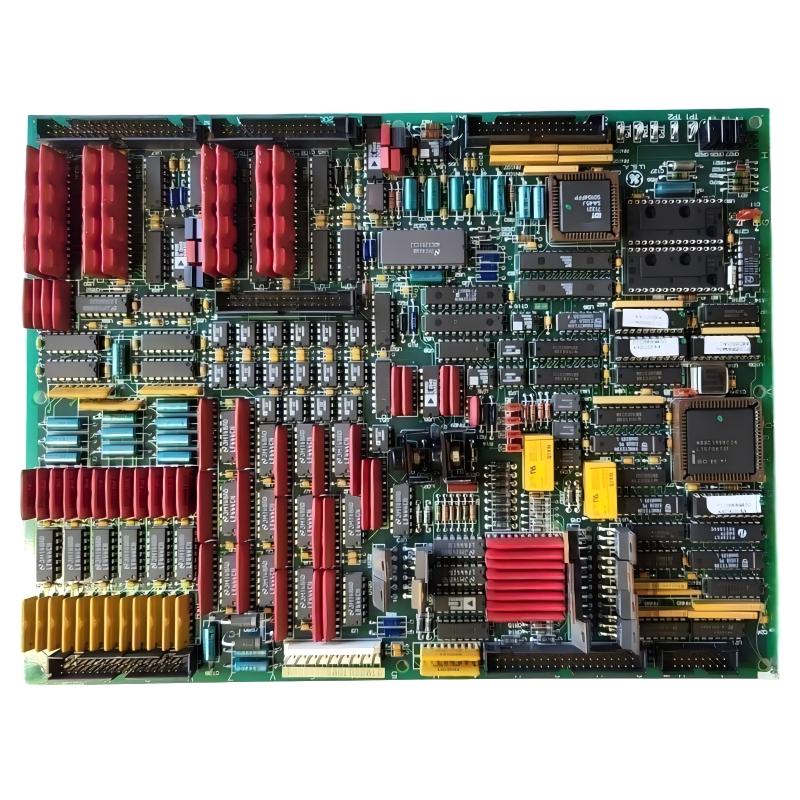

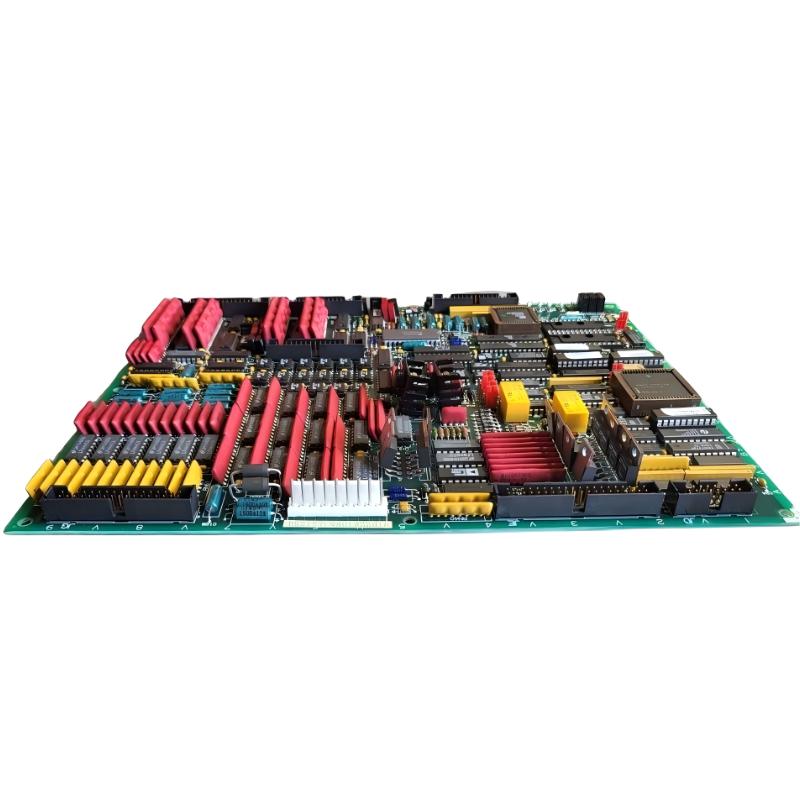

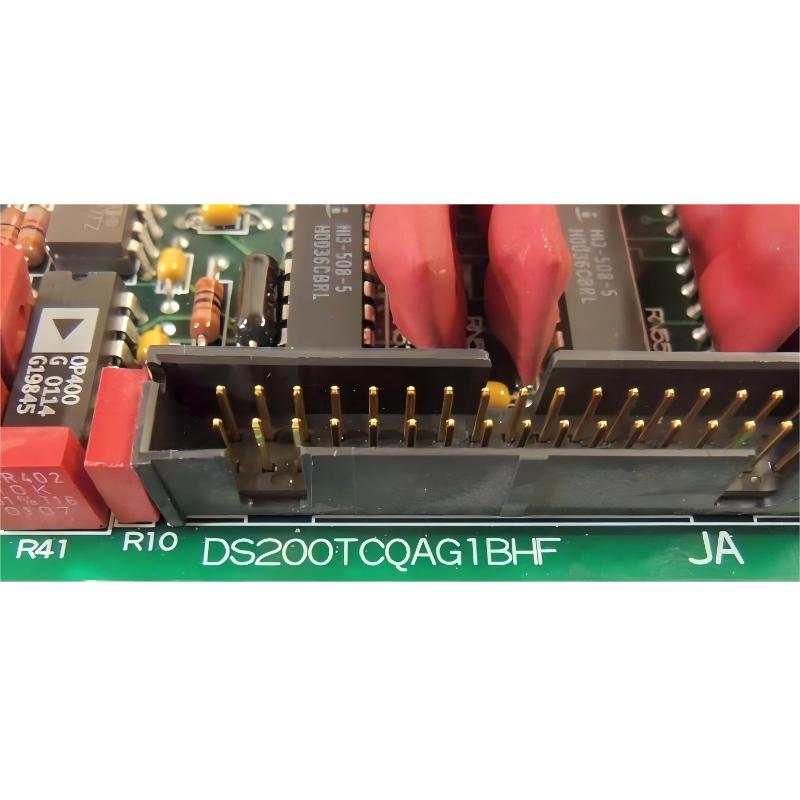

The GE DS200TCQAG1BHF is an Analog I/O Processor Board designed for the GE Mark V Speedtronic turbine control system. It acts as a central processing layer for analog signals, ensuring accurate data acquisition, conversion, and communication between field instrumentation and the control processor.
Built for high-performance industrial environments, this module delivers precise signal handling, fast response time, and stable integration, making it essential for maintaining optimal turbine efficiency and system reliability.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200TCQAG1BHF |
| Series | Mark V Speedtronic |
| Product Type | Analog I/O Processor Board |
| Functional Acronym | TCQA |
| Function | Analog signal processing & system interfacing |
| Processor | Embedded microprocessor with EPROM firmware |
| Supported Signals | 4–20 mA, voltage inputs, analog feedback signals |
| Interfaces | Multi-pin connectors + ribbon cable interfaces |
| Configuration | Hardware jumpers + firmware settings |
| Diagnostics | LED indicators and onboard test points |
| System Integration | Interfaces with terminal boards (TBCB / TBCA / TBQA) |
| Communication | Internal Mark V I/O bus |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 160 × 160 × 100 mm |
| Weight | approx. 0.6 – 0.9 kg |
| Mounting Type | Rack-mounted PCB module |
The board is optimized for high-density signal processing while maintaining excellent electrical isolation and noise immunity.
Recommended Related Models
- GE DS200TCQCG1BFE Analog I/O Processor Board
- GE DS200TCQBG1BBA Extended Analog I/O Board
- GE DS200TCCBG1BED Analog Processing Board
- GE DS200TBCBG1AAA RTD Input Termination Board
- GE DS200TBCAG1AAB Analog Terminal Board
These modules work together to form a complete analog acquisition and processing architecture within Mark V systems.
