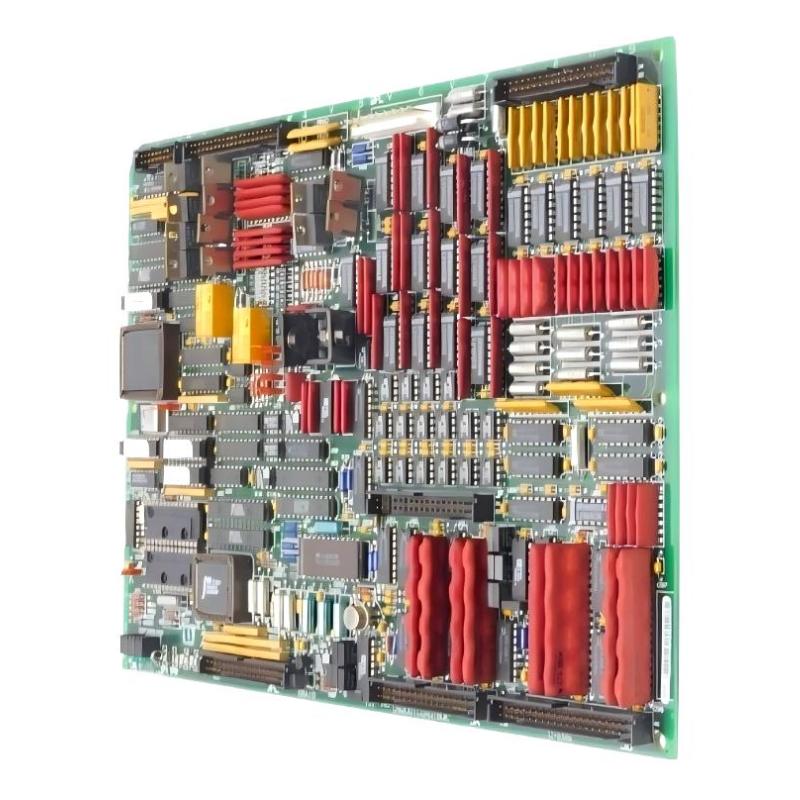

The GE DS200TCQAG1BGE is a refined Analog I/O Processor Board engineered for the GE Mark V Speedtronic control system. Positioned as a key signal-processing unit, it handles real-time analog data from field instruments and converts it into precise control inputs for turbine operation.
With its optimized architecture, this module delivers consistent signal accuracy, rapid processing capability, and dependable system communication, making it an essential component for maintaining high-efficiency turbine performance in demanding industrial environments.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200TCQAG1BGE |
| Series | Mark V Speedtronic |
| Product Type | Analog I/O Processor Board |
| Functional Acronym | TCQA |
| Core Function | Analog signal processing & control interface |
| Processor | Embedded microprocessor with EPROM firmware |
| Supported Signals | 4–20 mA, voltage, analog feedback signals |
| Interfaces | Multi-pin connectors + ribbon cable interfaces |
| Configuration | Hardware jumpers + firmware settings |
| Diagnostics | LED indicators and onboard test points |
| Communication | Internal Mark V I/O bus |
| System Integration | Compatible with TBCB, TBCA, TBQA terminal boards |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 160 × 160 × 105 mm |
| Weight | approx. 0.7 – 0.95 kg |
| Mounting Type | Rack-mounted PCB module |
Its balanced design ensures high signal integrity while maintaining excellent resistance to electrical interference and environmental stress.
Recommended Related Models
- GE DS200TCQAG1BEC Analog I/O Processor Board
- GE DS200TCQAG1BHF Advanced Analog Processor Board
- GE DS200TCQCG1BJF Analog Processing Module
- GE DS200TBCBG1AAA RTD Input Termination Board
- GE DS200TCCBG1BED Analog Processing Board
These modules are typically integrated to form a comprehensive analog signal processing system within Mark V platforms.
