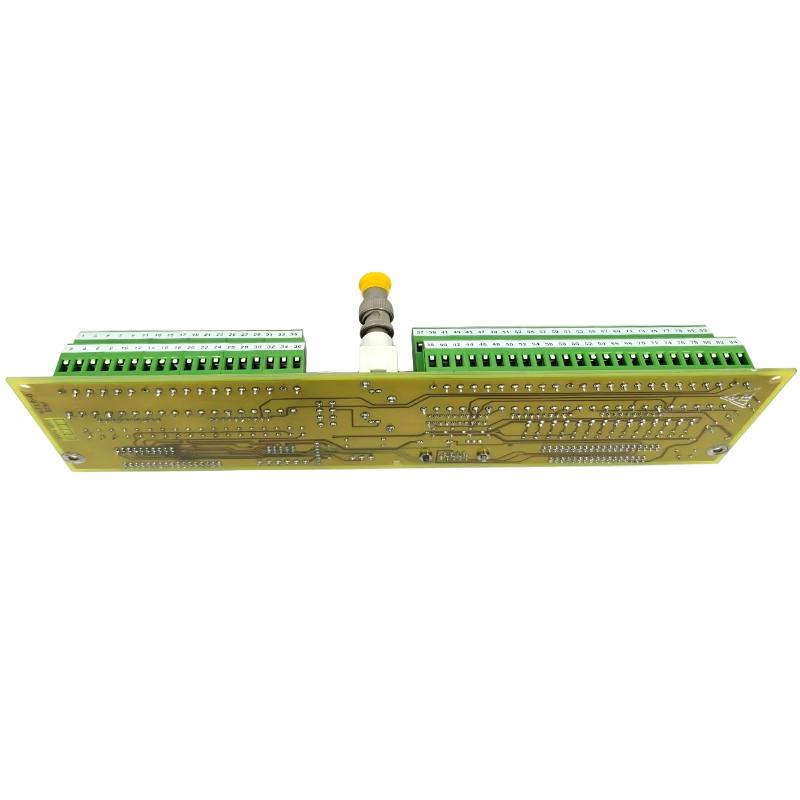

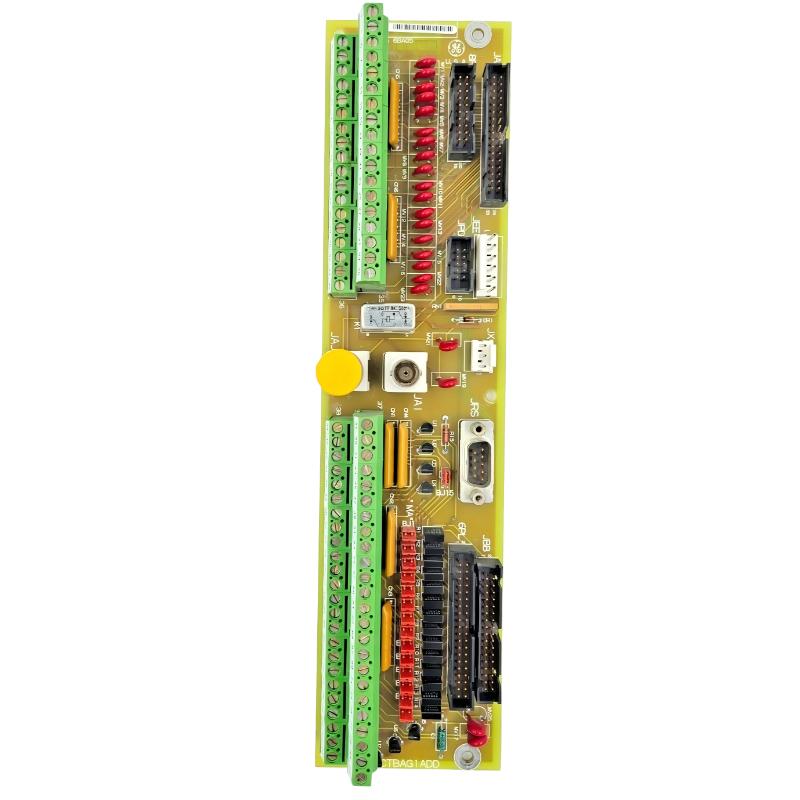

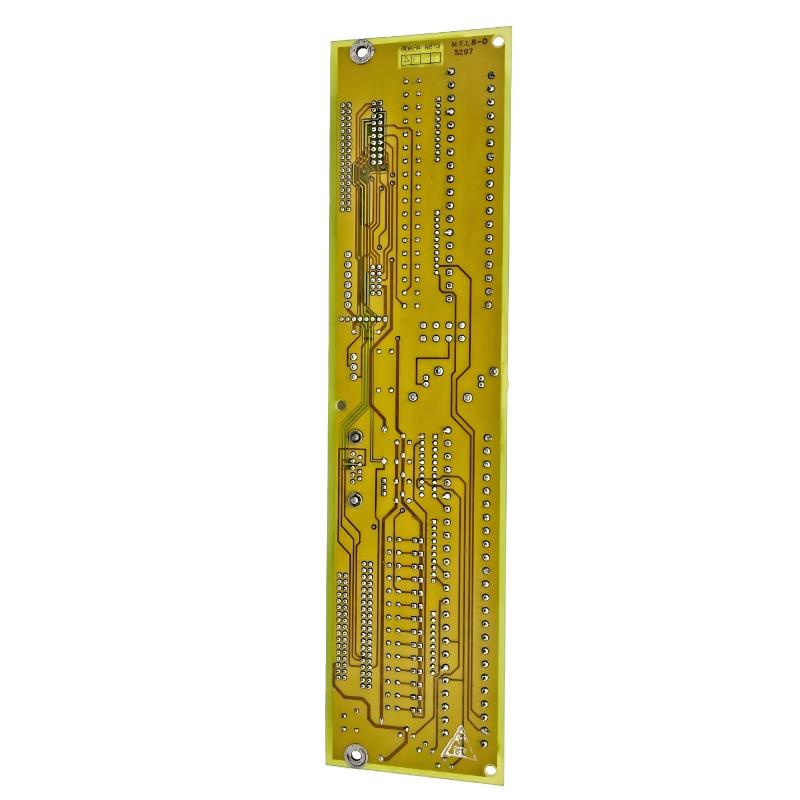

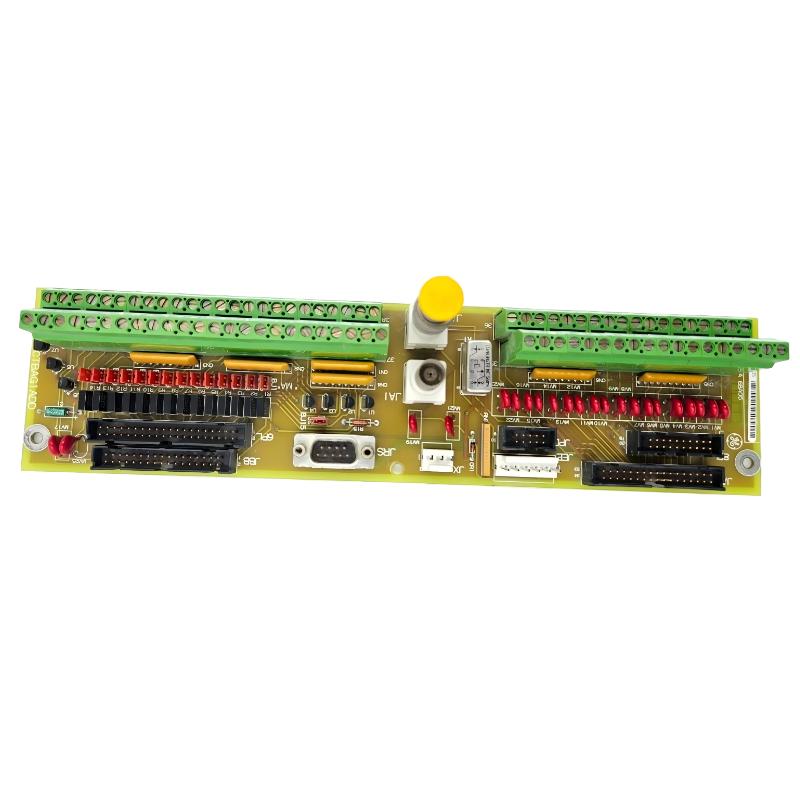

The GE DS200CTBAG1ADD is an Analog Termination Board designed for the GE Mark V Speedtronic turbine control system. It functions as a high-density signal interface module, responsible for organizing, routing, and terminating analog and discrete control signals between field wiring and internal control electronics.
Engineered for complex turbine environments, this module ensures stable signal integrity, efficient wiring management, and reliable communication across control cores, making it a key structural component in GE’s legacy turbine automation architecture.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200CTBAG1ADD |
| Series | Mark V Speedtronic |
| Product Type | Analog Termination Board |
| Functional Role | Signal termination & interface distribution |
| System Location | Mark V control core cabinet |
| Core Interface | COREBUS connectors (JAI / JAJ) (turn0search4) |
| Terminal Strips | Dual high-density terminal blocks (turn0search4) |
| Signal Support | Analog + discrete input/output routing |
| Internal Components | MOVs, resistors, relays, jumper switches (turn0search4) |
| Connectors | Multiple pin headers + serial interface |
| Configuration | Hardware jumper settings |
| Protection | Electrical isolation + surge suppression |
| Operating Temperature | -40°C to +70°C (turn0search5) |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 330 × 200 × 100 mm (turn0search4) |
| Weight | approx. 2.0 kg (turn0search4) |
| Mounting Type | Rack-mounted termination panel module |
Its long-form design is optimized for high-density wiring environments commonly found in turbine control cabinets.
Recommended Related Models
- GE DS200DTBCG1AAA Contact Output Termination Module
- GE DS200TCRAG1ACC Relay Output Board
- GE DS200TCDAH1BGD Digital I/O Board
- GE DS200TCQBG1BBA Analog Expansion Board
- GE DS200TCPSG1AME Power Supply Module
These modules collectively form the signal routing, power distribution, and control backbone of GE Mark V systems.
