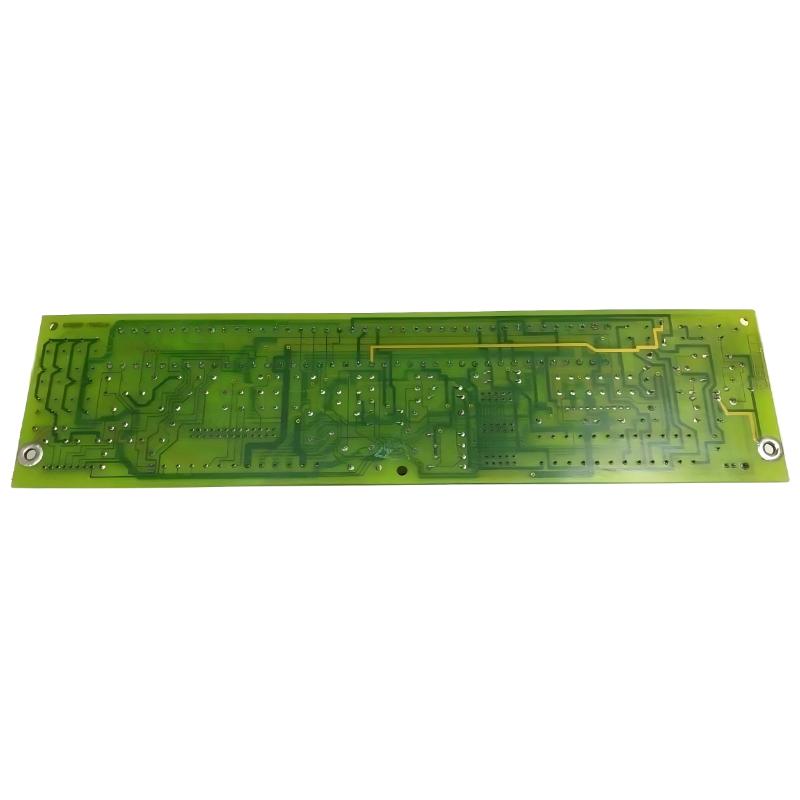

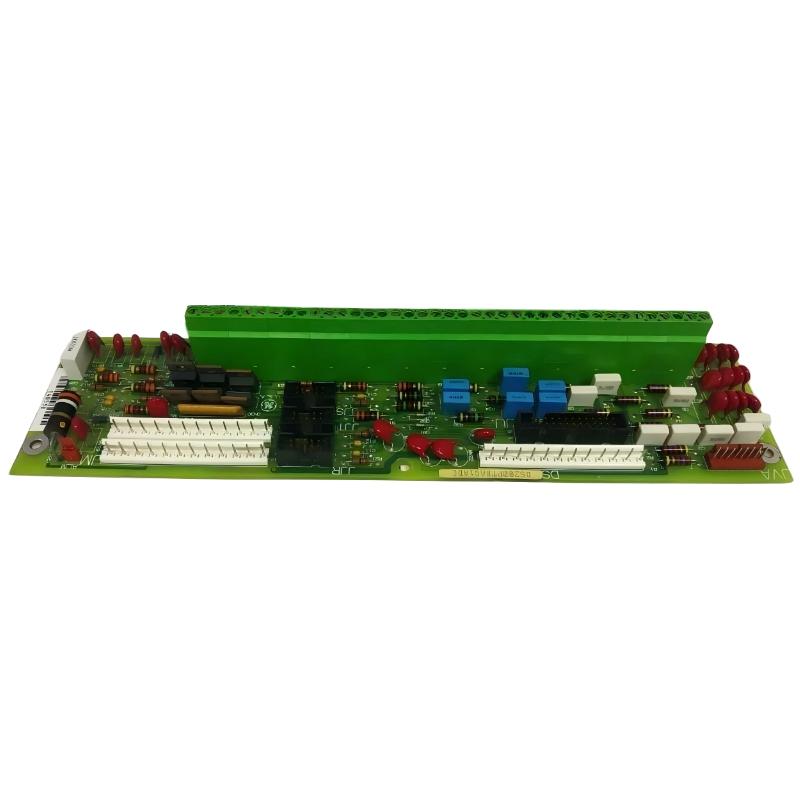

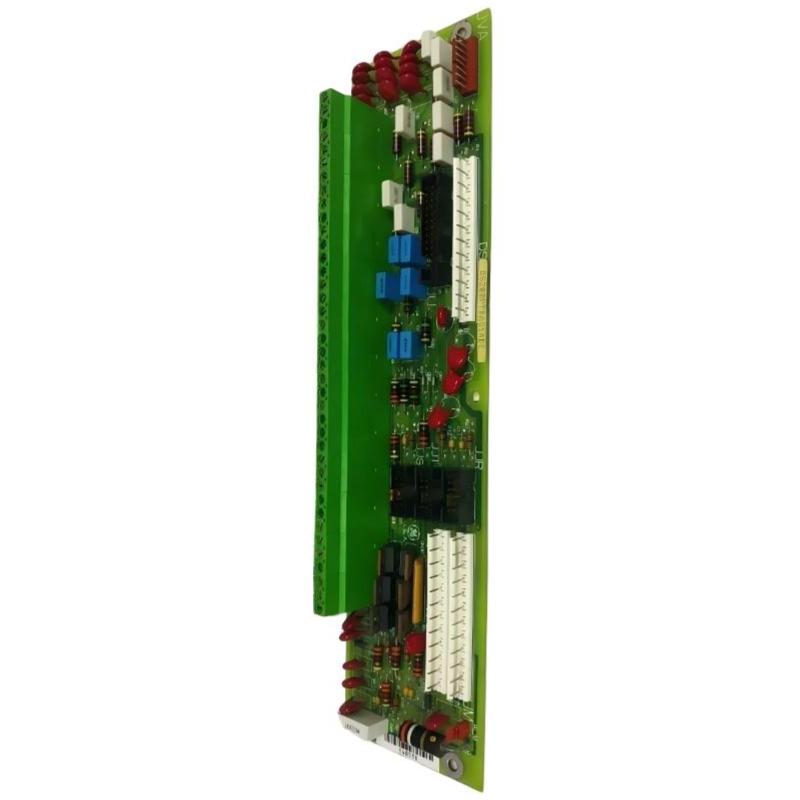

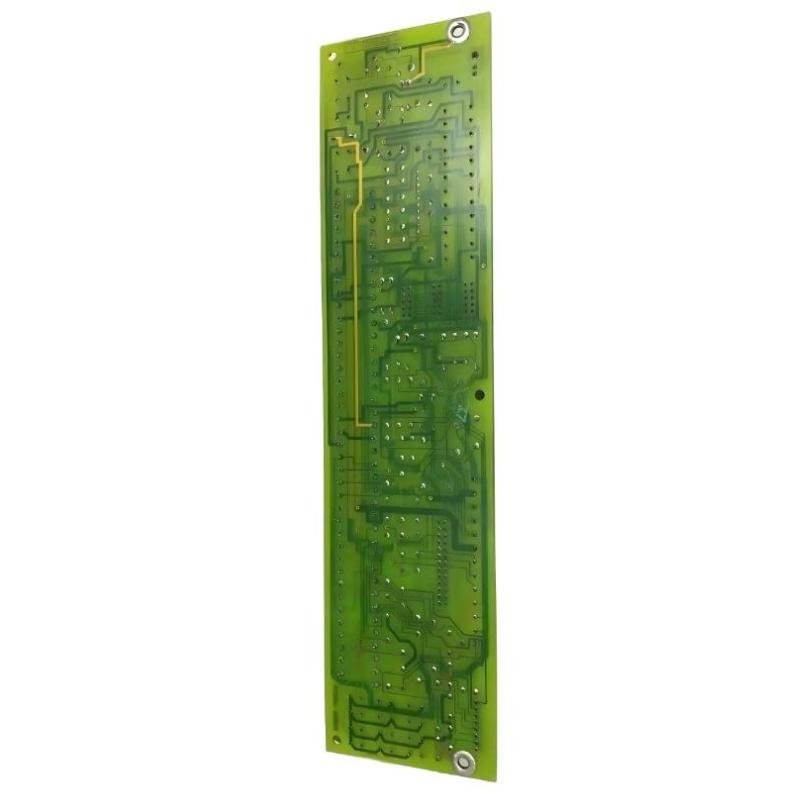

The GE DS200PTBAG1AEC is a Contact Termination Board designed for the GE Mark V Speedtronic turbine control system. It serves as a centralized interface for organizing and terminating a large number of field wiring signals, ensuring stable communication between external instrumentation and internal control modules.
This board is essential in turbine automation architectures where high-density signal routing, electrical organization, and reliable connection integrity are critical for safe and efficient operation.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | DS200PTBAG1AEC |
| Series | Mark V Speedtronic |
| Product Type | Contact / Signal Termination Board |
| Function | Signal termination & wiring distribution |
| Terminal Blocks | 2 × high-density blocks (72 terminals each) |
| Total Signal Capacity | Up to 144 signal wire connections |
| Connectors | 3 × 10-pin connectors + multiple signal posts |
| System Interface | GE Mark V turbine control system |
| Mounting | Rack-mounted panel board |
| Material | Industrial-grade PCB with protective coating |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 3 in × 11.5 in (≈ 330 × 200 mm class) |
| Weight | approx. 1.0–2.0 kg (variant dependent) |
The design prioritizes structured wiring management, reducing complexity in turbine control cabinets.
