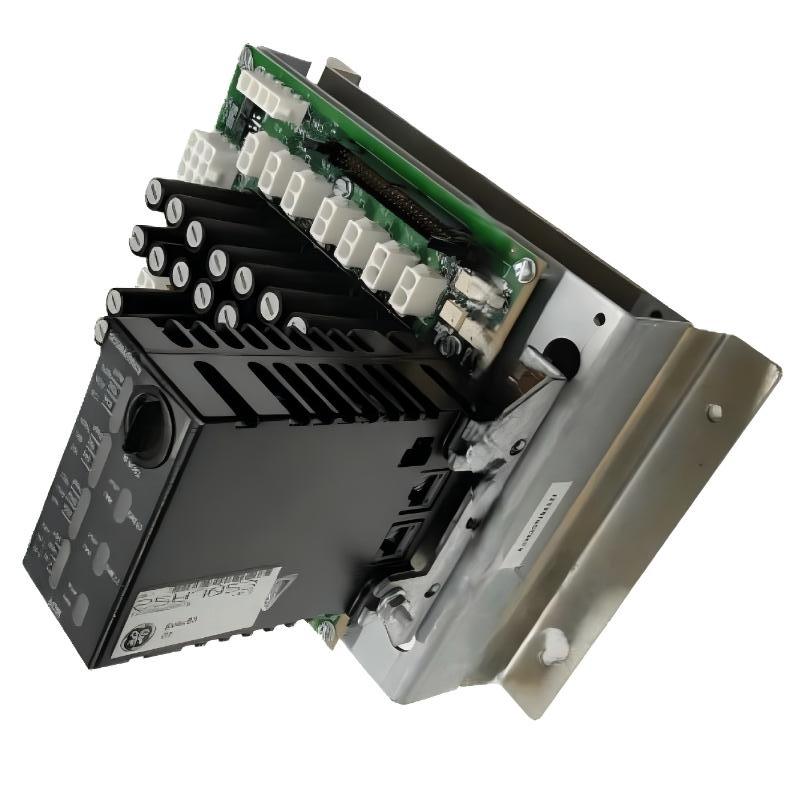

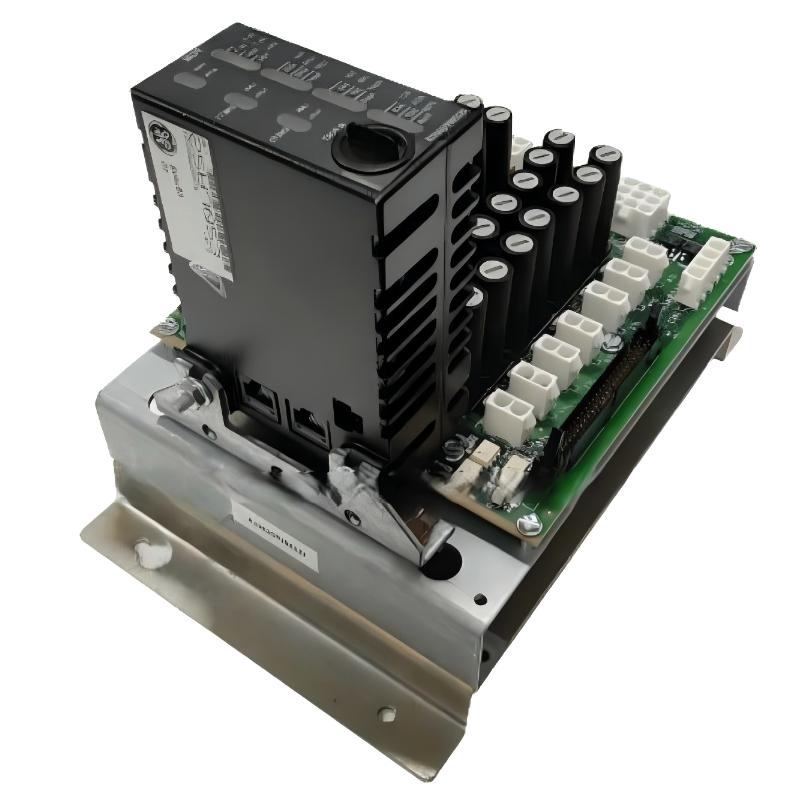

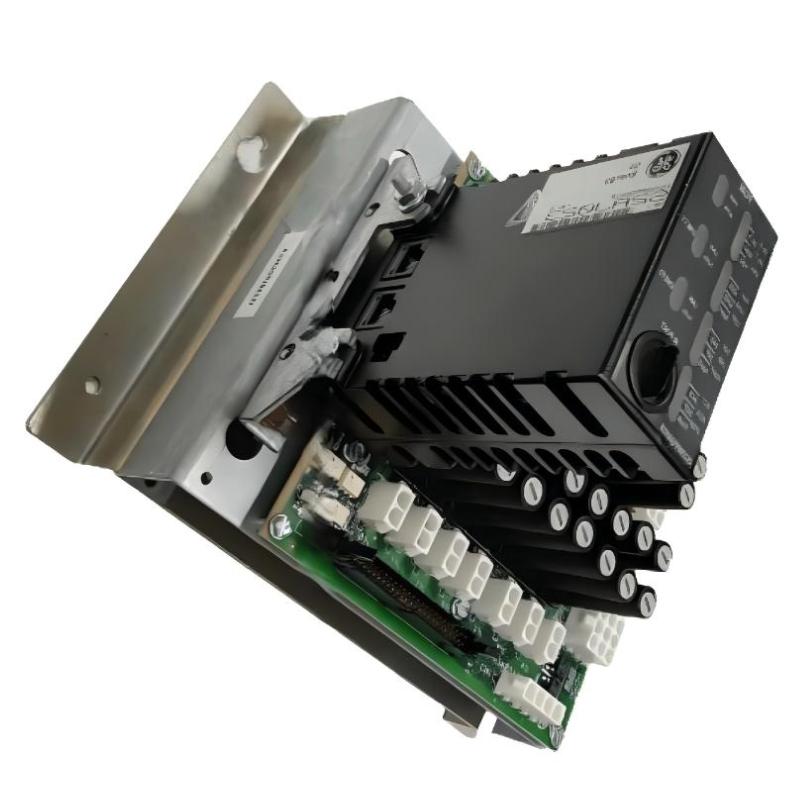

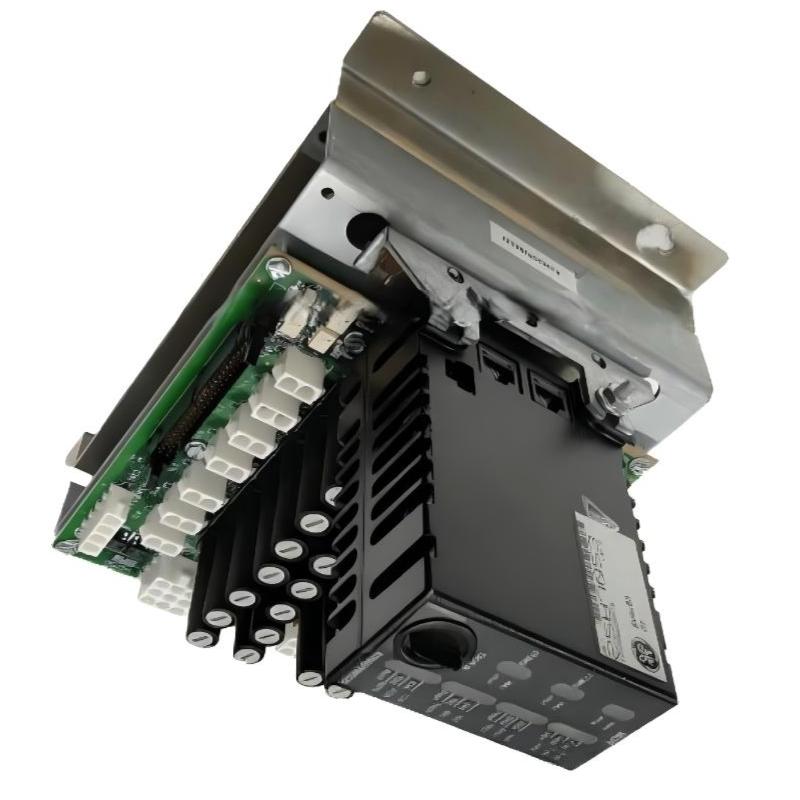

The GE IS230JPDGH1A (also referenced as IS200JPDGH1ABC) is a Power Distribution Module used in GE Mark VIe turbine control systems. It is designed to manage and distribute 28V DC control power and wetting power to multiple I/O packs and control boards inside the turbine cabinet.
This module acts as a central energy hub within the control architecture, ensuring that every subsystem receives stable and protected power. Its design focuses on redundancy, electrical stability, and high system availability, which are essential in modern power generation environments.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric (GE) |
| Model | IS230JPDGH1A / IS200JPDGH1ABC |
| Series | Mark VIe |
| Product Type | Power Distribution Module (PDM) |
| Function | DC power distribution & monitoring |
| Input Voltage | 28 V DC nominal (dual redundant inputs) (turn0search2) |
| Output Power | 24V / 48V wetting power + 28V control power (turn0search2) |
| Redundancy | Dual diode-isolated DC inputs |
| System Interface | Mark VIe distributed control system |
| Mounting Type | DIN rail / cabinet-mounted module |
| Monitoring | Power status & distribution diagnostics |
| Operating Temperature | -30°C to +65°C (turn0search10) |
| Storage Temperature | -40°C to +85°C |
| Dimensions | approx. 178 × 330 × 160 mm (turn0search2) |
| Weight | approx. 0.38–2.2 kg (variant dependent) (turn0search2) |
This module is designed to deliver stable power distribution while maintaining protection against electrical faults and supply interruptions.
Recommended Related Models
- GE IS200JPDPG1A Power Distribution Module
- GE IS200JPDMG1A 28V DC Power Distribution Board
- GE IS230TDBTH2A PDIO Terminal Board
- GE IS230TBAOH2C Analog Output Terminal Board
- GE IS200TDBTH2ACD Discrete I/O Terminal Board
These modules collectively form the power, signal, and I/O backbone of GE Mark VIe turbine control systems.
