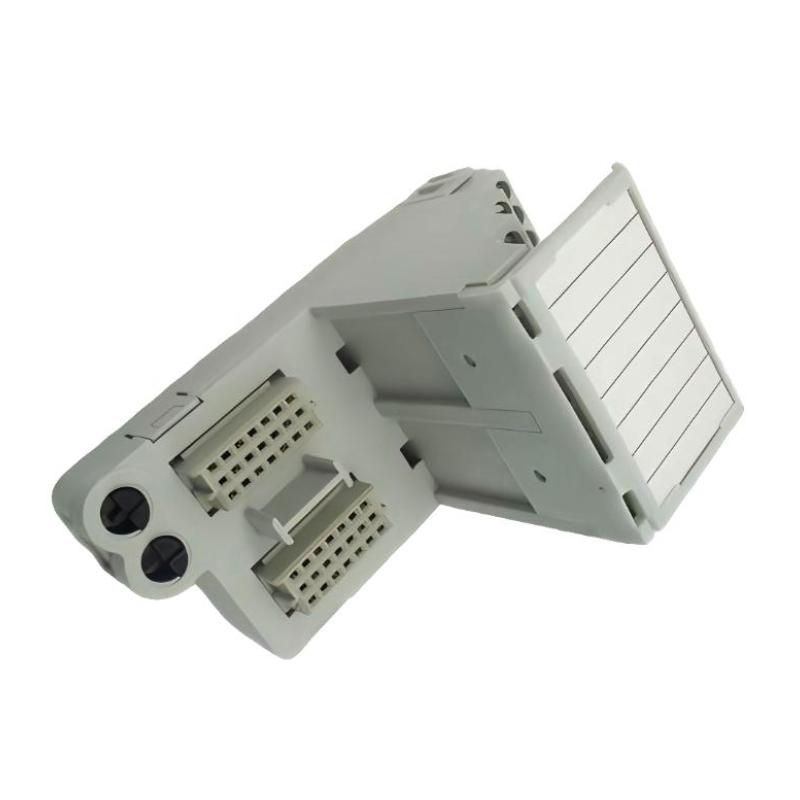

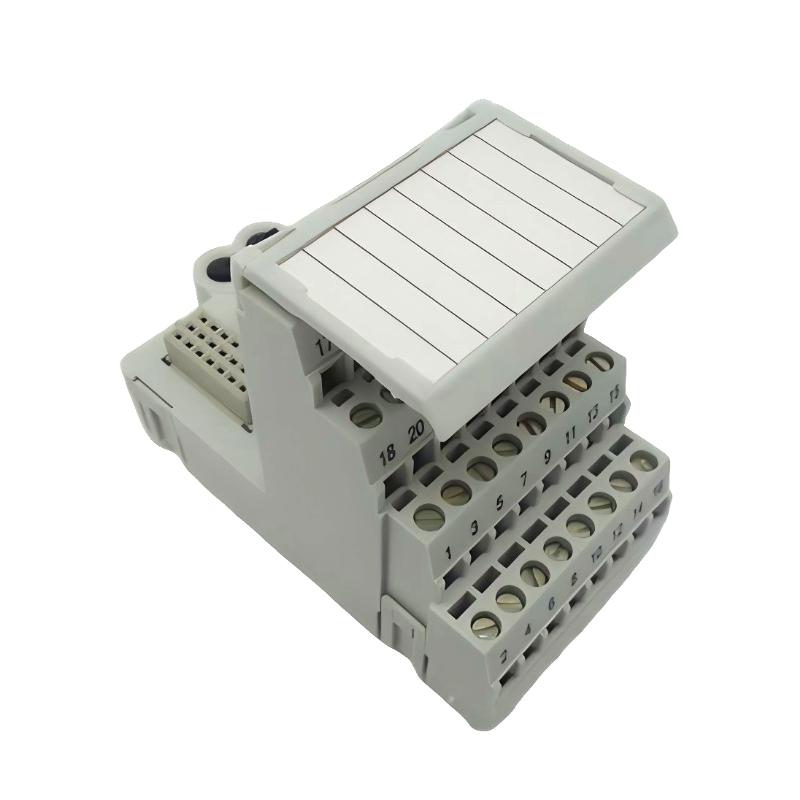

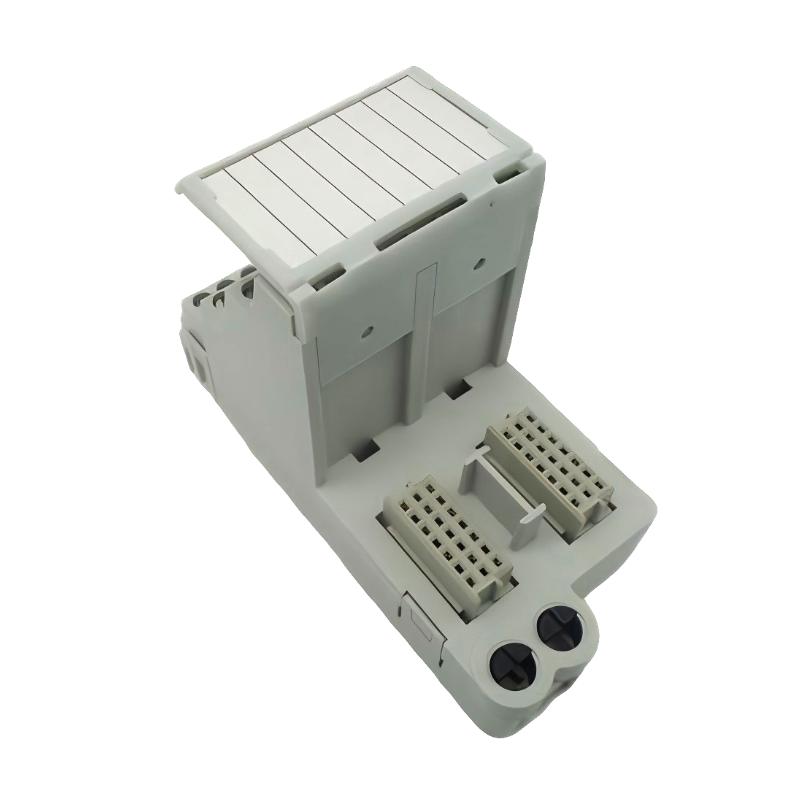

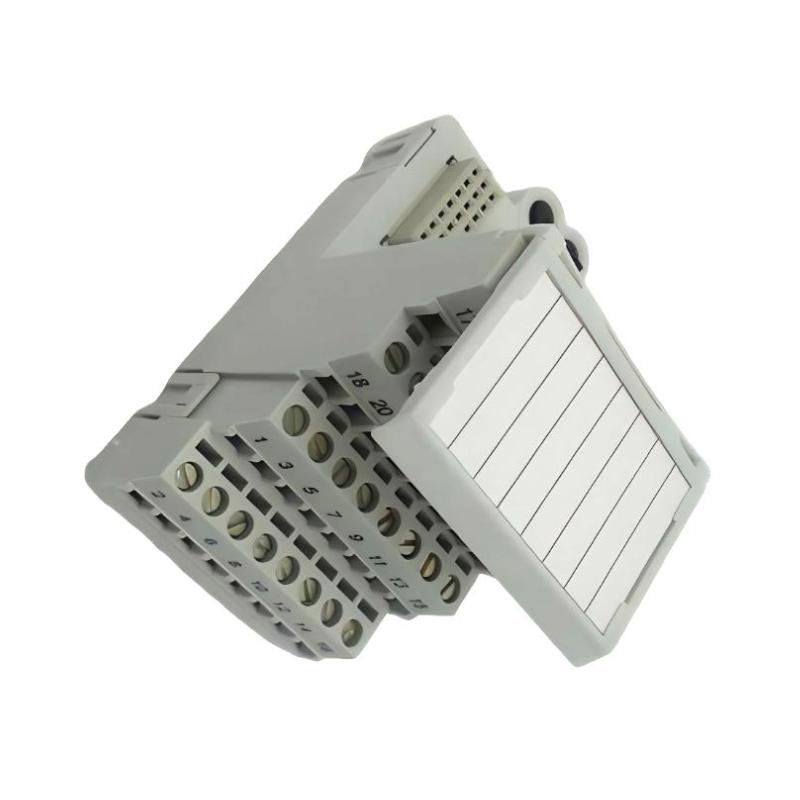

The GE 8612-FT-NA is a Field Terminal Module commonly used in GE / Emerson PAC8000 distributed control and safety I/O systems. It is designed to provide a safe, structured, and non-arcing interface between field wiring and I/O modules, enabling reliable signal termination in industrial automation environments.
This module is widely used in applications where high channel density, hazardous-area compliance, and fast replacement capability are required. Its modular design supports efficient cabinet wiring and simplifies maintenance in large-scale control systems.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | GE / Emerson (PAC8000 ecosystem) |
| Model | 8612-FT-NA |
| Product Type | Field Terminal Module |
| Function | 16-channel field signal termination |
| Channel Capacity | 16 channels (turn0search2) |
| Wiring Type | Screw clamp terminals |
| Max Voltage | Up to 250 V (turn0search2) |
| Max Current | 5 A per point (turn0search2) |
| Wire Range | 0.5–2.5 mm² (AWG 20–14) (turn0search2) |
| Hazardous Area Rating | Zone 2 / Class I Division 2 compliant design (turn0search2) |
| Design Type | Non-arcing field terminal (turn0search13) |
| Mounting | DIN rail / carrier mounted |
| Operating Temperature | -40°C to +70°C (turn0search2) |
| Supply | 24 VDC nominal |
| Dimensions | approx. 42 × 168 × 37 mm (turn0search2) |
| Weight | approx. 0.24 kg (turn0search2) |
This compact structure allows high-density wiring while maintaining safe electrical separation and system stability.
Recommended Related Models
- GE 8602-FT-ST Standard Field Terminal
- GE 8610-FT-NA Field Terminal Module
- GE 8611-FT-FU I/O Terminal Assembly
- GE PAC8000 DI/DO I/O Modules
- GE 8619-FT-MT Mass Termination Module
These modules are typically used together in PAC8000-based distributed control and safety systems.
Popular PAC8000 Field Interface Modules
- 8600 / 8610 / 8612 series field terminals
- PAC8000 discrete I/O modules
- Non-arcing hazardous-area terminal systems
- Distributed I/O carrier assemblies
- GE/Emerson safety instrumented system components
