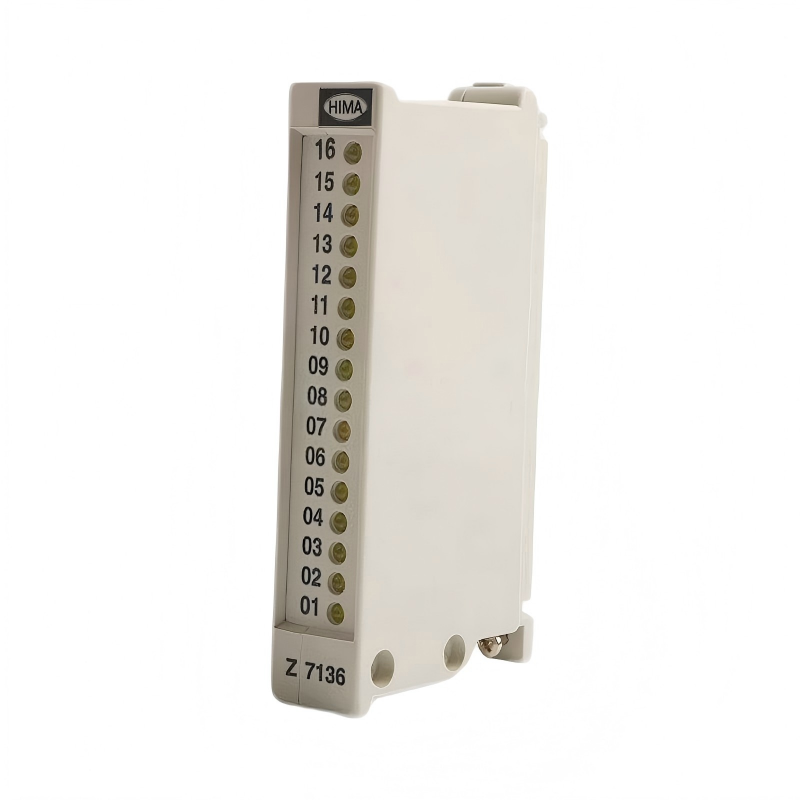

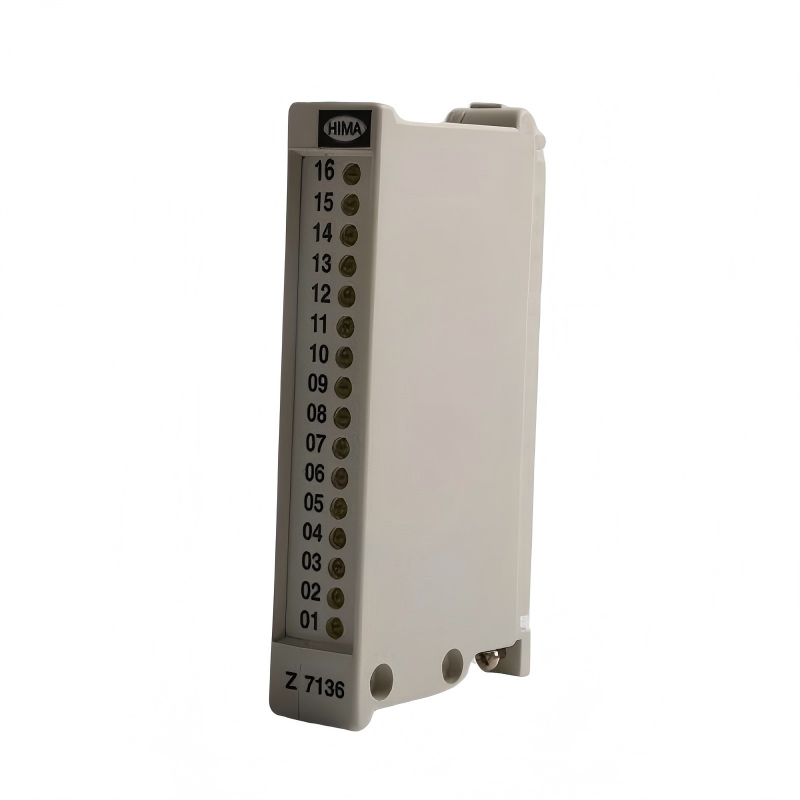

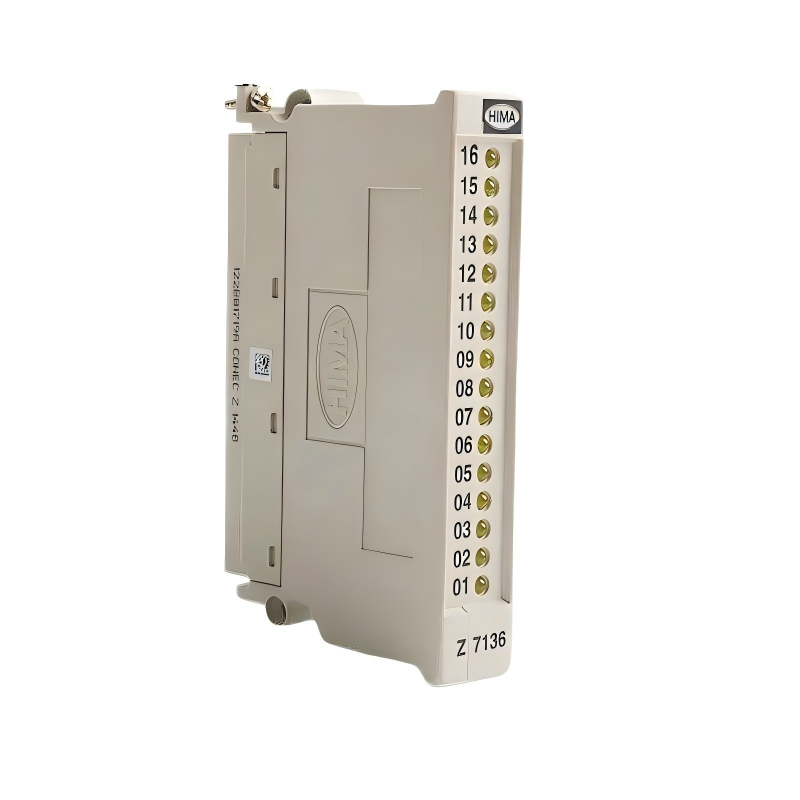

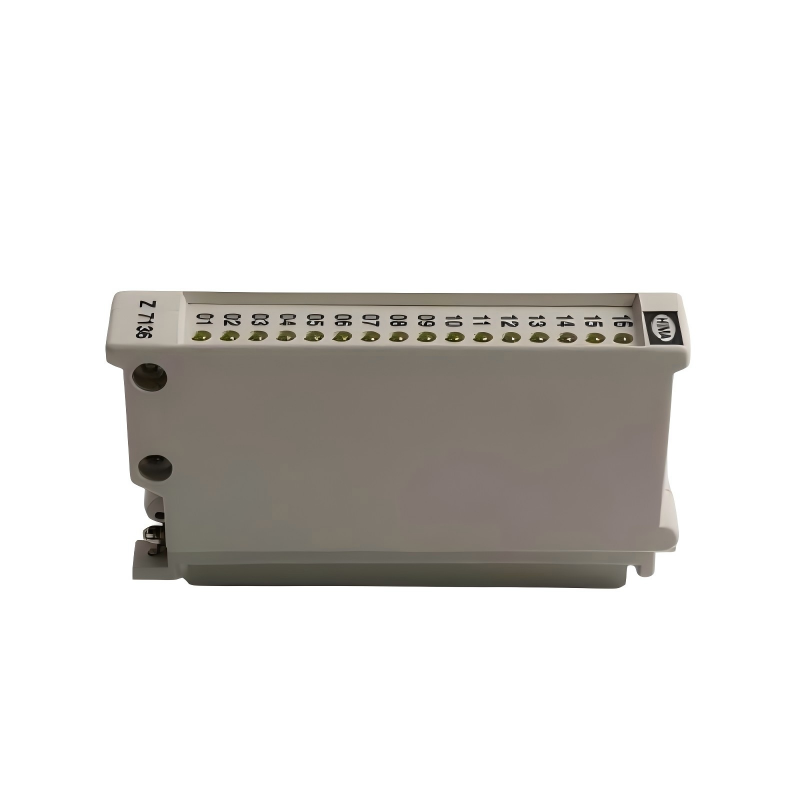

HIMA Z7136 Output Module

Applications

The HIMA Z7136 Output Module is engineered for precise, reliable control of output signals in demanding industrial automation systems. Typical applications include:

• Controlling actuators, relays, and signaling devices in HIQuad and HIMA modular systems.
• Integration into SIL 3-compliant safety networks for high-risk industrial processes.
• Panel and rack-mounted automation systems in chemical, energy, manufacturing, and transportation sectors.
• Replacement or expansion of industrial output modules in high-density cabinets.
• Industrial systems requiring rapid, accurate, and dependable output switching.

Advantages

The Z7136 Output Module combines reliability, compact design, and industrial durability:

• Space-Efficient Design: Occupies only 4 TE, ideal for high-density panel or rack installations.
• Reliable Signal Output: Ensures accurate and uninterrupted actuation of connected devices.
• Industrial-Grade Construction: Resistant to vibration, dust, and moderate temperature variations.
• Plug-and-Play Installation: Simplifies setup and reduces maintenance time.
• Seamless Integration: Fully compatible with HIQuad systems and HIMA modular components.

Technical FAQs

1. What does 4 TE indicate?
   It represents the width the module occupies in terminal units for panel or rack installation.
2. Can the Z7136 be used in SIL-rated systems?
   Yes, it supports SIL 3-compliant safety networks.
3. What is the operating temperature range?
   -20°C to 70°C.
4. Is it suitable for high-vibration environments?
   Yes, industrial-grade construction ensures reliable operation.
5. What type of outputs does it support?
   The module supports digital outputs for actuators, relays, and other devices.
6. Can it be mounted in panels or racks?
   Yes, designed for flexible installation in compact and high-density setups.
7. How durable is the module?
   Industrial-grade metals and plastics provide long-lasting performance.
8. Is maintenance straightforward?
   Yes, plug-and-play design allows fast replacement without downtime.
9. Can multiple modules be combined?
   Yes, Z7136 can be integrated with other HIQuad output or I/O modules.
10. Does it support redundant safety applications?
    Yes, designed for use in redundant and SIL-rated configurations.
