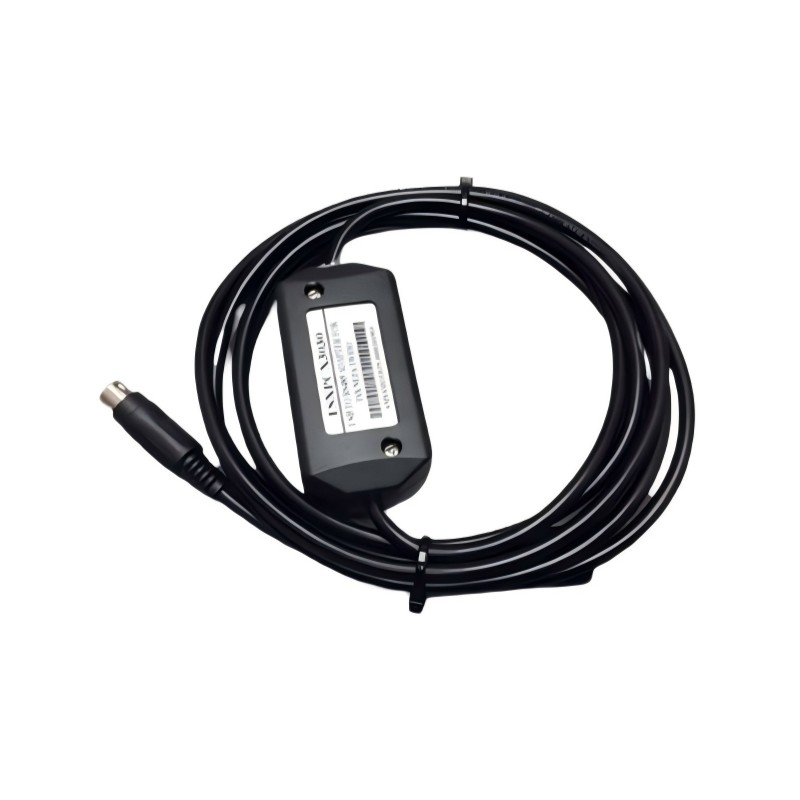

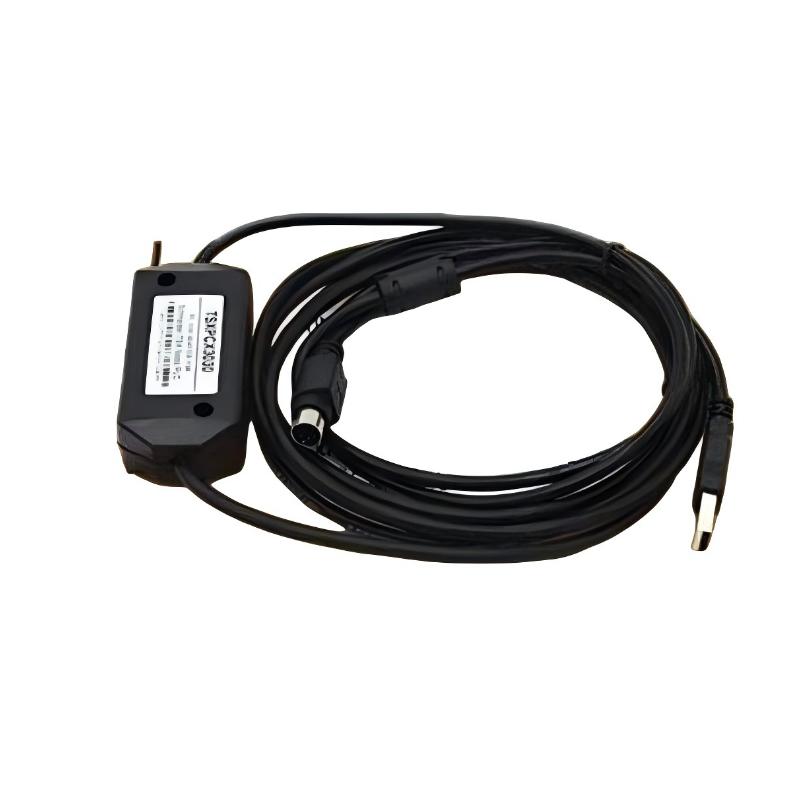

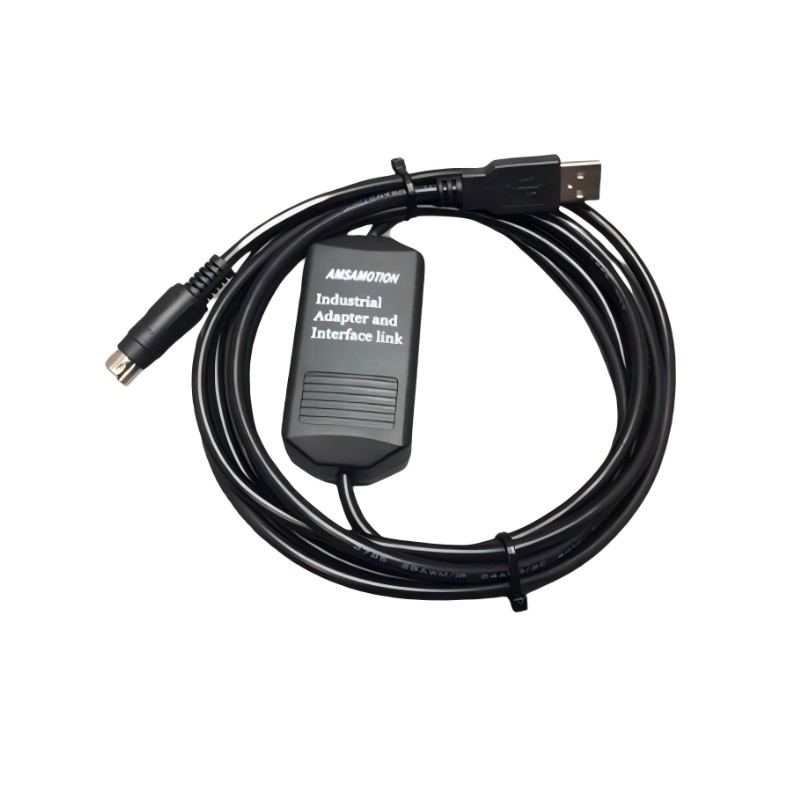

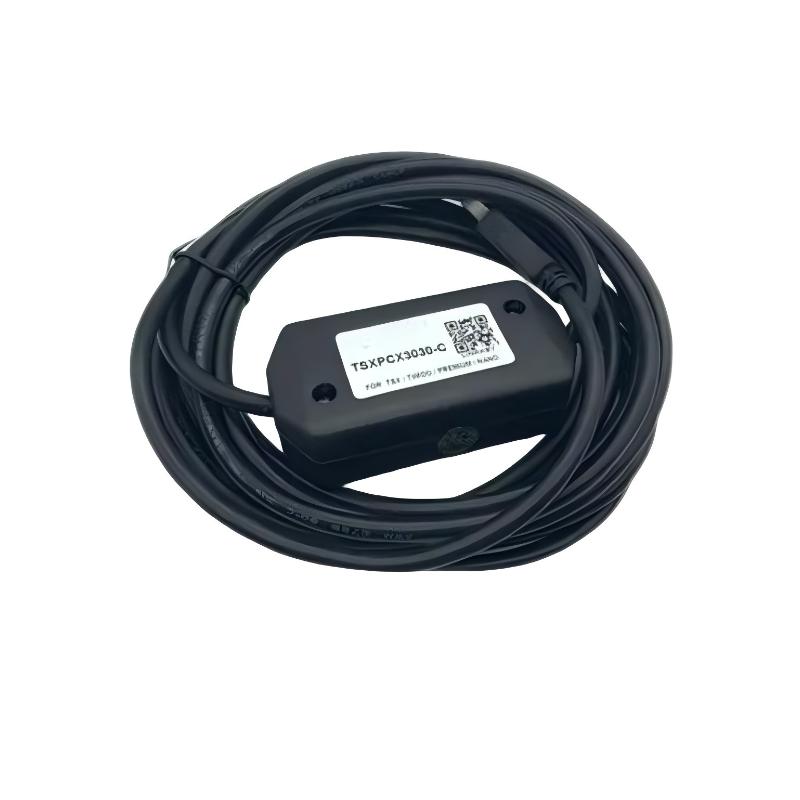

The Schneider TSXPCX3030 is an industrial PLC programming and communication cable designed for Modicon TSX series controllers. It enables a stable connection between a PC (via USB) and Schneider PLCs through TER or AUX serial communication ports.
This cable is widely used in industrial automation for programming, diagnostics, firmware access, and data exchange, especially in legacy Modicon Premium, Micro, Nano, and Twido PLC systems.
It is valued for its simple plug-and-play operation and reliable serial conversion, making it a practical tool for field engineers and maintenance teams.
Technical Specifications (with Dimensions & Weight)
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TSXPCX3030 |
| Product Type | PLC Programming / Communication Cable |
| Function | USB to RS485 / Serial communication interface |
| Compatible PLC Series | Modicon Premium, Micro, Nano, Twido (turn0search0) |
| Communication Ports | TER / AUX PLC ports |
| USB Interface | USB 1.1 / CDC compatible (turn0search0) |
| Baud Rate | 300 bps – 1 Mbps auto-adaptive (turn0search0) |
| Power Supply | USB-powered (no external supply required) |
| Current Consumption | ~50 mA (turn0search0) |
| Cable Length | Typically 2.5 m (turn0search5) |
| Operating Temperature | -20°C to +60°C (turn0search3) |
| Communication Type | USB to RS485 / Uni-Telway / Modbus |
| Data Mode | Master/Slave selectable |
| Weight | ~0.3 kg (turn0search5) |
The cable integrates a USB-to-serial conversion circuit, allowing modern PCs without legacy COM ports to communicate with older PLC systems.
Recommended Related Models
- Schneider TSXCUSB485 USB–RS485 Converter
- Schneider TSXCRJMD25 Programming Adapter Cable
- Schneider Modicon Premium PLC Series
- Schneider Twido PLC Series Controllers
- Schneider PL7 Programming Software Kit
These components are often used together in legacy Modicon automation environments.
