Introduction

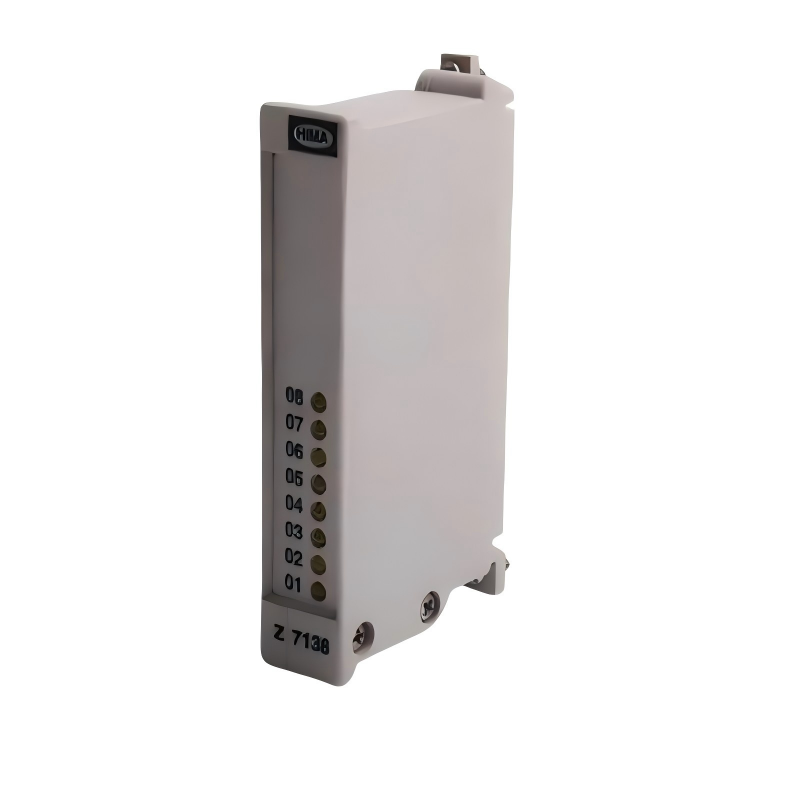

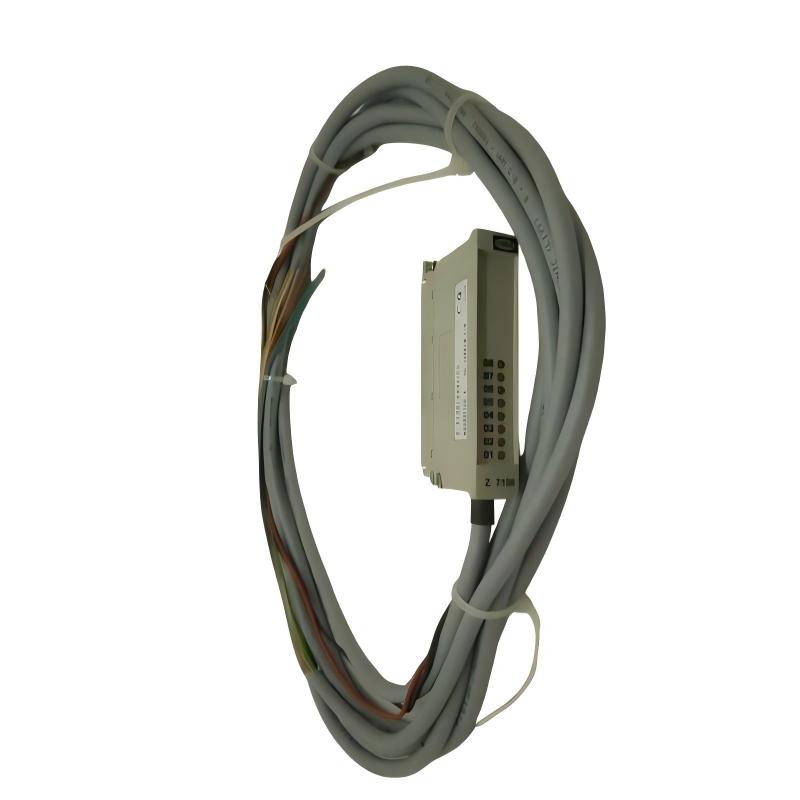

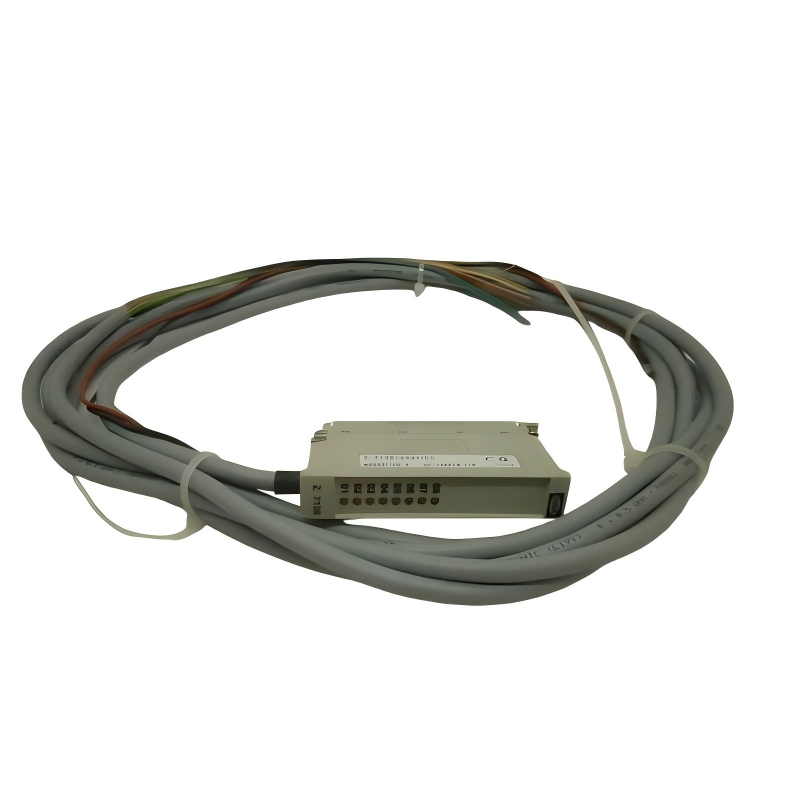

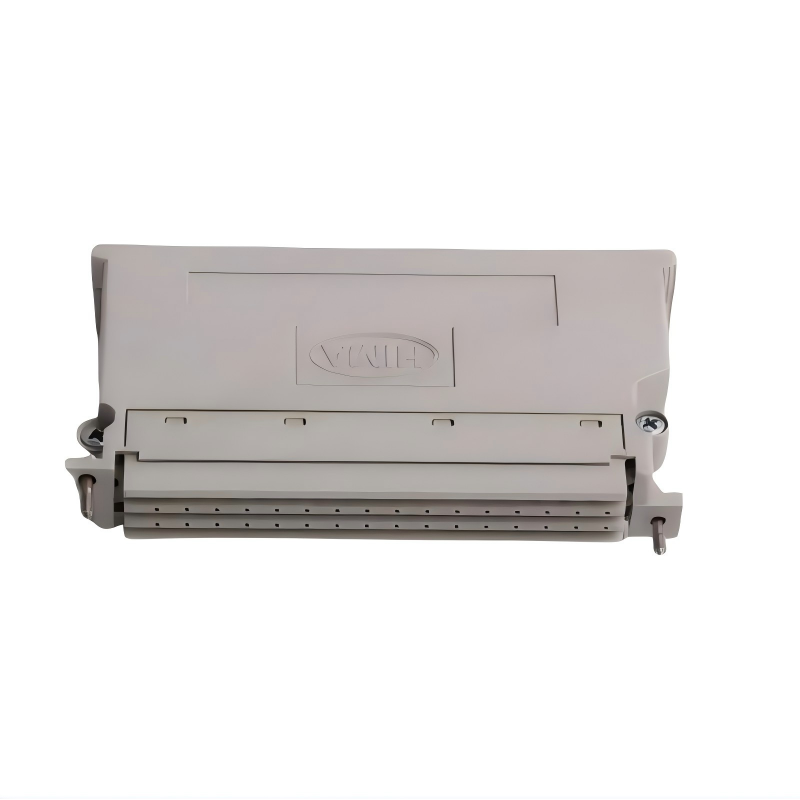

The HIMA Z7138/3331/C5/P2 Industrial Computer Cable Connector provides reliable short-distance connectivity for industrial automation systems. With a 5-meter length, it is ideal for panel-mounted or rack-mounted HIQuad systems and other HIMA modular components. Its industrial-grade materials ensure resistance to vibration, dust, and temperature variations, providing dependable signal transmission in SIL 3-compliant safety networks. Fully compatible with HIQuad systems and Z7138 series modules, the C5/P2 connector simplifies installation, maintenance, and integration while offering robust performance.

Technical Specifications

Specification	Details
Cable Length	5 meters
Shipping Weight	3 kg (6.61 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital & Analog
Compatibility	HIQuad and HIMA modular systems
Mounting	Panel or rack
Construction Material	Industrial-grade metals & plastics
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA Z7138/3331/C5/P2 Industrial Computer Cable Connector is engineered for short-distance, high-reliability connections in industrial automation environments. Typical applications include:

Connecting HIQuad and HIMA modular systems in compact panels and racks.
SIL 3-compliant safety networks requiring reliable 5-meter cable runs.
Industrial automation in chemical, energy, manufacturing, and transportation sectors.
Replacement or extension of existing industrial computer cabling.
High-density control cabinets where space efficiency is crucial.

Advantages

The Z7138/3331/C5/P2 combines compact design, durability, and high-performance connectivity:

5-Meter Cable Length: Ideal for short-distance connections and tight installation spaces.
Stable Signal Transmission: Ensures uninterrupted digital and analog communication.
Industrial-Grade Durability: Resistant to vibration, dust, and temperature variations.
Plug-and-Play Design: Simplifies installation and reduces maintenance time.
Seamless Module Compatibility: Fully compatible with HIQuad systems and Z7138 series components.

Technical FAQs

What does “C5” indicate?
It represents a cable length of 5 meters.
What does “/P2” signify?
Denotes a specific plug type or configuration for connecting HIQuad modules.
Can this cable connector be used in SIL-rated systems?
Yes, it supports SIL 3-compliant safety networks.
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for high-vibration environments?
Yes, industrial-grade construction ensures reliable performance.
Does it support both digital and analog signals?
Yes, it is designed for mixed-signal industrial applications.
Can it be mounted in panels or racks?
Yes, suitable for compact and high-density installations.
Is the cable shielded against interference?
Yes, shielding ensures stable, noise-free signal transmission.
Are longer cable variants available?
Yes, C10 and C15 variants provide extended lengths for larger installations.
Is maintenance easy?
Yes, plug-and-play connectors allow quick replacement or extension without downtime.
