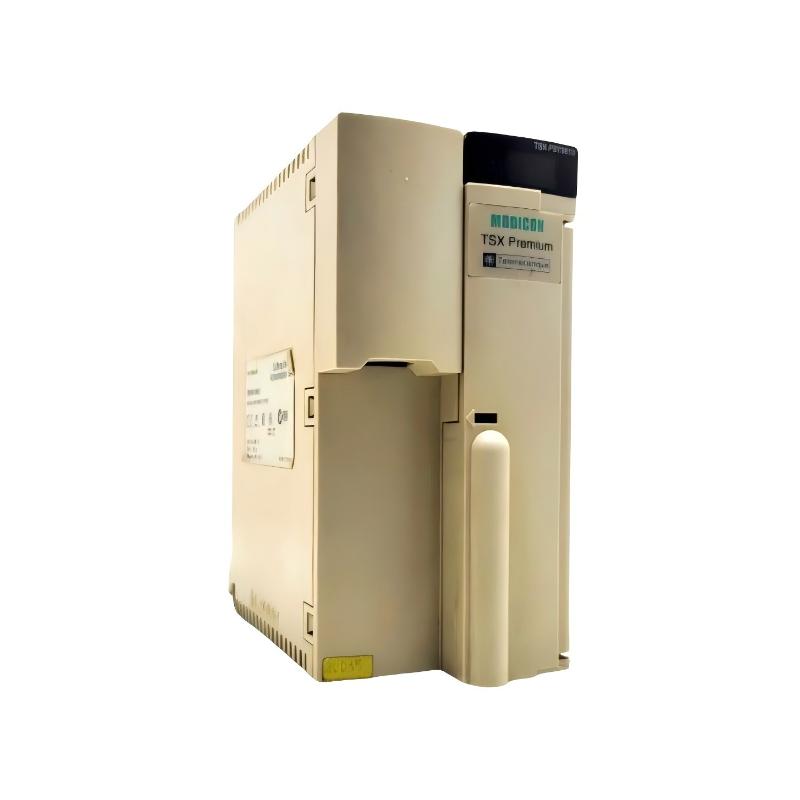

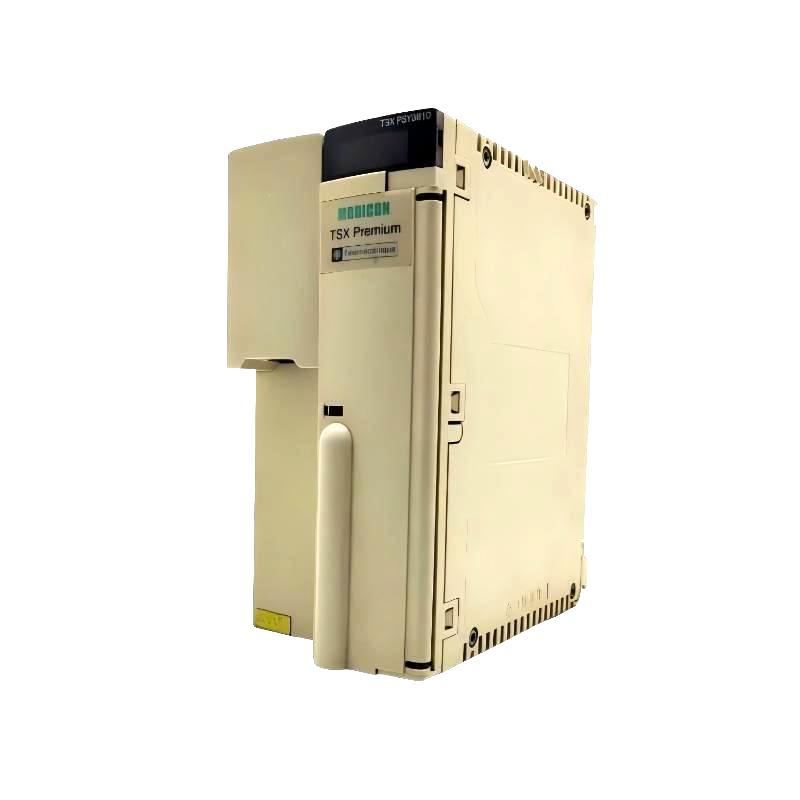

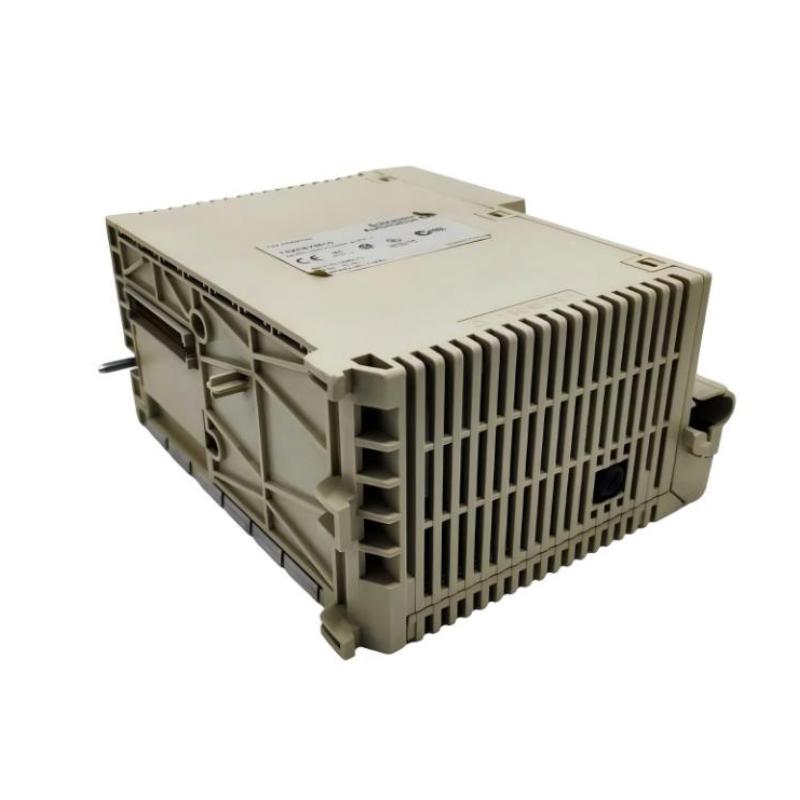

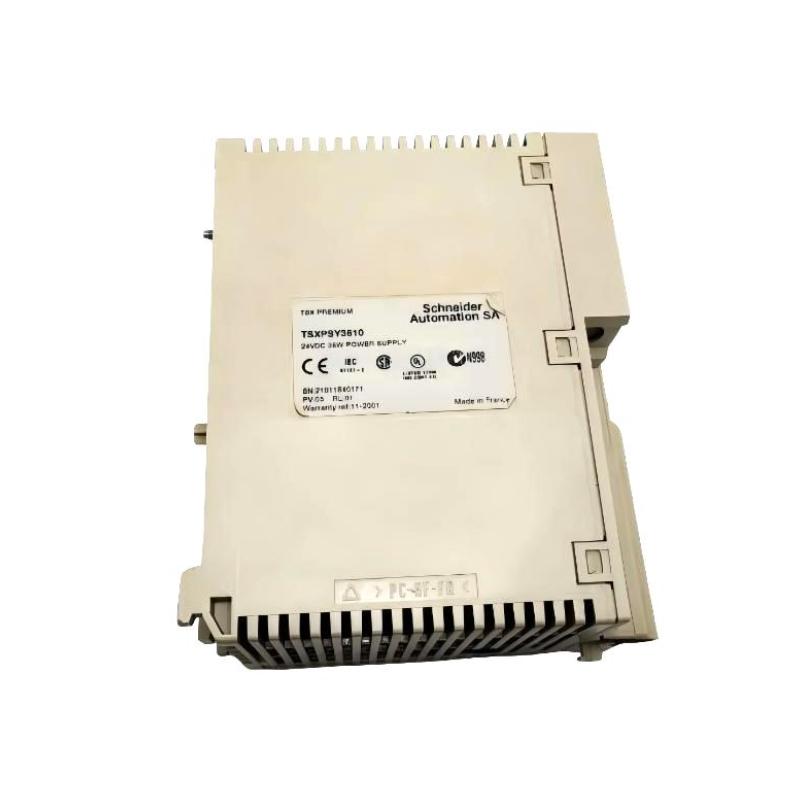

The Schneider Electric TSXPSY3610 is a high-reliability Modicon Premium power supply module engineered for industrial automation systems that demand stable voltage delivery and continuous operational uptime. Designed for integration within Schneider’s TSX Premium PLC architecture, it provides consistent 24V DC power distribution to ensure control system stability in mission-critical environments.

With its robust electrical design and built-in protection features, this module is widely chosen for maintaining legacy automation infrastructures where performance consistency and system longevity are essential.

Technical Specifications

Item	Specification
Product Type	Power Supply Module
Series	Modicon Premium
Output Voltage	24 V DC
Output Power	~36 W
Input Voltage Range	100–240 VAC
Input Current	≤ 2700 mA
Frequency	50/60 Hz
Protection Functions	Overload, short-circuit, overvoltage
Efficiency Design	Industrial-grade regulated output
Mounting Type	Rack-mounted (Modicon TSX backplane)
Operating Temperature	0°C to 60°C
Storage Temperature	-25°C to 70°C
Protection Class	IP20

Dimensions & Weight

Item	Value
Dimensions	approx. 70 × 125 × 130 mm
Weight	approx. 0.78–0.85 kg

Recommended Related Models

TSXPSY2600M – lower power variant for compact TSX systems
TSXPSY5500 series – higher load power supply solutions
TSXPSY3610M refurbished units – cost-efficient replacement options
Modicon M340 power modules – modern replacement ecosystem
BMXCPS series (Modicon X80 platform) – next-generation upgrade path

Popular Schneider Electric Models

Modicon Premium TSX Series CPU modules
Modicon Quantum automation systems
Modicon M340 PLC controllers
Modicon X80 distributed I/O modules
Schneider Harmony HMI panels

Applications

The TSXPSY3610 is widely deployed in industrial automation environments such as:

Factory production line PLC systems
Packaging and bottling machinery control
Industrial process automation cabinets
Water and wastewater treatment plants
Energy distribution control systems
Legacy Modicon Premium system maintenance projects

Advantages

Stable and clean 24V DC power output for sensitive PLC systems
Strong protection against electrical faults and instability
Designed for long-term industrial operation
Seamless integration with Modicon Premium architecture
Compact rack-mounted design saves cabinet space
Proven reliability in legacy automation infrastructure
Low maintenance requirement and high service life

Technical FAQs

1. What is the main function of TSXPSY3610?
It supplies regulated 24V DC power to Modicon Premium PLC systems.

2. Is it still widely used today?
Yes, especially in legacy industrial automation systems.

3. What is its output power capacity?
Approximately 36W depending on system configuration.

4. Can it operate on standard industrial voltage?
Yes, it supports 100–240 VAC input.

5. Does it include protection features?
Yes, it includes overload, short-circuit, and overvoltage protection.

6. What PLC systems is it compatible with?
It is designed for the Modicon Premium TSX platform.

7. What is its operating temperature range?
0°C to 60°C for industrial environments.

8. What is its weight?
Approximately 0.78–0.85 kg depending on configuration.

9. Is it DIN rail mounted?
It is rack/backplane mounted within TSX PLC systems.

10. Can it be replaced with newer Schneider modules?
Yes, modern Modicon M340 or X80 power modules are common upgrades depending on system migration strategy.
