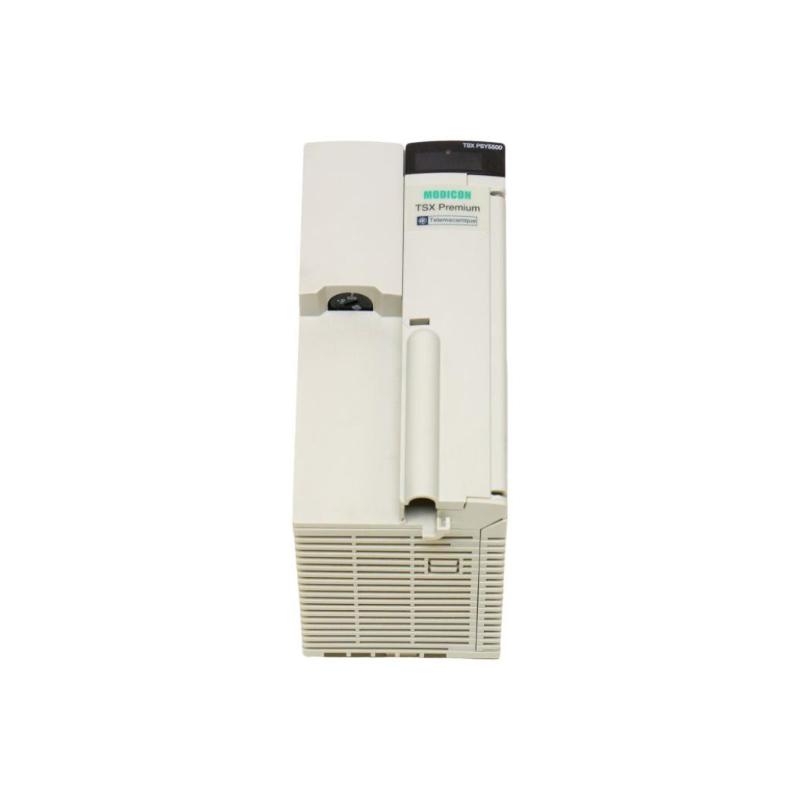

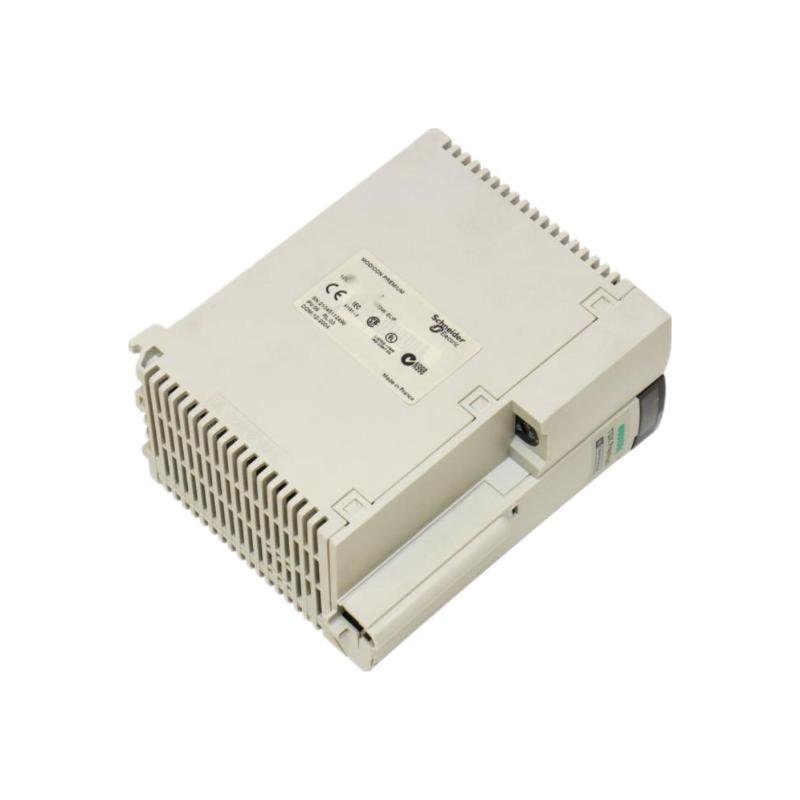

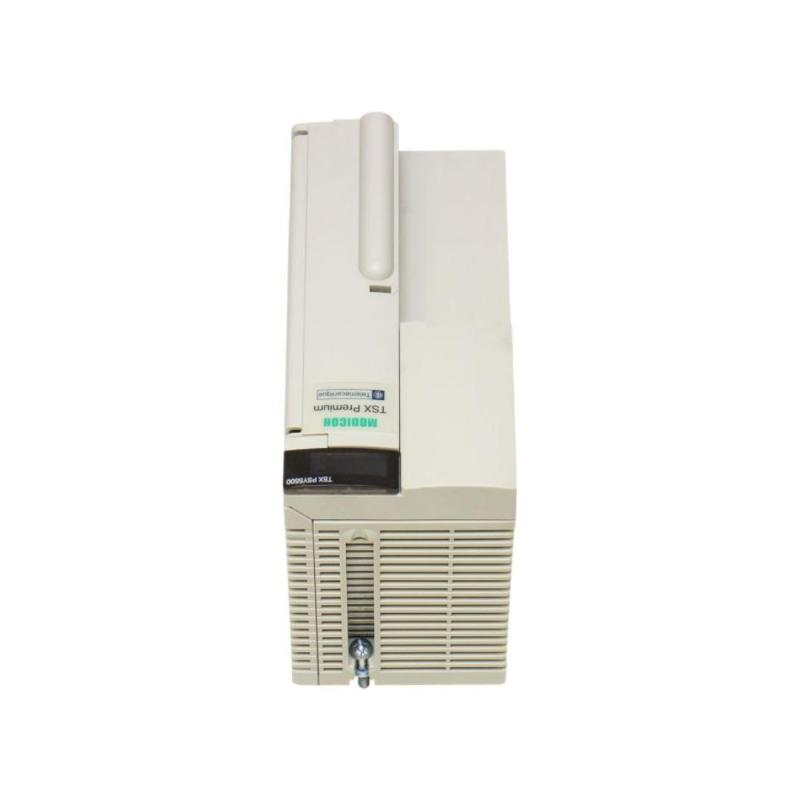

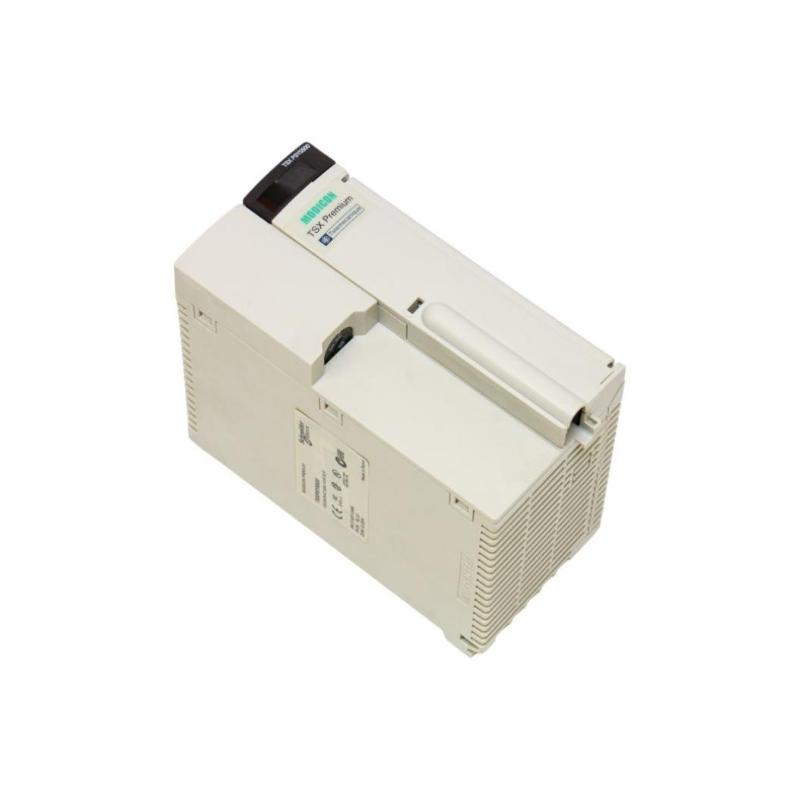

The Schneider Electric TSXPSY5500M is a high-capacity Modicon Premium power supply module engineered to deliver stable and reliable electrical power for industrial automation systems. Designed for demanding PLC architectures, it ensures consistent energy distribution across control backplanes, even under fluctuating industrial power conditions.
This module is widely recognized for its robustness, dual-voltage input flexibility, and strong protection architecture, making it a dependable choice for maintaining uptime in mission-critical automation environments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Supply Module |
| Series | Modicon Premium |
| Input Voltage | 100–120 VAC / 200–240 VAC |
| Voltage Range | 85–140 VAC / 190–264 VAC |
| Frequency | 50/60 Hz (47–63 Hz limits) |
| Output Power | 50 W total |
| DC Output | 5 VDC & 24 VDC rails |
| 5V Output | 35 W / up to 7 A |
| 24V Output | 19 W / 0.8 A (sensor & relay) |
| Protection | Overload, short-circuit, overvoltage, internal fuse |
| Inrush Current | 38 A |
| Operating Temp | 0°C to 60°C |
| Storage Temp | -25°C to 70°C |
| Protection Class | IP20 |
| Insulation Resistance | ≥ 100 MΩ |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions | approx. 70 × 125 × 130 mm |
| Weight | approx. 0.62 kg |
