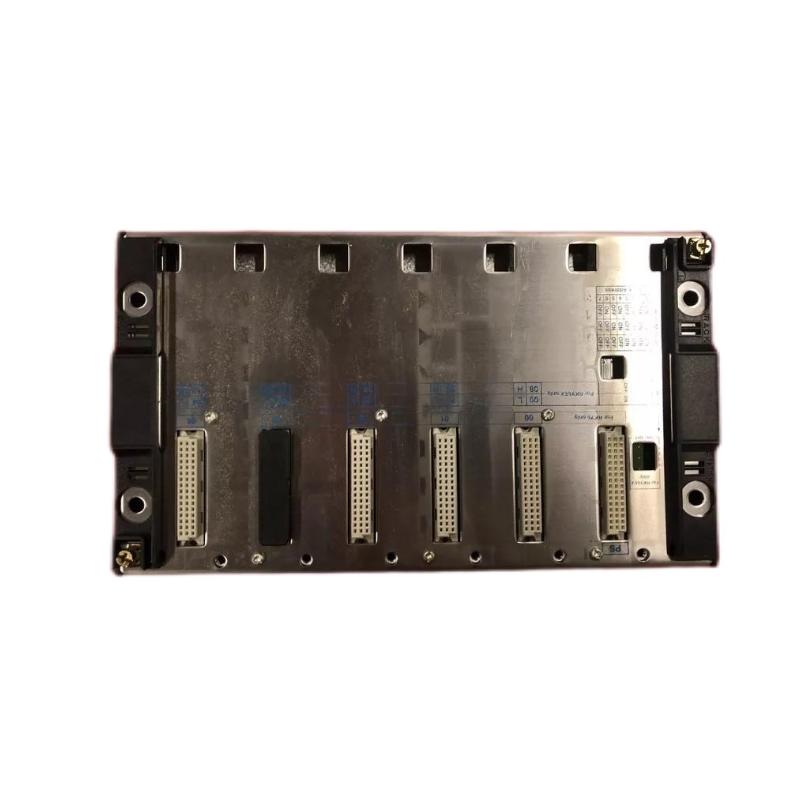

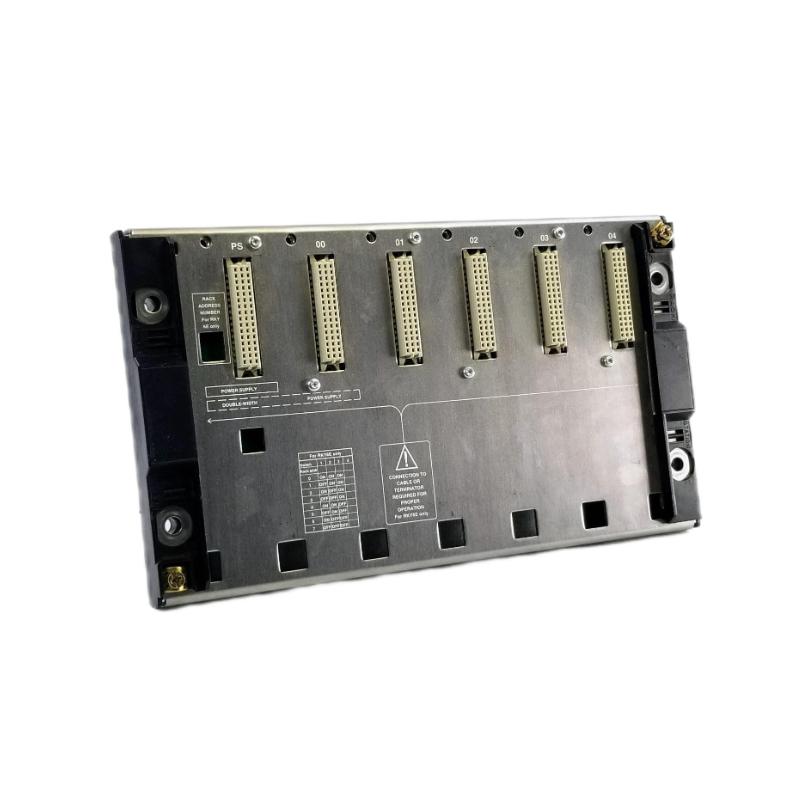

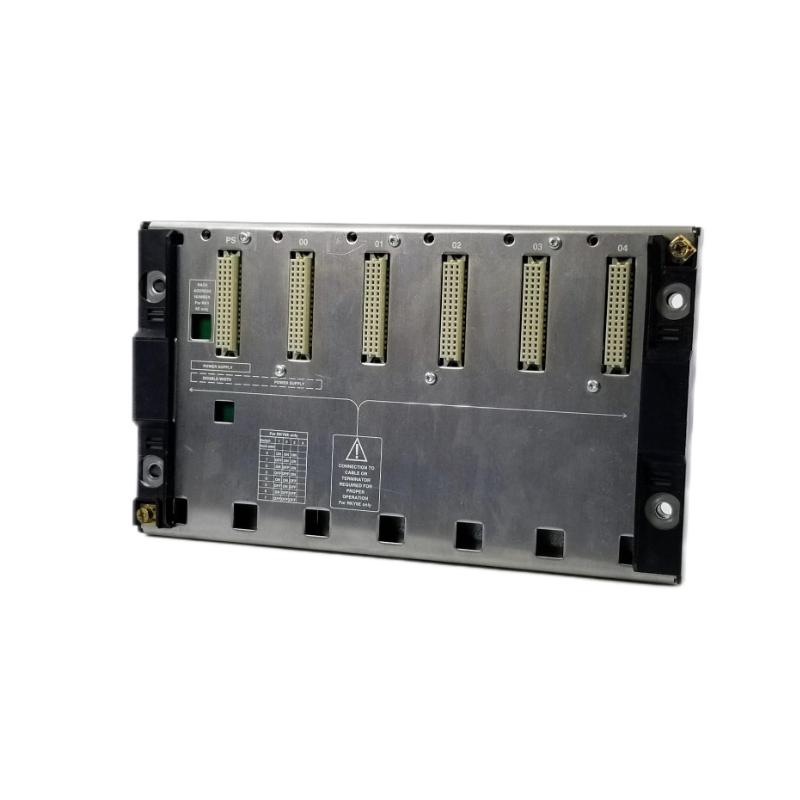

The Schneider Electric TSXRKY6 is a robust 6-slot non-extendable rack designed for the Modicon Premium PLC automation platform. It serves as the mechanical and electrical backbone of a single-rack control system, enabling secure mounting and communication between power supplies, processors, and I/O modules.
Built for industrial-grade reliability, this rack is widely used in automation cabinets where system stability, clean module organization, and long-term durability are essential. Its compact structure and standardized Bus X architecture make it a dependable foundation for legacy PLC installations.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Non-extendable PLC Rack |
| Series | Modicon Premium |
| Slots | 6 modules |
| System Use | Single-rack configuration |
| Compatible Modules | TSXPSY power supply, TSXP57 CPU, I/O modules |
| Backplane System | Bus X architecture |
| Mounting Type | DIN rail or panel mounting |
| Fixing Method | 4 × M6 screws |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Humidity | 10–95% (non-condensing) |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions | approx. 187.9 × 200 × 70 mm (platform-dependent variant range) |
| Weight | approx. 1.3 – 1.5 kg |
Recommended Related Models
- TSXRKY8 / TSXRKY12 – larger rack configurations for expanded systems
- TSXRKY6EX – extendable version for multi-rack architectures
- TSXPSY3610 / TSXPSY5500M – compatible power supply modules
- Modicon M340 rack systems – modern migration alternative
- Modicon X80 backplane racks (BMXXBP series) – next-generation upgrade platform
