Introduction

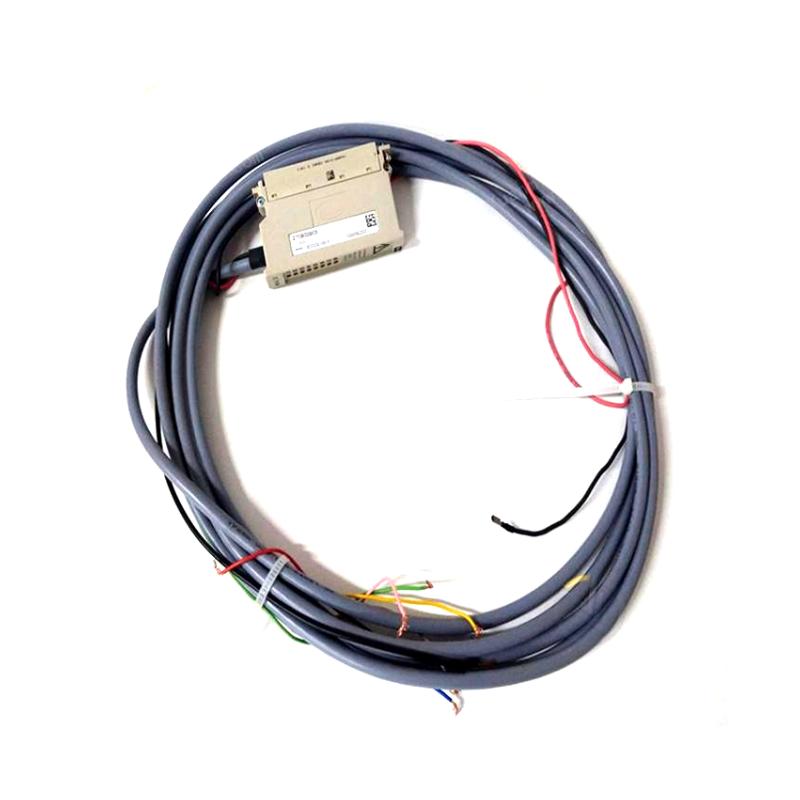

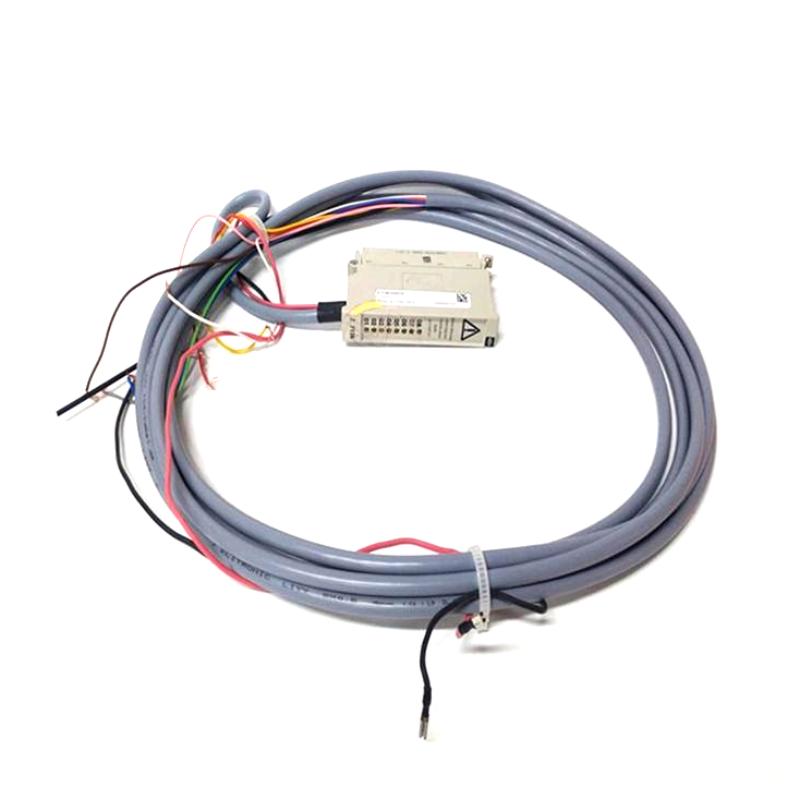

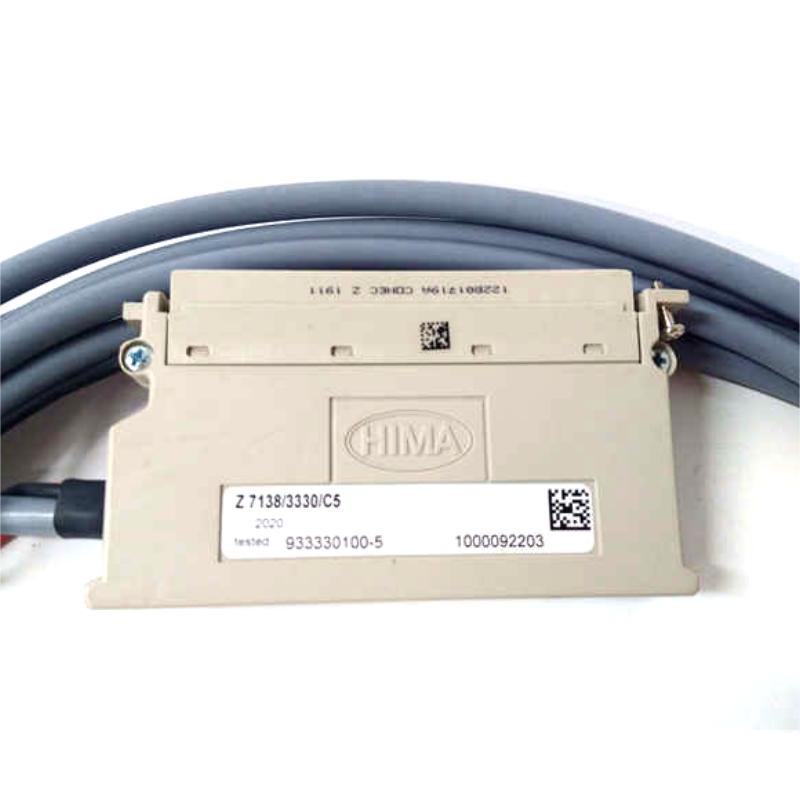

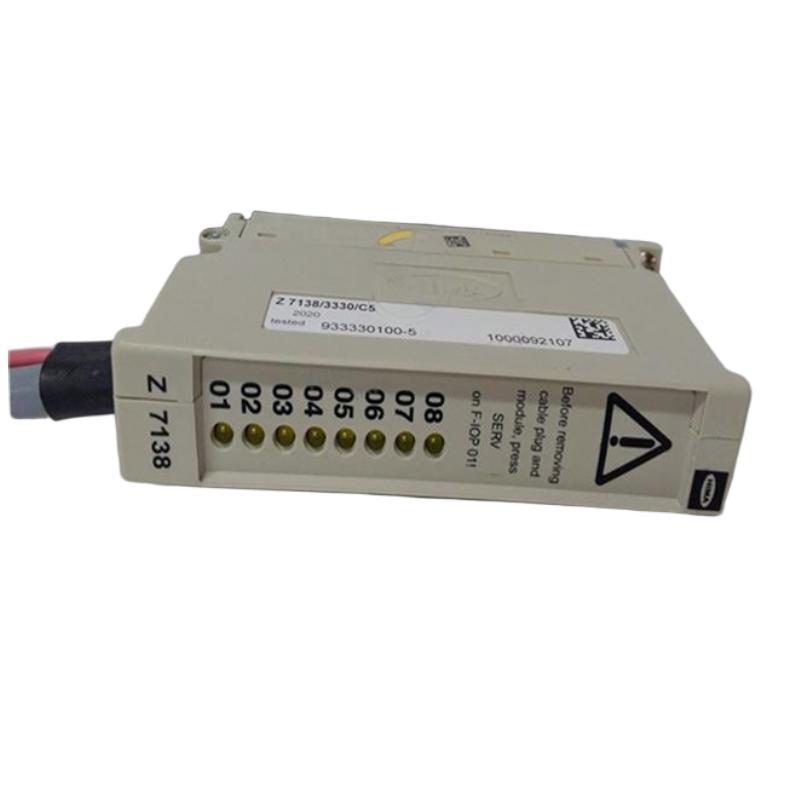

The HIMA Z7138/3330/W5/P2 Cable Plug provides a compact, reliable interface for industrial computer cabling. With dimensions of 114 × 12.5 × 99 mm and a lightweight 0.15 kg (0.33 lb), it is perfect for tight panel- or rack-mounted installations. Designed for durability and precision, this plug ensures stable signal transmission in SIL 3-compliant safety networks. Fully compatible with Z7138 series cables and HIQuad modules, the W5/P2 plug simplifies installation and maintenance while providing robust and dependable connectivity.

Technical Specifications

Specification	Details
Dimensions	114 × 12.5 × 99 mm
Shipping Weight	0.15 kg (0.33 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital & Analog
Compatibility	HIQuad and Z7138 series cables
Mounting	Panel or rack
Construction Material	Industrial-grade plastics & metals
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA Z7138/3330/W5/P2 Cable Plug is designed for precise, reliable connections in industrial automation networks. Typical applications include:

Connecting HIQuad and HIMA modular systems in compact panels or high-density racks.
SIL 3-compliant safety networks where secure and stable connections are critical.
Industrial automation in chemical, energy, manufacturing, and transportation sectors.
Replacement or expansion of existing cable connections with compact plug modules.
Quick and reliable interfacing between control modules and computer cables.

Advantages

The Z7138/3330/W5/P2 Cable Plug provides compact, durable, and high-performance connectivity:

Compact Design: Measures only 114 × 12.5 × 99 mm, ideal for tight installation spaces.
Reliable Connections: Ensures stable signal transmission in industrial networks.
Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature changes.
Plug-and-Play Installation: Quick integration reduces downtime and maintenance effort.
Seamless Integration: Fully compatible with Z7138 series cables and HIQuad modules.

Technical FAQs

What does “W5” indicate?
Denotes the specific plug configuration suitable for Z7138 cable series.
What does “/P2” signify?
Refers to the connector type or configuration for HIQuad module interfaces.
Can it be used in SIL-rated systems?
Yes, supports SIL 3-compliant safety networks.
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for high-vibration industrial environments?
Yes, engineered to maintain reliable connections under vibration.
Does it support both digital and analog signals?
Yes, compatible with mixed-signal cables in industrial automation.
Can it be mounted in panels or racks?
Yes, designed for high-density and space-constrained installations.
How durable is the plug?
Industrial-grade materials ensure long-lasting performance.
Is maintenance straightforward?
Yes, plug-and-play design allows quick replacement or connection without downtime.
Are there variants for different cable lengths or types?
Yes, compatible with C5, C6, C10 variants of the Z7138 cable series.
