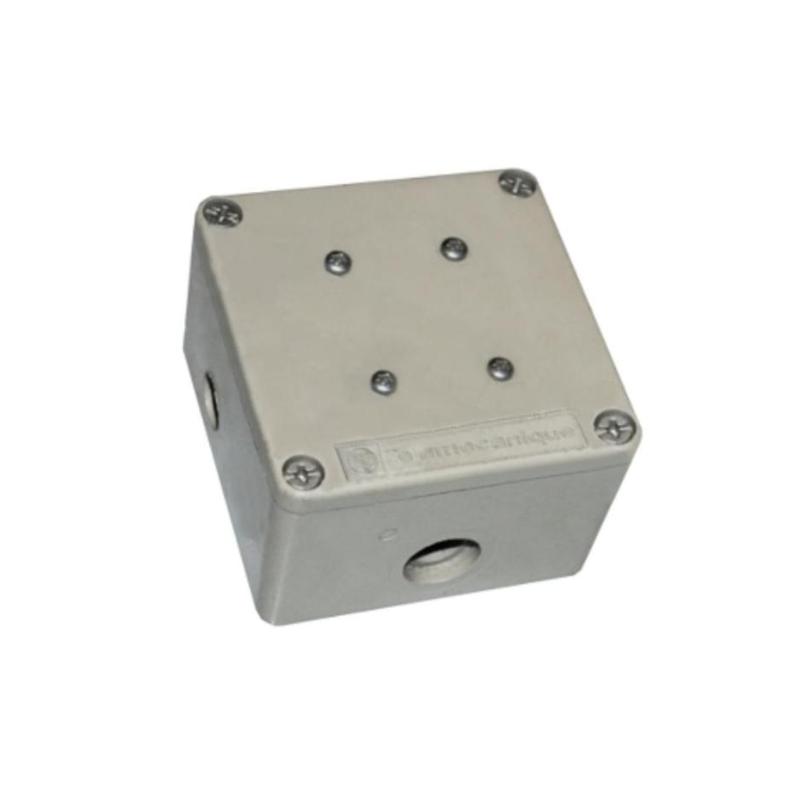

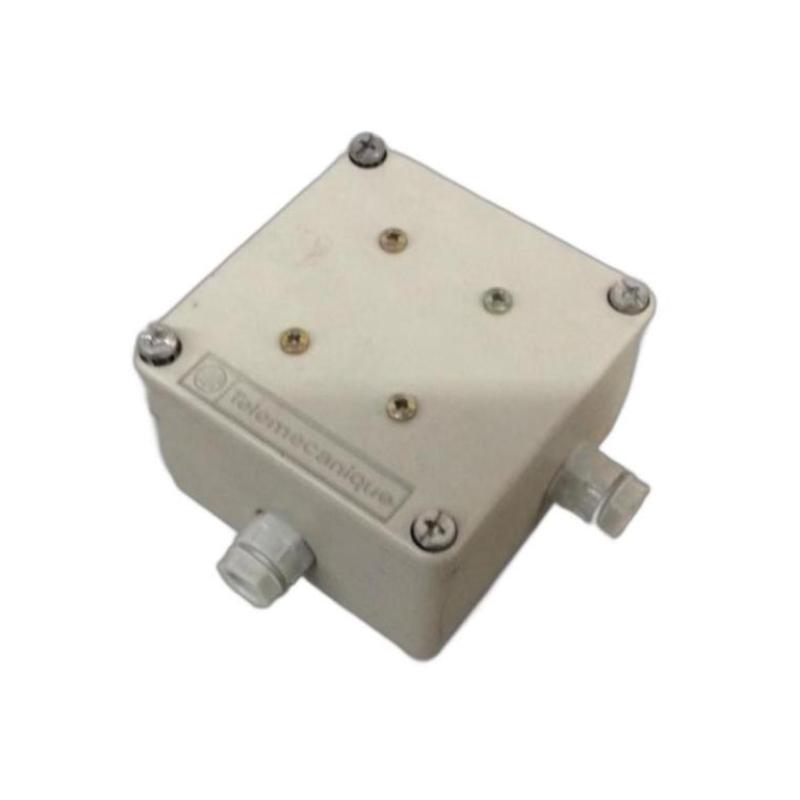

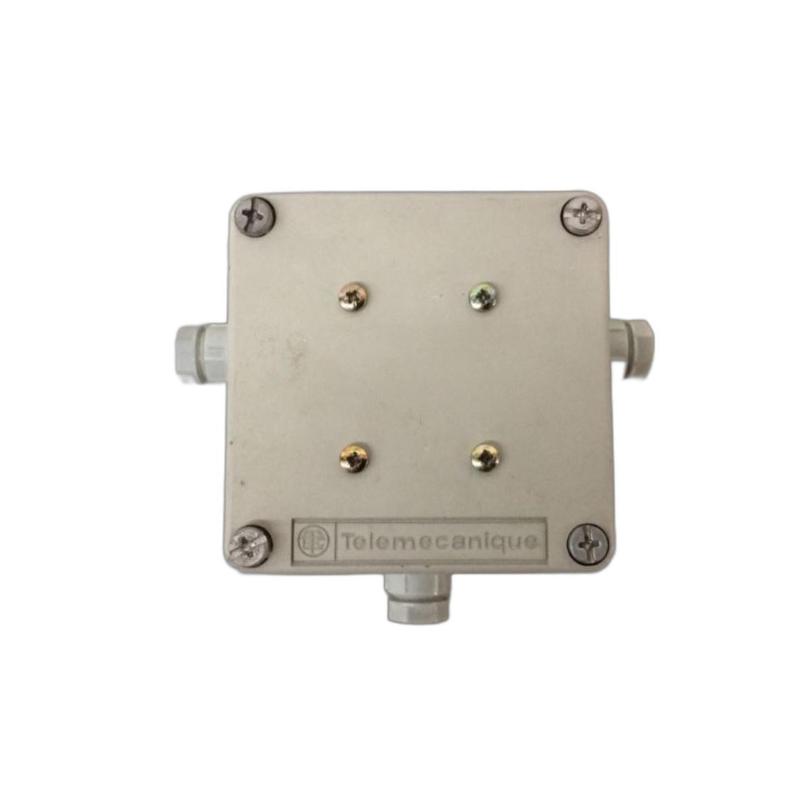

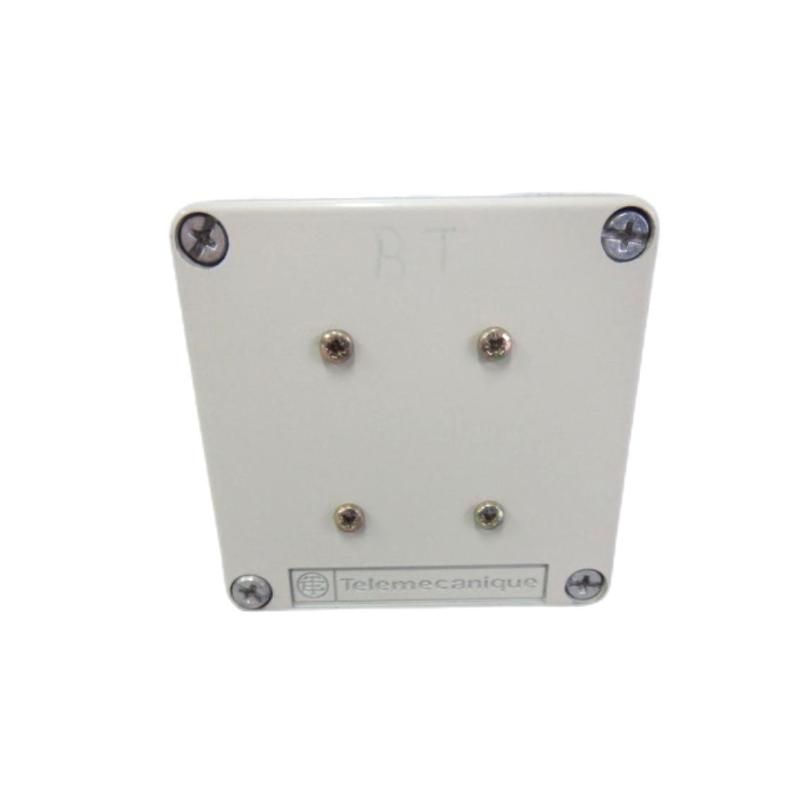

The Schneider Electric TSXSCA50 is a Modbus passive tap junction box designed for RS485 serial communication networks within the Modicon Premium automation ecosystem. It is used to extend, branch, and terminate industrial communication lines, ensuring stable and noise-resistant data transmission between PLC devices.
Rather than processing signals, this module plays a critical infrastructural role—providing reliable physical connectivity in complex automation networks where communication integrity directly impacts system performance.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Passive Tap Junction Box |
| Series | Modicon Premium / TSX Series |
| Communication Protocol | Modbus (RS485) |
| Function | Line extension / single-channel tap-off |
| Electrical Connection | Screw terminals |
| Termination | RC line terminator integrated |
| Number of Terminals | 3 screw terminals |
| Mounting Type | DIN rail mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Protection Rating | IP20 |
| Application | Industrial serial communication networks |
Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions | approx. compact industrial junction format (panel-mounted, small form factor) |
| Weight | approx. 0.52 kg |
