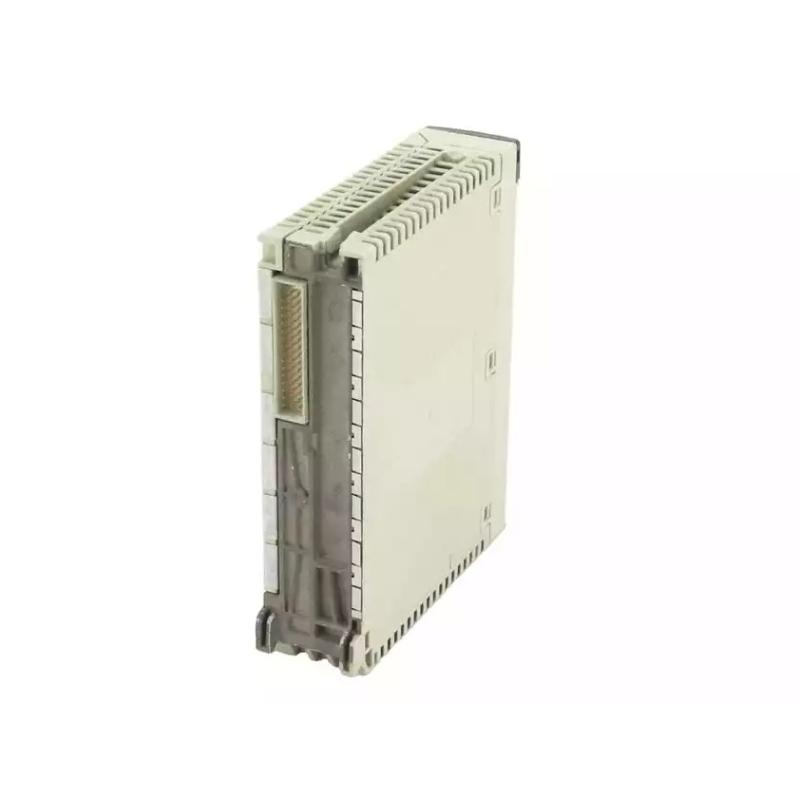

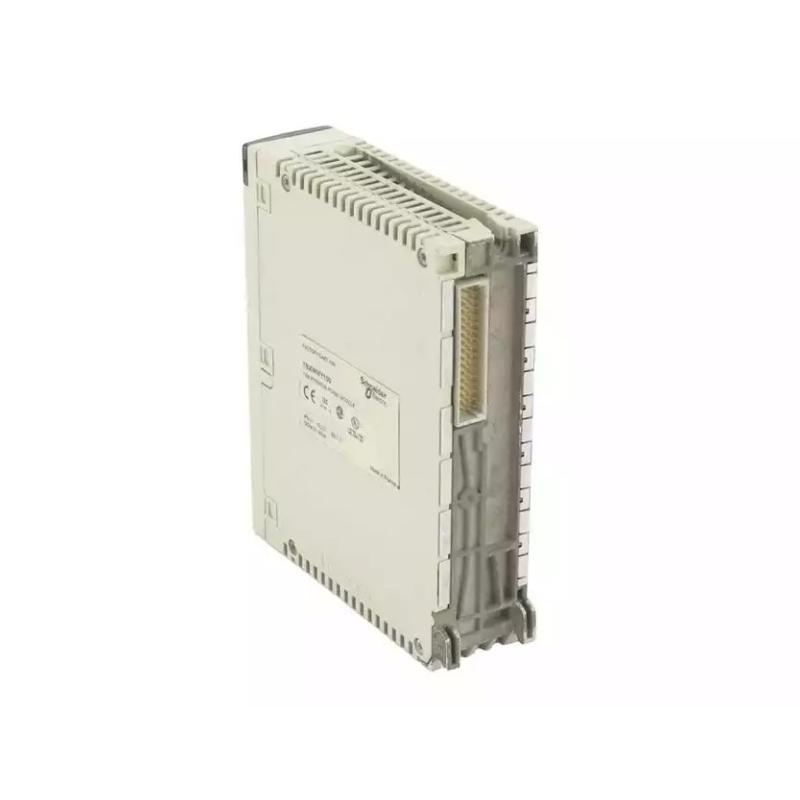

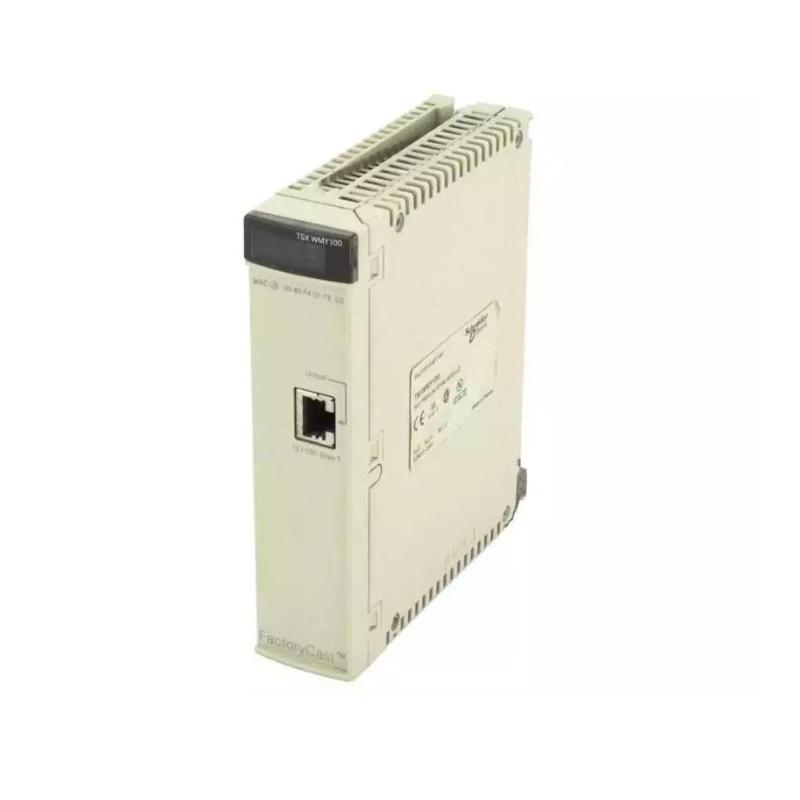

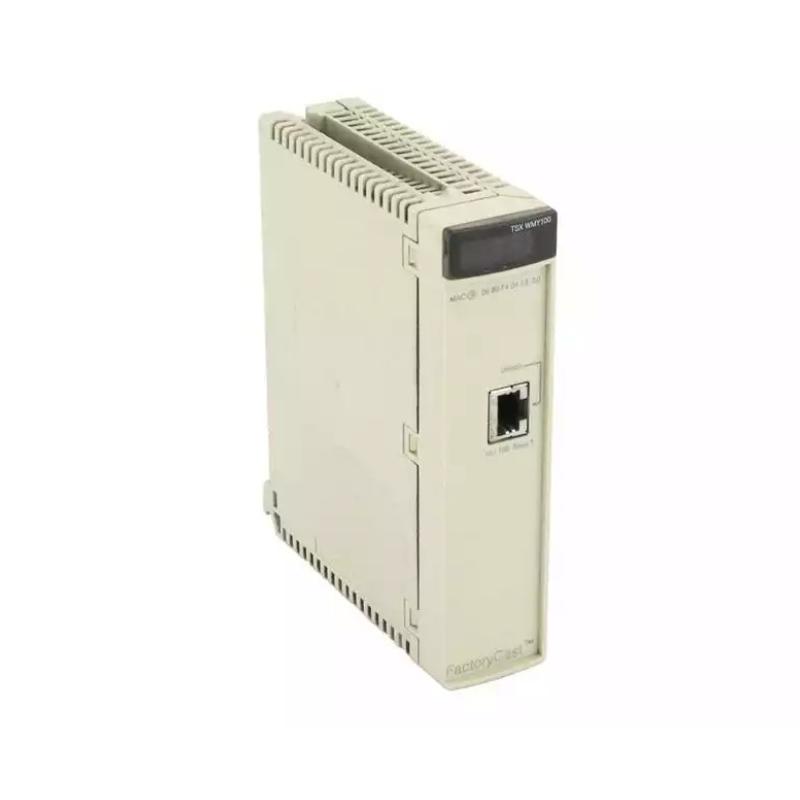

The Schneider Electric TSXWMY100 is a high-performance Ethernet TCP/IP communication module designed for the Modicon Premium automation platform. It enables fast and stable industrial networking between PLC systems, SCADA, and supervisory control layers.
Equipped with integrated web server functionality, this module supports real-time remote diagnostics, data visualization, and system monitoring—making it a key component in modernizing legacy automation infrastructures without replacing the entire control system.
Built for reliability and long-term industrial use, the TSXWMY100 delivers robust network performance in demanding factory environments where uptime and data integrity are critical.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Series | Modicon Premium |
| Communication Protocol | Modbus TCP / Uni-TE / TCP/IP |
| Transmission Rate | 10/100 Mbit/s (auto-sensing) |
| Network Interface | RJ45 (10BASE-T / 100BASE-TX) |
| Web Server | FactoryCast HMI (Class D10) |
| Max Connections | Up to 64 |
| Memory | 8 MB user web pages |
| Power Supply | Via rack backplane (5 V DC) |
| Current Consumption | ~360 mA |
| Diagnostic LEDs | RUN / ERR / TX / RX / STS / COL |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
| Protection Rating | IP20 |
| Standards | IEC 61131-2 compliant |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 260 × 180 × 60 mm |
| Weight | approx. 0.34 – 0.44 kg |
Recommended Related Models
- TSXETY4103 – Ethernet module for TSX Premium systems
- TSXETY5103 – enhanced Ethernet module with extended services
- TSXSCM21 / TSXSCM22 – serial communication modules
- Modicon M340 BMXNOE modules – modern Ethernet replacement
- Modicon X80 communication modules – next-generation upgrade path
