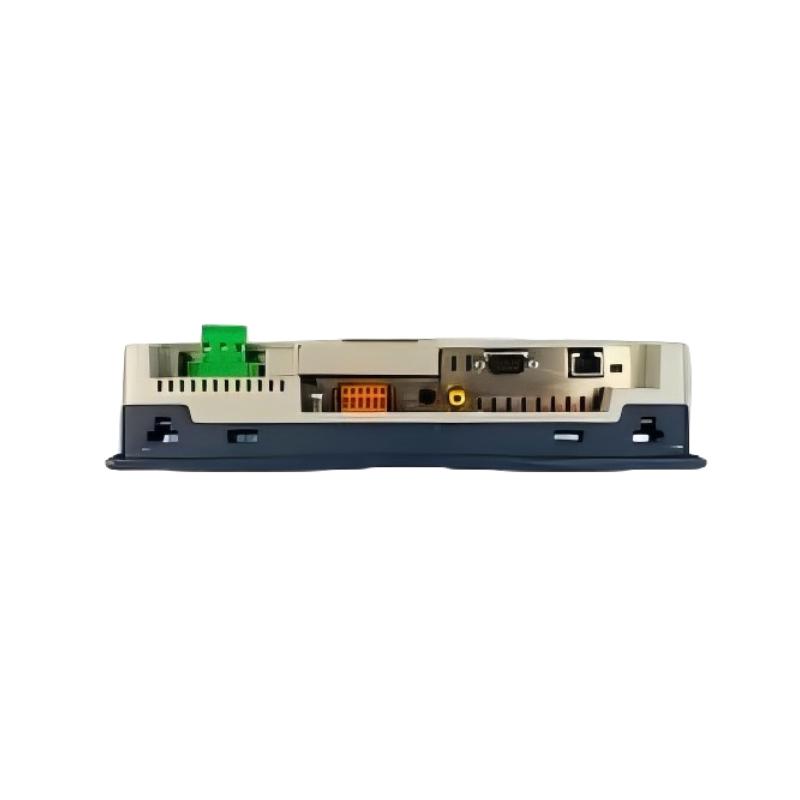

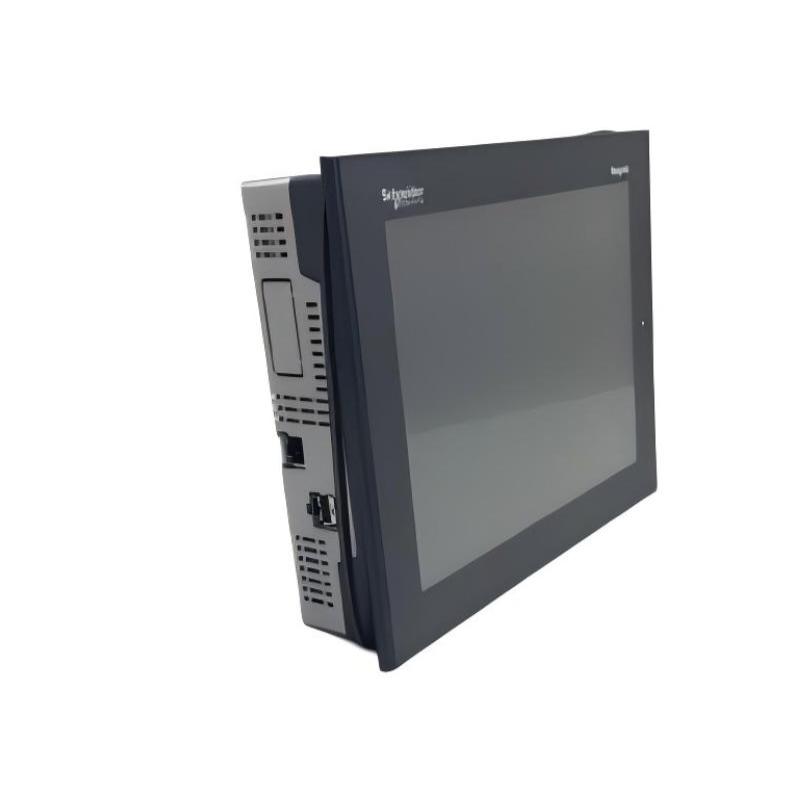

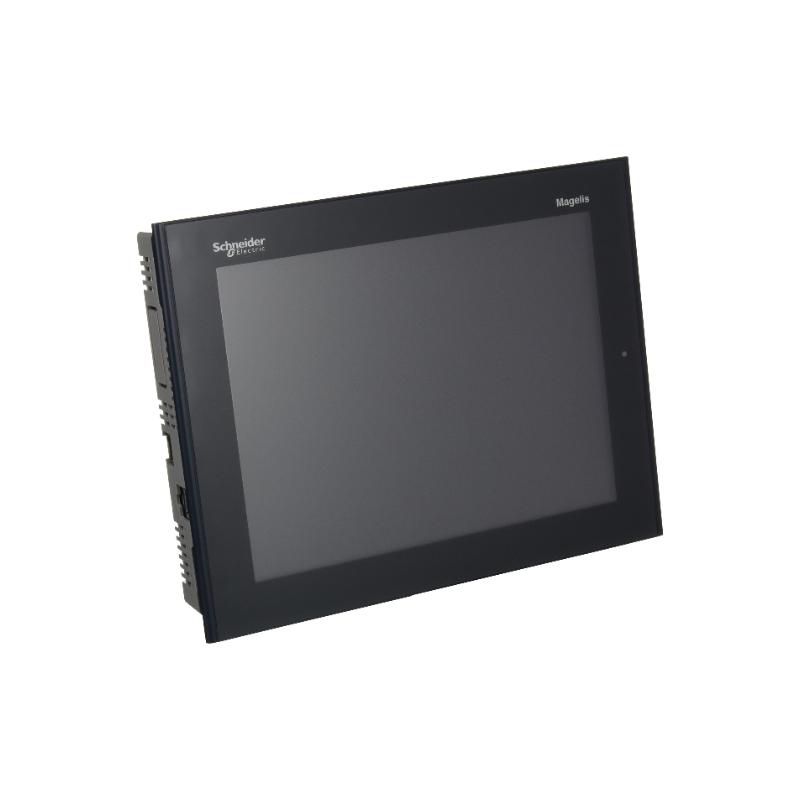

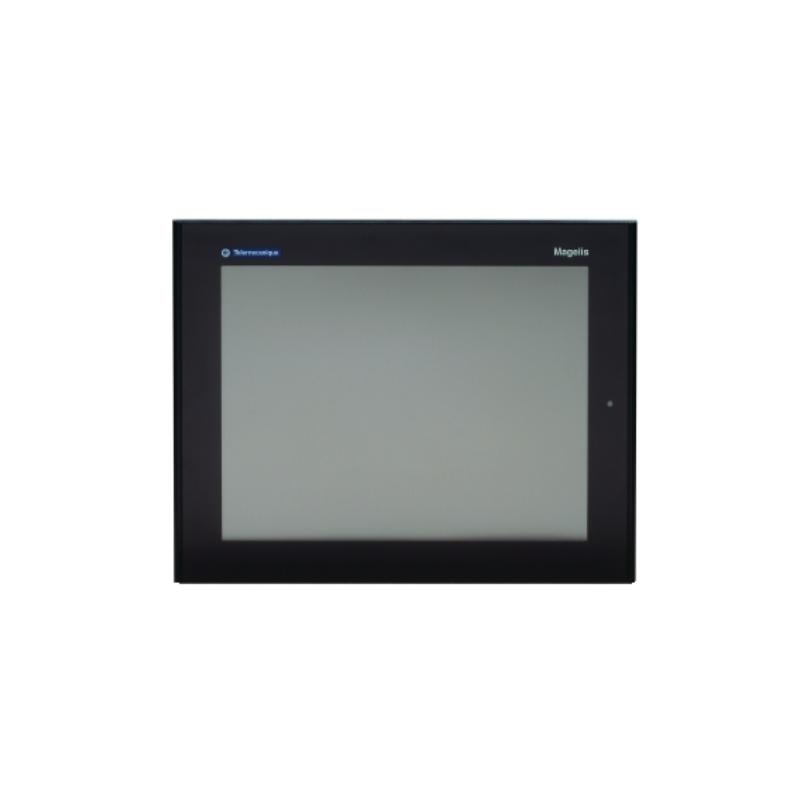

The Schneider Electric XBTGT5340 is an advanced Magelis HMI (Human-Machine Interface) touchscreen panel designed for industrial automation systems requiring intuitive operator control, real-time visualization, and multi-protocol communication.
Featuring a 10.4-inch color display and high-performance RISC processor, it is widely used in machine control, production monitoring, and SCADA interface applications. Even as a legacy product, it remains highly valued in industrial environments due to its stability, broad protocol support, and strong integration capability across automation systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Advanced Touchscreen HMI Panel |
| Series | Magelis XBTGT |
| Display Size | 10.4 inch TFT LCD |
| Resolution | 640 × 480 pixels (VGA) |
| Display Colors | 65,536 colors |
| Processor | RISC CPU 266 MHz |
| Memory | 32 MB Flash + 512 KB SRAM backup |
| Communication | Ethernet TCP/IP, Modbus, RS232/RS485 |
| USB Ports | 2 × USB Type-A |
| Video Input | Composite video (NTSC/PAL) |
| Software | Vijeo Designer |
| Supply Voltage | 24 V DC (19.2–28.8 V range) |
| Power Consumption | ~30 W |
| Protection Rating | IP20 |
| Mounting Type | Flush panel mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 70°C |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 270 × 212 × 57 mm |
| Weight | approx. 1.8 – 2.5 kg |
Recommended Related Models
- XBTGT5330 – smaller 5.7" Magelis HMI panel
- XBTGT5340E – Ethernet-enhanced variant
- HMIGTO2310 / HMIGTO series – modern replacement Magelis terminals
- HMIGXU / HMIG5U series – next-generation Harmony HMI platform
- Modicon M340 + HMI combos – integrated automation systems
