Introduction

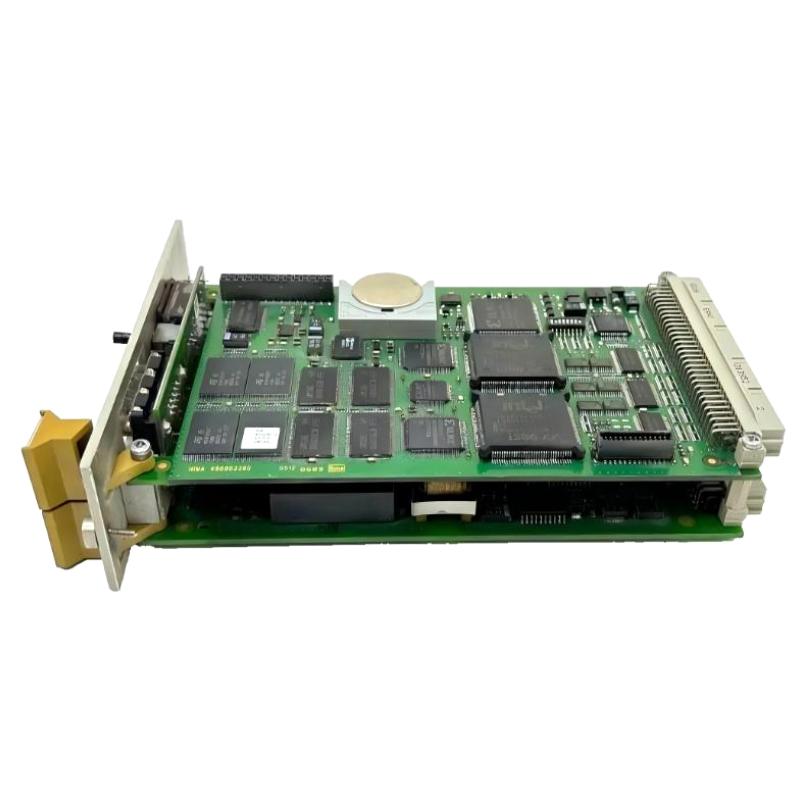

The HIMA F8560X Central Processing Unit Module is a high-performance, compact solution for industrial automation and safety systems. With dimensions of 260 × 110 × 25 mm and a lightweight 0.85 kg (1.87 lb), it is ideal for panel- or rack-mounted installations. Engineered for durability and reliability, the F8560X CPU ensures fast, accurate processing of both digital and analog signals in SIL 3-compliant safety networks. Its plug-and-play design simplifies installation, maintenance, and system integration while offering robust performance in demanding industrial environments.

Technical Specifications

Specification	Details
Dimensions	260 × 110 × 25 mm
Shipping Weight	0.85 kg (1.87 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital & Analog
Compatibility	HIQuad and HIMA modular systems
Mounting	Panel or rack
Construction Material	Industrial-grade metals & plastics
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA F8560X Central Processing Unit (CPU) Module is designed for high-performance processing and control in industrial automation and safety systems. Typical applications include:

Acting as the central processing hub for HIQuad and HIMA modular systems.
SIL 3-compliant safety networks in energy, chemical, manufacturing, and transportation industries.
Control of critical automation processes requiring fast, reliable computations.
Integration into high-density panel- and rack-mounted automation systems.
Upgrading or replacing existing CPU modules for enhanced system performance.

Advantages

The F8560X CPU Module combines speed, reliability, and industrial-grade robustness:

High-Performance Processing: Ensures rapid, reliable decision-making in safety-critical systems.
Compact Design: Measures 260 × 110 × 25 mm, ideal for space-constrained installations.
Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature fluctuations.
Plug-and-Play Installation: Simplifies integration and maintenance.
Seamless System Compatibility: Fully compatible with HIQuad and HIMA modular systems.

Technical FAQs

What is the primary function of the F8560X?
It serves as the central processing unit for HIQuad and HIMA modular systems.
Can it be used in SIL-rated systems?
Yes, it supports SIL 3-compliant safety networks.
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for high-vibration environments?
Yes, designed for reliable operation under vibration conditions.
How does it integrate with other modules?
Fully compatible with HIQuad input/output modules and related HIMA components.
Is maintenance straightforward?
Yes, plug-and-play design allows quick replacement without downtime.
Does it support real-time processing?
Yes, optimized for deterministic, real-time automation tasks.
Can it be mounted in panels or racks?
Yes, compact dimensions allow installation in dense control cabinets.
Is the module future-proof for system expansions?
Yes, designed to accommodate additional I/O and network modules.
What is its durability rating?
Industrial-grade construction ensures long-lasting performance in harsh environments.
