Introduction

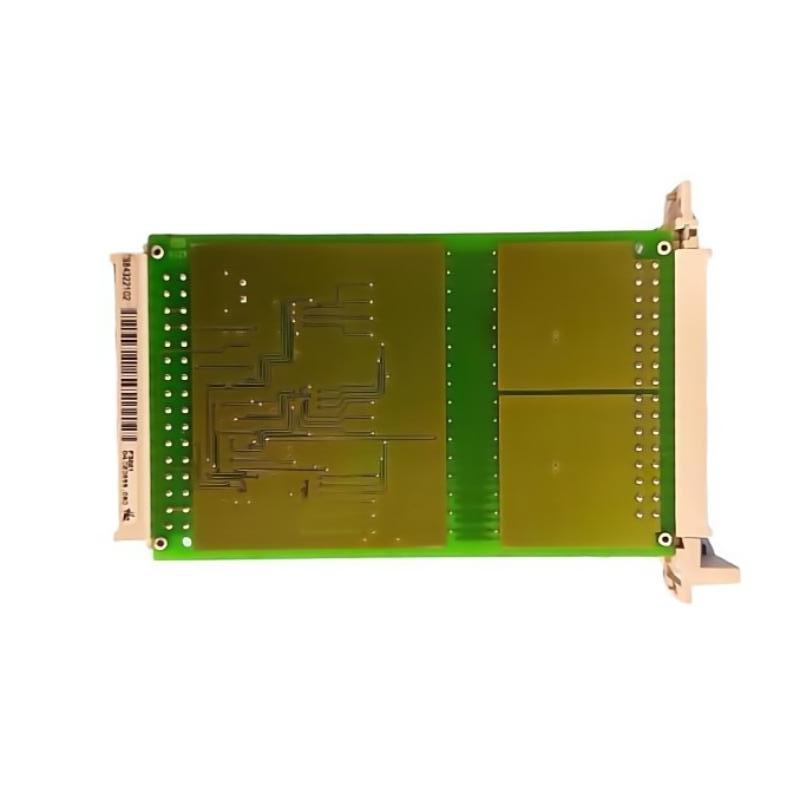

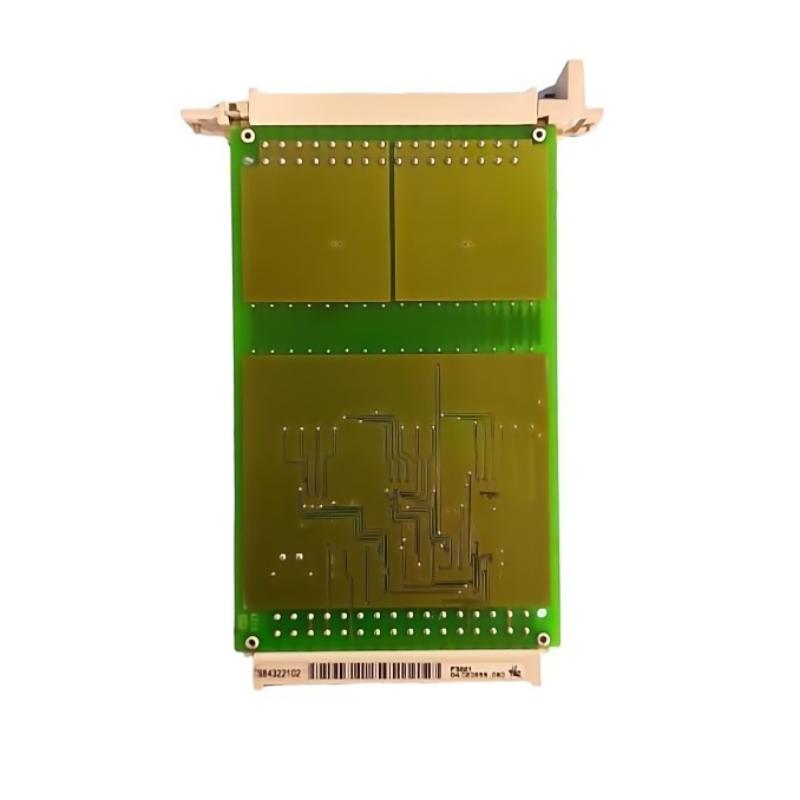

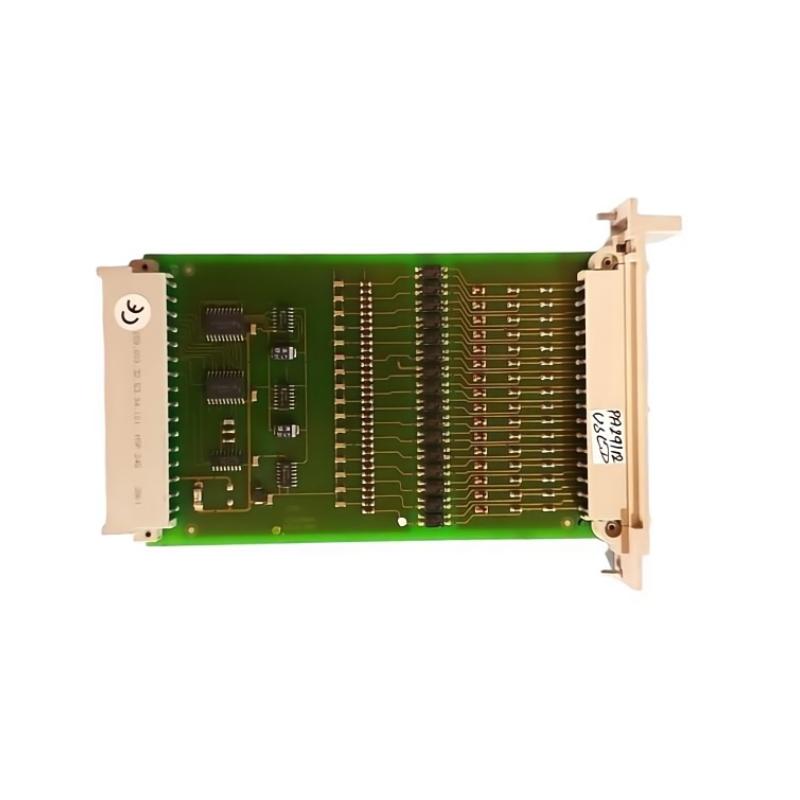

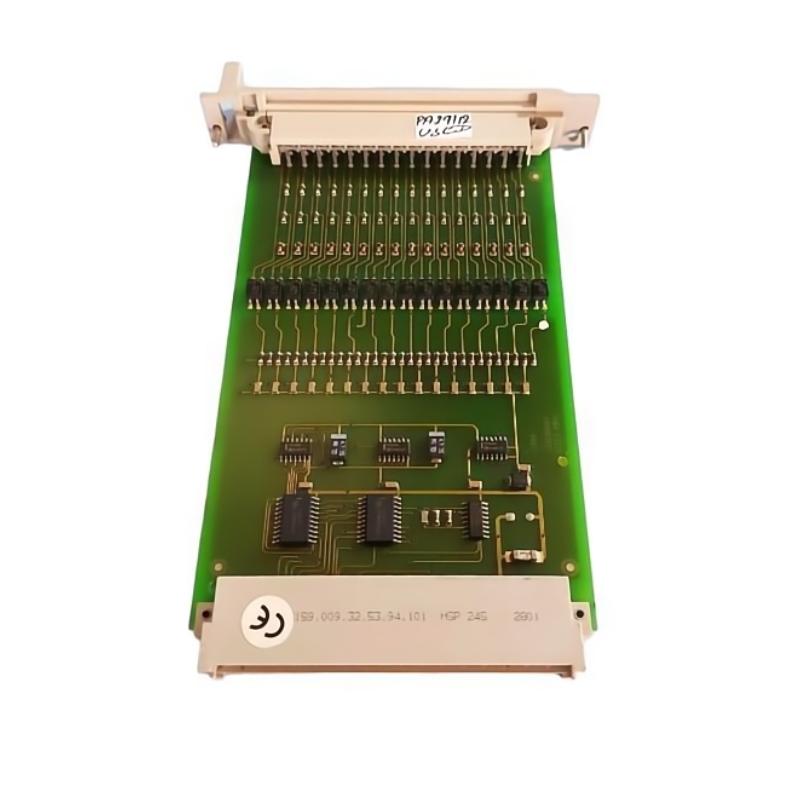

The HIMA F3223 Digital Input Module is a high-performance, compact solution for discrete signal acquisition in industrial automation and safety-critical systems. With dimensions of 25 × 127 × 203 mm and a lightweight 0.25 kg (0.55 lb), it is perfect for panel- or rack-mounted installations with limited space. Engineered for durability and precision, the F3223 ensures reliable detection of digital signals in SIL 3-compliant safety networks. Its plug-and-play design simplifies installation, maintenance, and system integration while providing robust performance in demanding industrial environments.

Technical Specifications

Specification	Details
Dimensions	25 × 127 × 203 mm
Shipping Weight	0.25 kg (0.55 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Digital
Compatibility	HIQuad and HIMA modular systems
Mounting	Panel or rack
Construction Material	Industrial-grade metals & plastics
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA F3223 Digital Input Module is designed for reliable digital signal acquisition in industrial automation and safety systems. Typical applications include:

Monitoring and processing discrete signals from sensors, switches, and field devices.
Integration into SIL 3-compliant safety networks in energy, chemical, and manufacturing industries.
Panel- and rack-mounted automation systems requiring precise digital input detection.
Expansion or replacement of existing digital input modules in high-density cabinets.
Industrial control loops for discrete signal monitoring and safety applications.

Advantages

The F3223 Digital Input Module combines precision, durability, and compact installation:

Compact Footprint: Measures 25 × 127 × 203 mm, ideal for space-limited installations.
Accurate Digital Signal Processing: Ensures reliable detection of discrete signals.
Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature changes.
Plug-and-Play Design: Simplifies installation and reduces maintenance downtime.
Seamless System Integration: Fully compatible with HIQuad and HIMA modular systems.

Technical FAQs

What types of signals does the F3223 handle?
Digital input signals only.
Can it be used in SIL-rated systems?
Yes, supports SIL 3-compliant safety networks.
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for high-vibration industrial environments?
Yes, designed for reliable operation under vibration conditions.
Can it be mounted in panels or racks?
Yes, compact dimensions allow flexible installation.
How durable is the module?
Industrial-grade metals and plastics ensure long-lasting performance.
Is maintenance straightforward?
Yes, plug-and-play design allows quick replacement without downtime.
Does it support redundant input configurations?
Yes, can be integrated in redundant safety input systems.
Are there variants for analog signals?
Yes, HIMA offers analog input modules for mixed-signal systems.
Is it suitable for hazardous industrial environments?
Yes, engineered to meet industrial safety and reliability standards.
