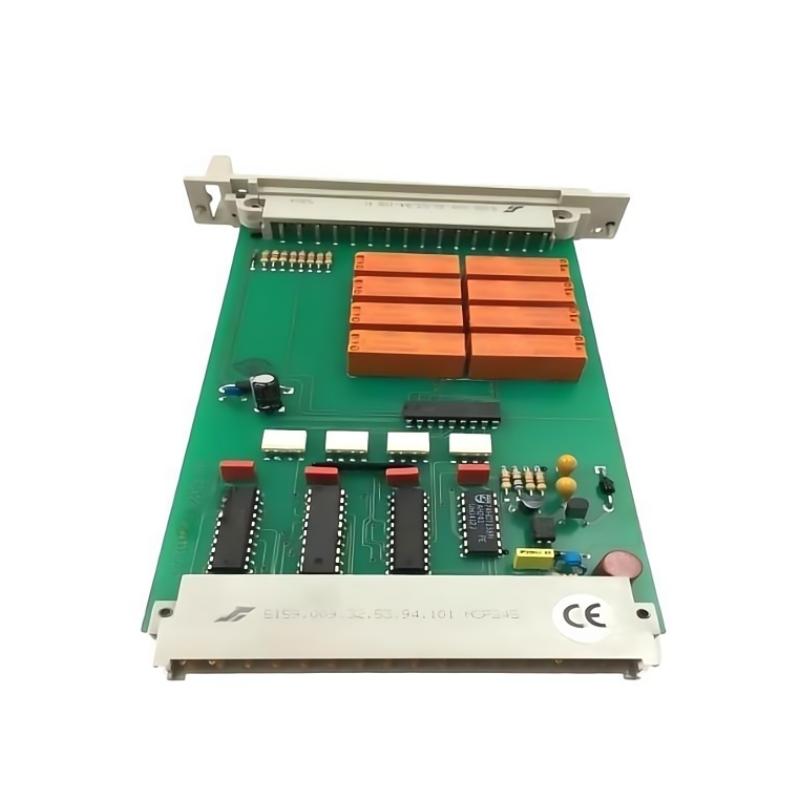

HIMA F3422 981342202 Relay Module

Applications

The HIMA F3422 Relay Module is engineered for reliable signal switching and control in industrial automation and safety systems. Typical applications include:

• Switching and controlling actuators, relays, and field devices in HIQuad and HIMA modular systems.
• SIL 3-compliant safety networks in chemical, energy, manufacturing, and transportation industries.
• Panel- and rack-mounted automation systems requiring precise relay activation.
• Expansion or replacement of existing relay modules in high-density cabinets.
• Integration into industrial control loops for critical signal routing and switching.

Advantages

The F3422 Relay Module combines precision, reliability, and compact integration:

• Compact Footprint: Measures 25 × 127 × 203 mm, suitable for space-limited installations.
• Accurate Relay Control: Ensures reliable activation of connected devices in industrial networks.
• Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature variations.
• Plug-and-Play Installation: Simplifies setup, maintenance, and module replacement.
• Seamless System Integration: Fully compatible with HIQuad and HIMA modular systems.

Technical FAQs

1. What is the primary function of the F3422?
   It serves as a relay module for switching and controlling field devices.
2. Can it be used in SIL-rated systems?
   Yes, supports SIL 3-compliant safety networks.
3. What is the operating temperature range?
   -20°C to 70°C.
4. Is it suitable for high-vibration industrial environments?
   Yes, designed for reliable relay operation under vibration.
5. Can it be mounted in panels or racks?
   Yes, compact dimensions allow flexible installation.
6. How durable is the module?
   Industrial-grade metals and plastics ensure long-lasting performance.
7. Is maintenance straightforward?
   Yes, plug-and-play design allows quick replacement without downtime.
8. Does it support redundant relay configurations?
   Yes, can be integrated into redundant safety switching systems.
9. Are there variants for different relay types?
   Yes, HIMA offers different relay modules optimized for various load types.
10. Is it suitable for hazardous industrial environments?
    Yes, engineered to meet industrial safety and reliability standards.
