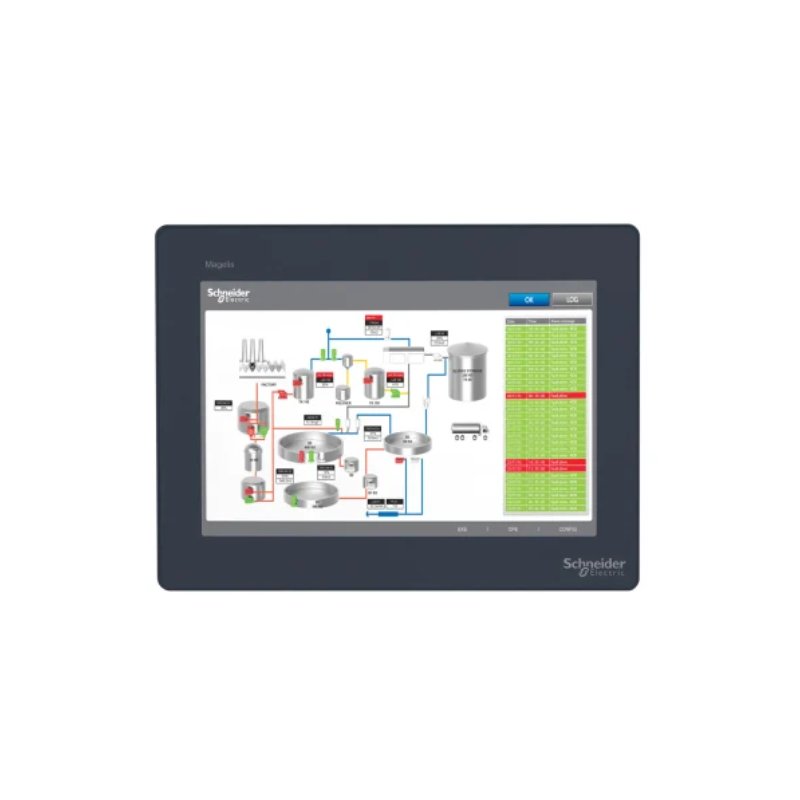

The Schneider Electric HMIDT551 is a high-performance Magelis GTU series advanced HMI touchscreen panel, designed for industrial automation environments requiring intuitive operator interaction, real-time process visualization, and robust multi-protocol communication.
It combines a modern touchscreen interface with strong industrial-grade protection and wide connectivity options, making it ideal for machine control systems, SCADA visualization, and factory automation. Its modular architecture also supports flexible integration into complex control networks, helping operators achieve faster decision-making and improved production efficiency.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Advanced Touchscreen HMI Panel |
| Series | Magelis GTU |
| Display Size | 10.1 inch TFT LCD |
| Resolution | 1280 × 800 pixels |
| Display Colors | 262K colors |
| Touch Type | Single-touch resistive |
| Supply Voltage | 12–24 V DC |
| Power Consumption | ~6.5 W |
| Communication | Ethernet, Modbus, serial interfaces |
| Processor | Industrial embedded CPU |
| Backlight Life | ~50,000 hours |
| Protection Rating | IP66 / IP67 (front panel) |
| NEMA Rating | NEMA 4X |
| Installation | Indoor panel mounting |
| Cooling Type | Natural convection |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 60°C |
| Standards | IEC 61131-2, UL 508, CSA compliant |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 268.5 × 198.5 × 67 mm |
| Weight | approx. 2.5 kg |
Recommended Related Models
- HMIDT541 – smaller 7-inch GTU HMI panel
- HMIGTO2310 – next-generation Harmony GTU replacement
- HMIG5U series – high-performance industrial HMI upgrades
- Modicon M340 + HMI systems – integrated PLC + visualization setup
- Magelis STO series – compact operator interface solutions
