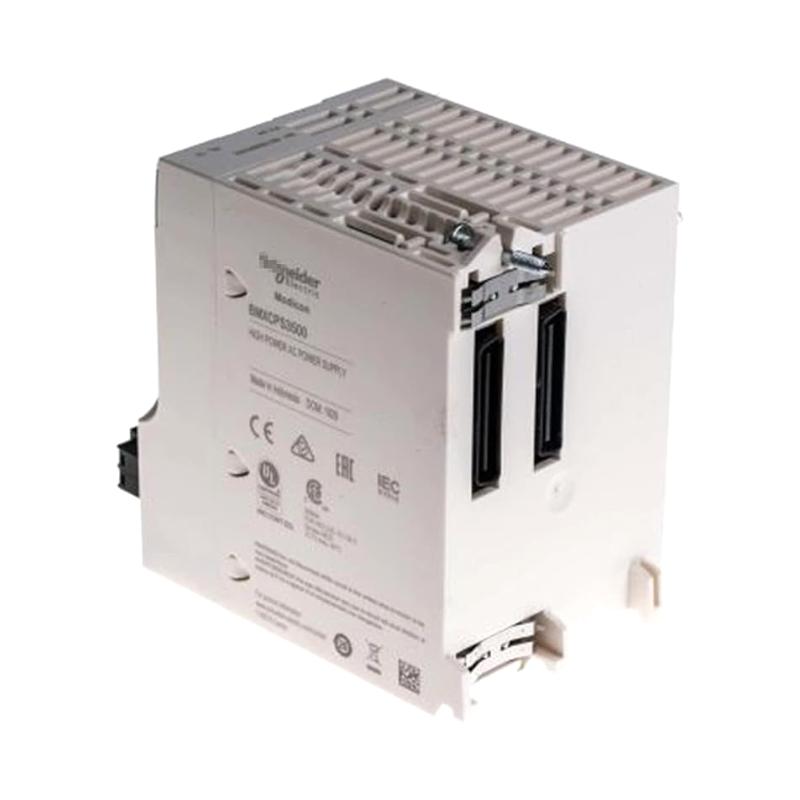

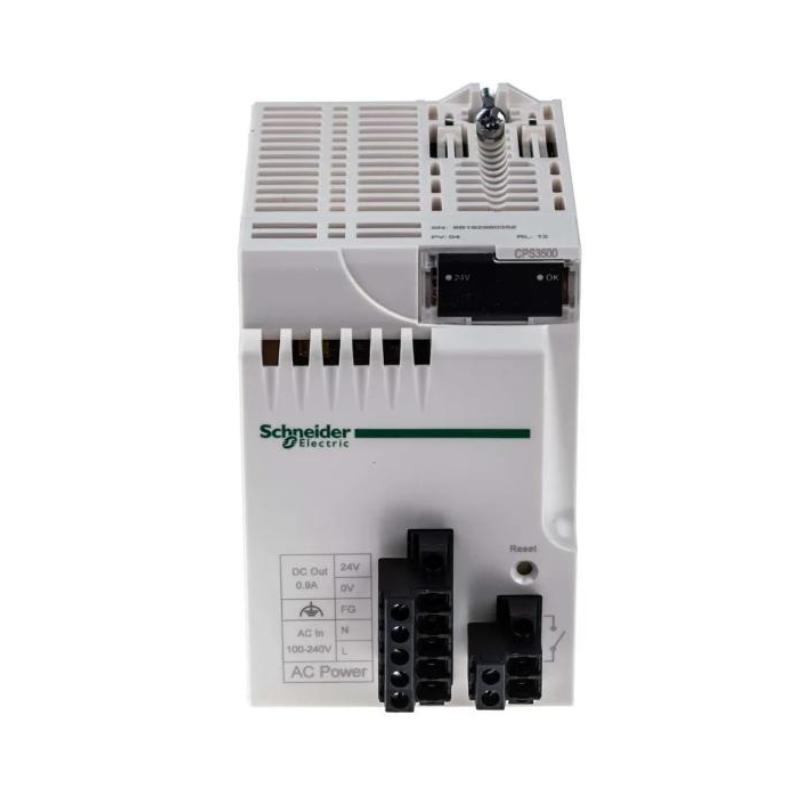

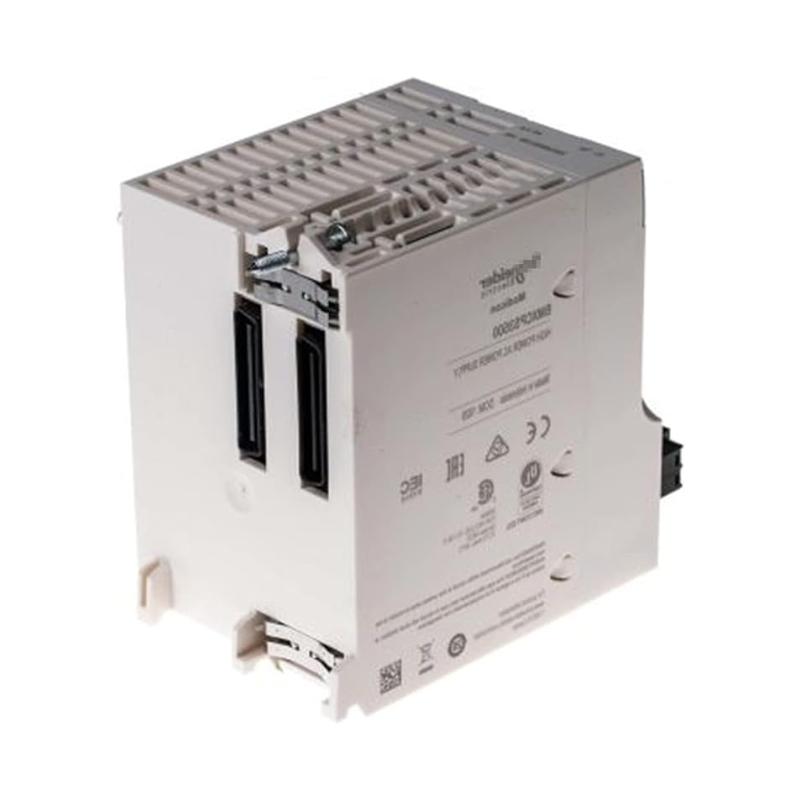

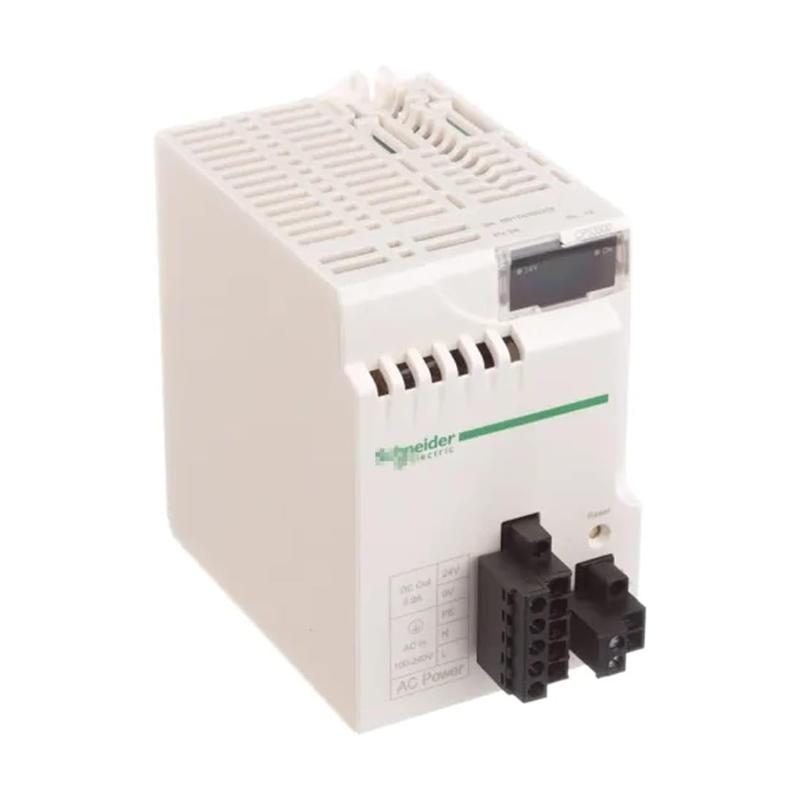

The Schneider Electric BMXCPS3500 is a high-reliability Modicon X80 series power supply module designed to provide stable and efficient energy distribution for Modicon M340 and M580 automation platforms.
Engineered for medium to large-scale industrial control systems, it delivers multiple regulated output rails for processors, I/O modules, and sensors. Its robust electrical design ensures continuous operation even in demanding environments, making it a trusted backbone component in modern PLC architectures and retrofit automation systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Supply Module |
| Series | Modicon X80 |
| Input Voltage | 100–240 VAC |
| Voltage Range | 85–264 VAC |
| Frequency | 50/60 Hz (47–63 Hz) |
| Output Power | 36 W |
| Output Rails | 3.3 V DC / 24 V DC (I/O, processor, sensors) |
| 3.3V Output | Up to 4.5 A |
| 24V Output | Up to 1.3 A (I/O & processor), 0.9 A (sensor) |
| Protection | Overload, short-circuit, overvoltage |
| Inrush Current | 30–60 A |
| Insulation | ≥100 MΩ primary/secondary |
| Mounting Type | Rack-mounted (X80 backplane) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Protection Rating | IP20 |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 15.59 × 15.407 × 13.263 cm (≈ 156 × 154 × 133 mm) |
| Weight | approx. 0.36 – 0.49 kg |
Recommended Related Models
- BMXCPS3020 – lower power X80 supply module
- BMXCPS4002 / BMXCPS4022 – higher capacity power supply variants
- BMXCPS2000 – compact entry-level X80 power module
- Modicon M340 power modules – alternative platform integration
- Modicon M580 redundant power systems – high-availability architecture
