Introduction

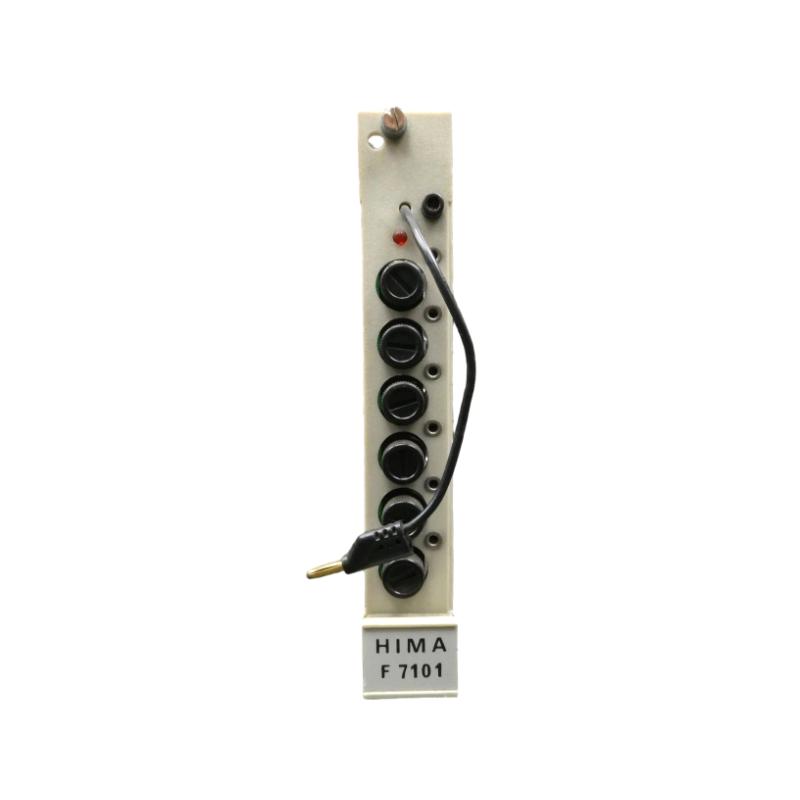

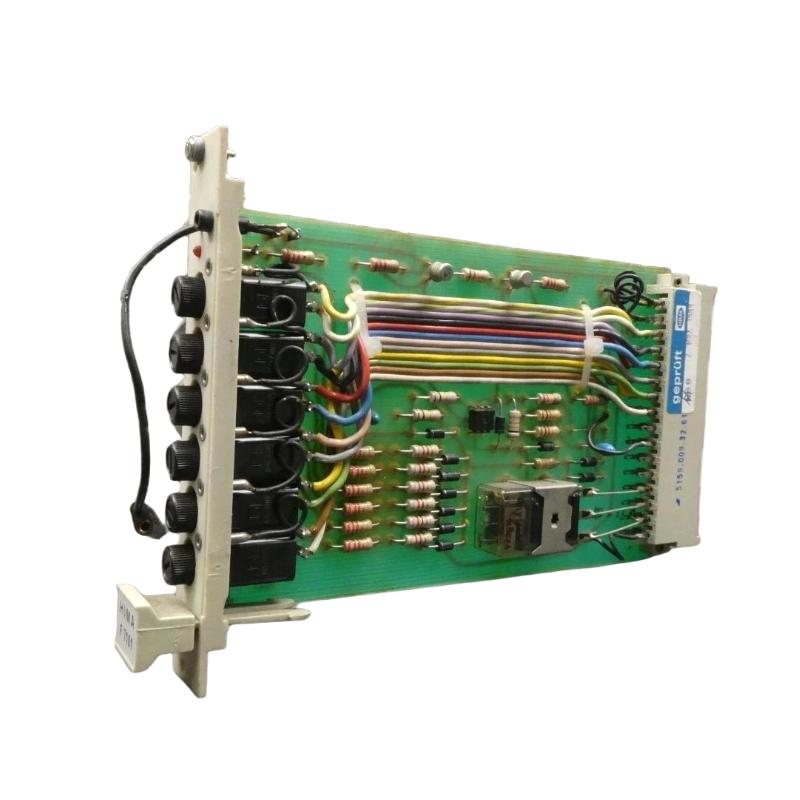

The HIMA F7101 Printed Circuit Board Module is a high-precision, compact solution for signal processing in industrial automation and safety-critical systems. With dimensions of 160 × 25 × 120 mm and a lightweight 0.136 kg (0.30 lb), it is ideal for panel- or rack-mounted systems with limited space. Engineered for reliability and precision, the F7101 ensures stable operation of both analog and digital signals in SIL 3-compliant safety networks. Its plug-and-play design simplifies installation, maintenance, and system integration while providing durable performance in demanding industrial environments.

Technical Specifications

Specification	Details
Dimensions	160 × 25 × 120 mm
Shipping Weight	0.136 kg (0.30 lb)
Operating Temperature	-20°C to 70°C
Signal Types	Analog & Digital
Compatibility	HIQuad and HIMA modular systems
Mounting	Panel or rack
Construction Material	Industrial-grade PCB materials
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	SIL 3-capable systems

Applications

The HIMA F7101 Printed Circuit Board (PCB) Module is designed for reliable signal processing and integration in industrial automation and safety systems. Typical applications include:

Serving as an internal PCB module within HIQuad and HIMA modular systems.
Processing analog and digital signals in SIL 3-compliant safety networks.
Panel- and rack-mounted automation systems requiring compact and precise modules.
Replacement or upgrade of existing PCB modules for improved reliability.
Supporting high-density, multi-channel industrial control systems.

Advantages

The F7101 PCB Module offers precision, durability, and efficient integration:

Compact Footprint: Measures 160 × 25 × 120 mm, ideal for dense installations.
Reliable Signal Processing: Ensures accurate handling of analog and digital signals.
Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature changes.
Plug-and-Play Design: Simplifies installation and reduces maintenance downtime.
Seamless System Compatibility: Fully compatible with HIQuad and HIMA modular systems.

Technical FAQs

What is the primary function of the F7101?
It serves as a core PCB module for processing analog and digital signals.
Can it be used in SIL-rated systems?
Yes, supports SIL 3-compliant safety networks.
What is the operating temperature range?
-20°C to 70°C.
Is it suitable for high-vibration environments?
Yes, designed for stable performance under vibration.
Can it be mounted in panels or racks?
Yes, compact dimensions allow flexible installation.
How durable is the module?
Industrial-grade PCB materials ensure long-lasting performance.
Is maintenance straightforward?
Yes, plug-and-play design allows quick replacement without downtime.
Does it support both analog and digital signals?
Yes, capable of handling multiple signal types within the system.
Is it compatible with other HIMA modules?
Yes, fully compatible with HIQuad I/O, CPU, and relay modules.
Is it suitable for hazardous industrial environments?
Yes, engineered to meet industrial safety and reliability standards.
