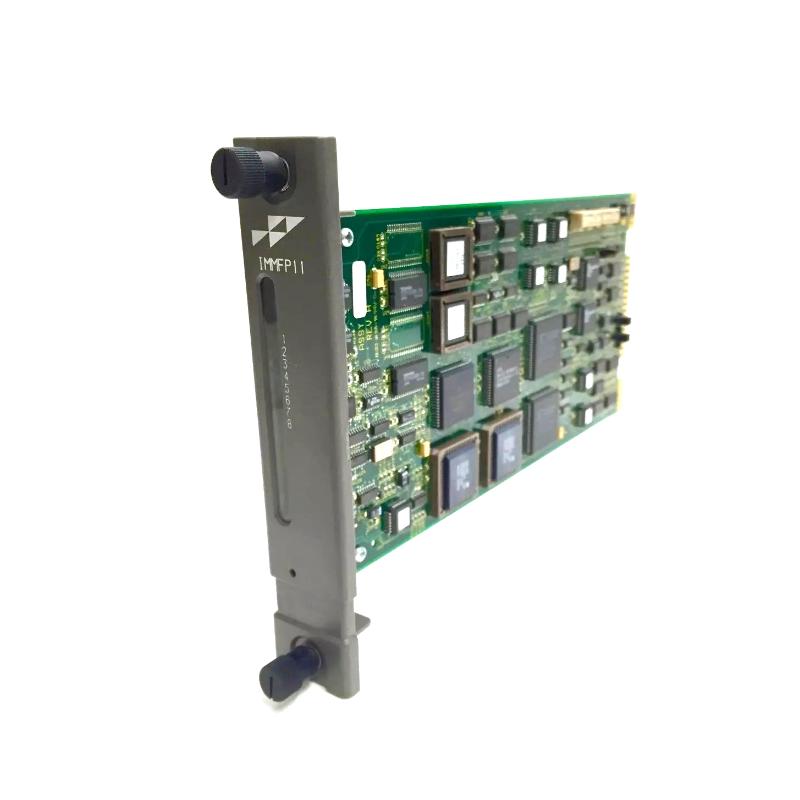

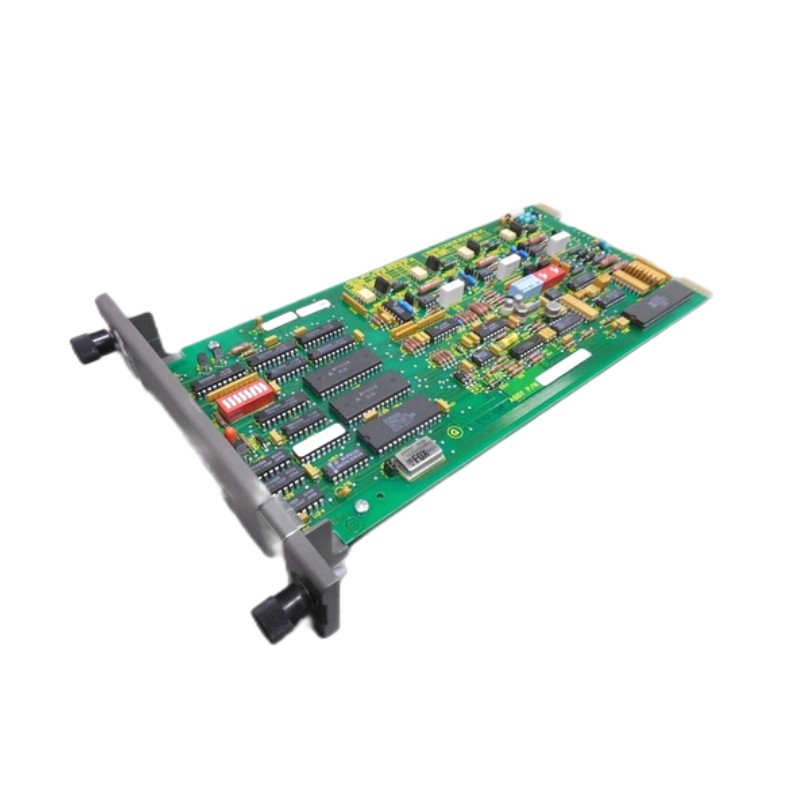

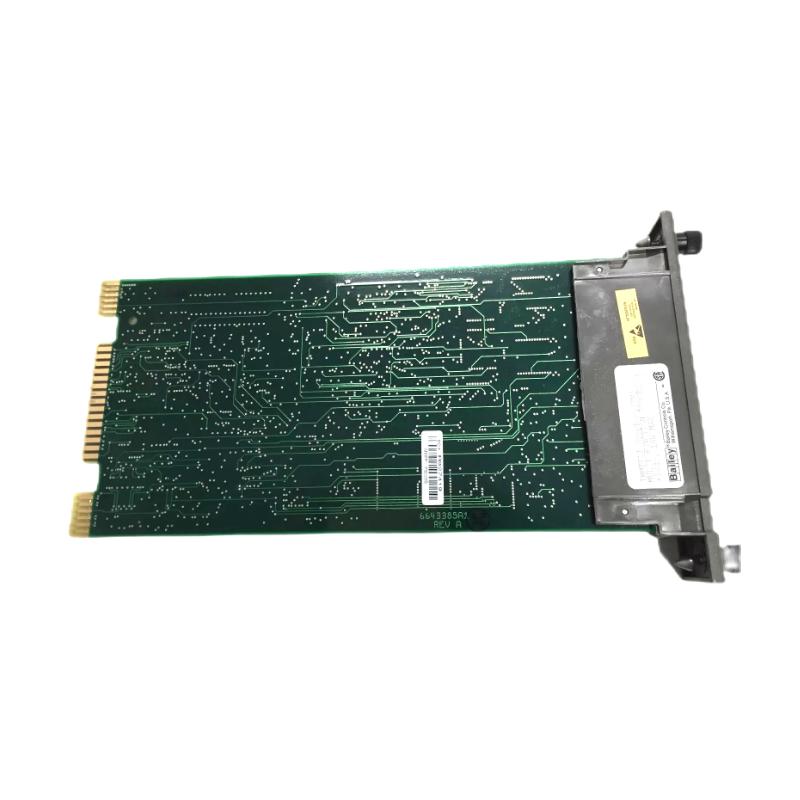

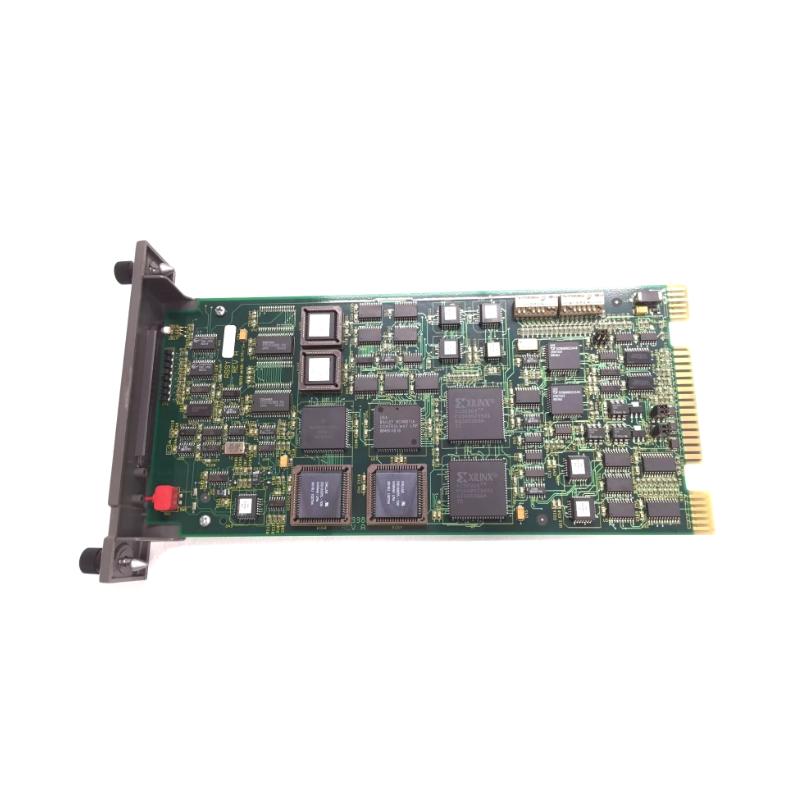

The ABB Bailey IMMFP11 is a Multifunction Processor Module used in the INFI 90 / Symphony distributed control system (DCS). It is designed to execute advanced control strategies for industrial processes such as loop control, sequential logic, batch processing, and data acquisition.
As one of the core processing modules in ABB’s legacy Bailey architecture, IMMFP11 acts as the “brain” of the control rack—coordinating I/O modules, executing control logic, and ensuring stable real-time process automation in mission-critical environments like power plants and heavy industry.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Multifunction Processor Module |
| System | ABB Bailey INFI 90 / Symphony DCS |
| Processor | 32-bit microprocessor |
| Memory | 256 KB ROM / 256 KB RAM / 64 KB NVRAM |
| Power Requirement | +5 VDC @ 2 A (approx. 10 W) |
| Control Functions | Loop, sequence, batch, advanced control |
| Communication | Controlway / Cnet / Expander Bus |
| Serial Ports | RS-232 / RS-485 (system dependent) |
| Scan Capability | High-speed real-time process execution |
| Mounting Type | Single-slot INFI 90 rack module |
| Operating Temperature | 0°C to 70°C |
| Humidity | 5%–90% non-condensing |
| Certifications | CSA / FM approved (industrial control use) |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 298 × 35 × 178 mm |
| Weight | approx. 0.3 – 1.0 kg (variant dependent) |
