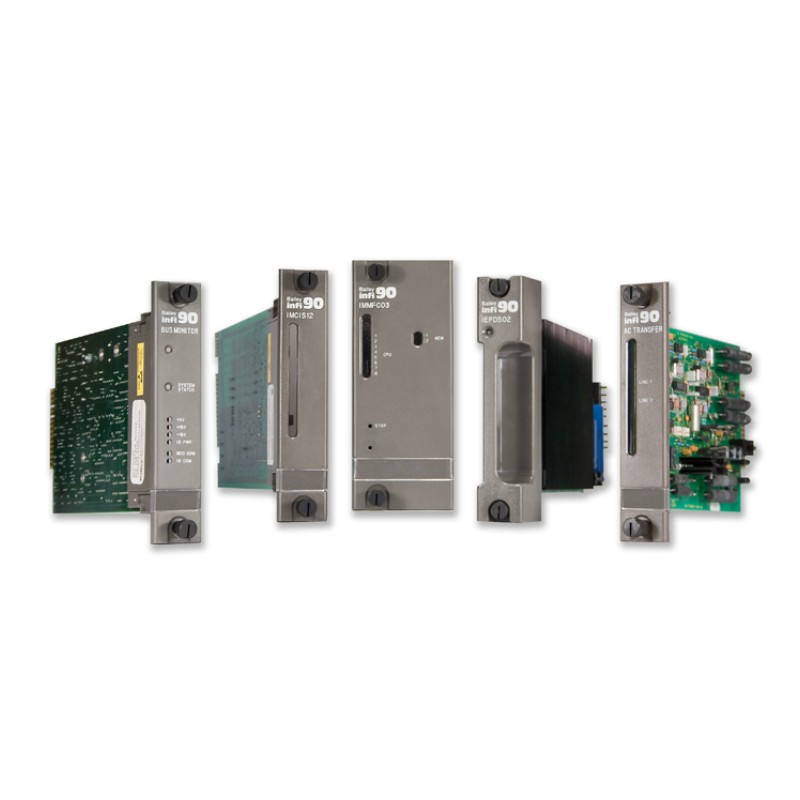

The ABB Bailey IMRAE11 is an Analog Input Module used in the INFI 90 distributed control system (DCS). It is designed to acquire and condition analog signals from field instrumentation such as pressure transmitters, temperature sensors, flow meters, and other process measurement devices.
This module plays a critical role in industrial automation by converting real-world analog signals into digital data that can be processed by ABB Bailey controllers. It is widely used in power generation, chemical processing, oil & gas, and heavy industrial systems, where accurate signal acquisition and system stability are essential.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog Input Module |
| System | ABB Bailey INFI 90 DCS |
| Input Channels | 8 differential analog inputs |
| Signal Types | 4–20 mA / 1–5 V DC (field configurable) |
| Resolution | 12-bit A/D conversion |
| Input Impedance | High impedance (>1 MΩ typical) |
| Accuracy | ±0.1% of full scale (typical) |
| Isolation | Channel-to-channel isolation |
| Power Supply | +5 V DC |
| Current Consumption | ~500–700 mA |
| Communication | INFI 90 backplane bus |
| Module Format | Single-slot rack-mounted PCB |
| Operating Temperature | 0°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Protection Class | Industrial control environment rated |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 37 × 314 × 178 mm |
| Weight | approx. 0.35 – 0.55 kg |
