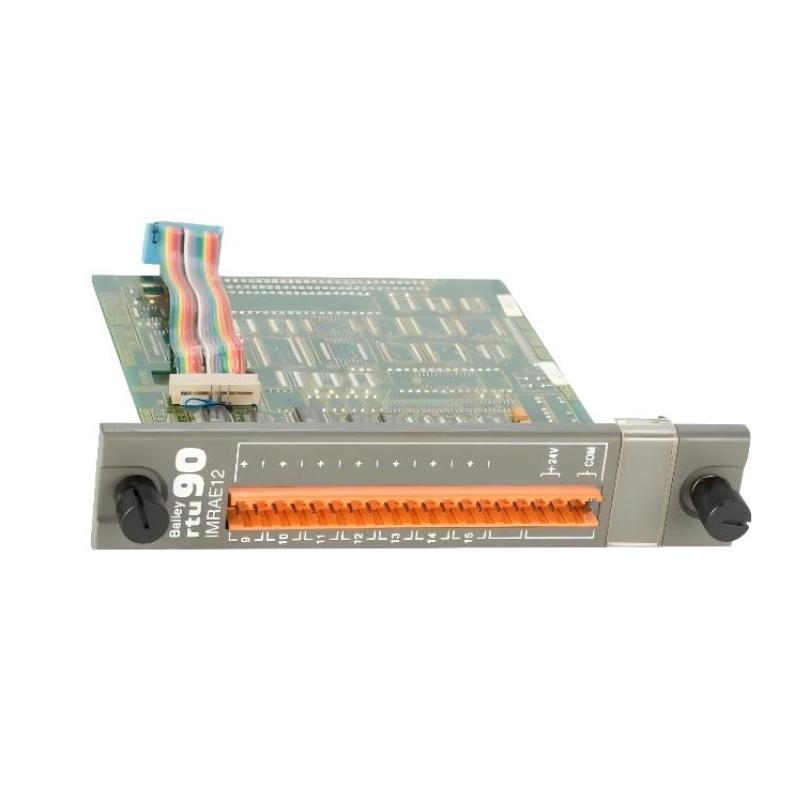

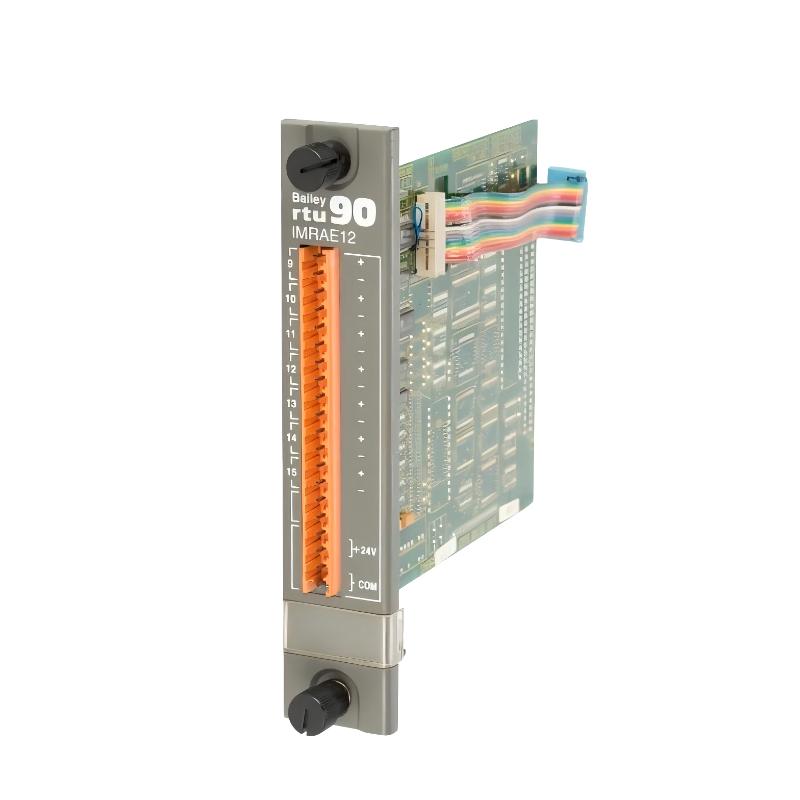

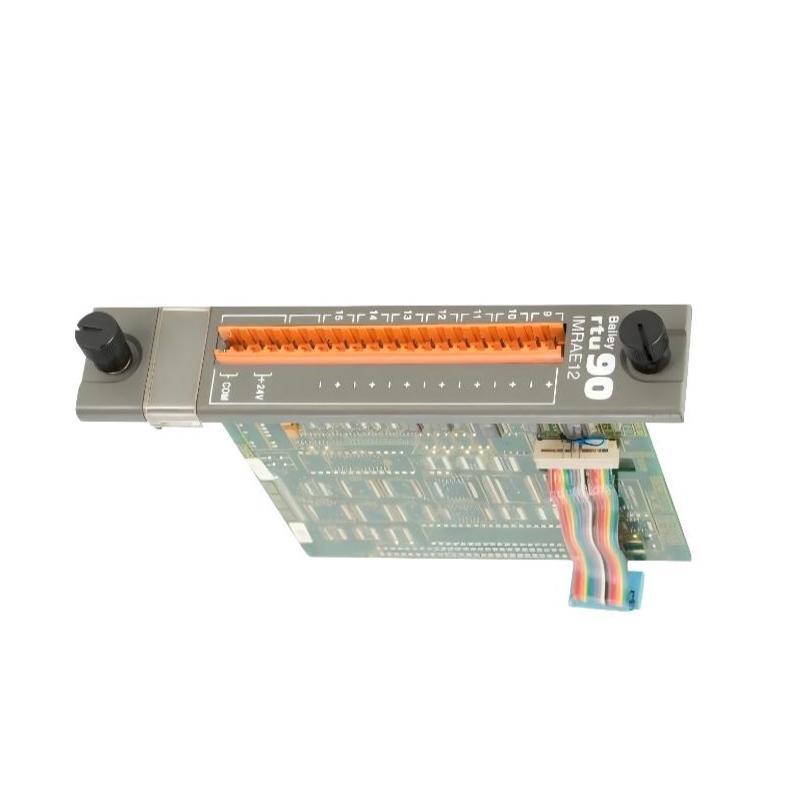

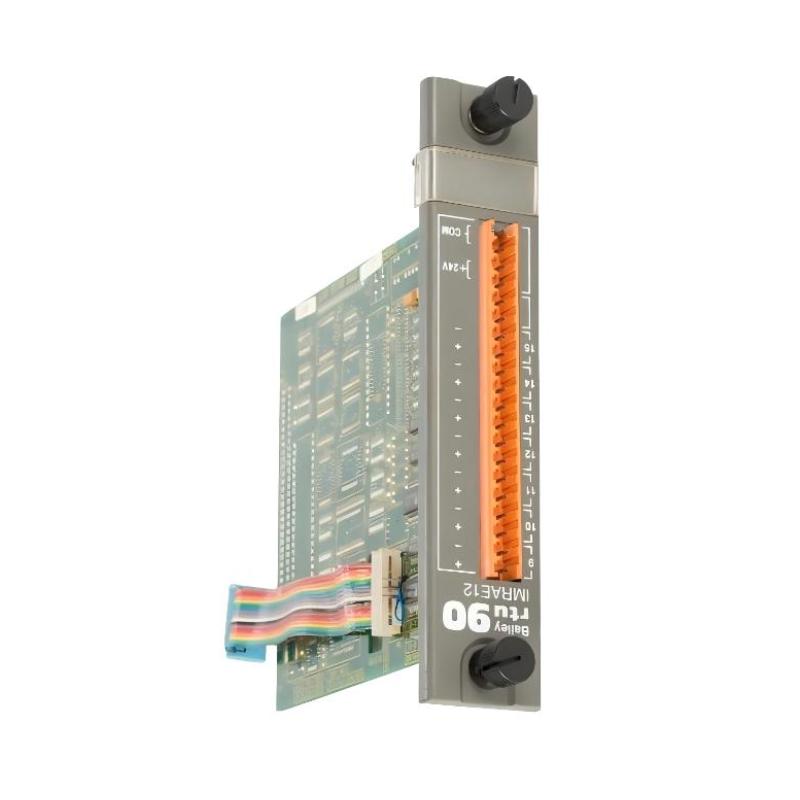

The ABB Bailey IMRAE12 is a high-reliability Analog Input Module used within the INFI 90 distributed control system (DCS). It is designed to acquire, condition, and convert analog signals from industrial field instruments into digital data for process control and monitoring.
As part of ABB’s Bailey automation architecture, IMRAE12 plays a key role in ensuring accurate real-time measurement of process variables such as pressure, temperature, flow, and level. It is widely applied in power generation, petrochemical plants, and heavy industrial automation systems, where precision and signal stability are critical.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Analog Input Module |
| System | ABB Bailey INFI 90 DCS |
| Input Channels | 8 differential analog inputs |
| Signal Types | 4–20 mA / 1–5 V DC (configurable) |
| A/D Conversion | 12-bit resolution |
| Accuracy | ±0.1% full scale (typical) |
| Input Isolation | Channel-to-channel isolated |
| Input Impedance | >1 MΩ (high impedance design) |
| Power Supply | +5 V DC |
| Current Consumption | ~550–750 mA |
| Communication | INFI 90 backplane bus |
| Module Type | Single-slot rack-mounted PCB |
| Signal Conditioning | Built-in filtering and scaling |
| Operating Temperature | 0°C to 70°C |
| Humidity | 5%–95% non-condensing |
| Protection Class | Industrial control environment rated |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 37 × 314 × 178 mm |
| Weight | approx. 0.40 – 0.60 kg |
