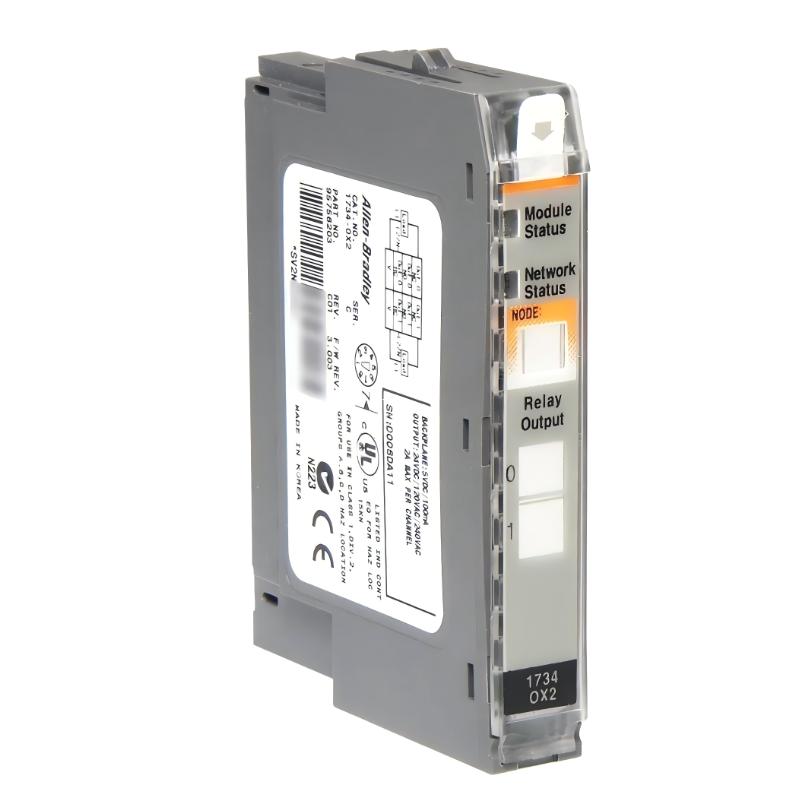

Allen Bradley 1734-OX2 Point I/O Relay Digital Contact Output Module
Allen Bradley 1734-OX2 Point I/O Relay Digital Contact Output Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734-OX2 Product Origin:USA Product Dimensions:77.5 x 12.1 x 56.6 mm Product Weight:0.037 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734-OX2 POINT I/O Relay Digital Contact Output Module is designed to provide reliable isolated switching for industrial control systems. It enables PLC systems to control external devices through two independent relay output channels.
Its compact modular structure allows flexible integration into distributed I/O systems. It is widely used in industrial automation environments where safe and reliable relay switching of AC or DC loads is required.
Technical Specifications
Parameter
Specification
Model
1734-OX2
Product Type
Relay Digital Contact Output Module
Output Channels
2 channels
Output Type
Form C (NO/NC) electromechanical relay
Load Voltage Range
Wide AC/DC industrial range
Isolation
Channel-to-channel isolation
System Compatibility
POINT I/O system
Installation
DIN rail / POINT I/O base
Dimensions
77.5 × 12.1 × 56.6 mm
Weight
0.037 kg
Recommended Alternatives
Model
Product Name
Allen-Bradley 1734-OW2
2-point Relay Output Module
Allen-Bradley 1734-OW4
4-point Relay Output Module
Allen-Bradley 1734-OB2E
Digital Output Module
Allen-Bradley 1734-OA2
AC Output Module
Frequently Selected Companion Models
Model
Product Name
Allen-Bradley 1734-IB8
Digital Input Module
Allen-Bradley 1734-OB8
Digital Output Module
Allen-Bradley 1734-AENTR
Ethernet Adapter Module
Allen-Bradley 1734-TB
Terminal Base
Where It Fits in Industrial Networks
• Distributed I/O systems in PLC and Logix-based automation architectures
• Machine-level control panels switching field devices such as relays and contactors
• Process automation systems requiring isolated relay contact outputs
• Modular POINT I/O expansion for flexible control system design
• Industrial systems translating controller signals into physical switching actions
Key Strengths That Stand Out
• Dual-channel relay output with fully isolated Form C contacts
• Supports a wide voltage range for AC and DC load switching
• Flexible switching capability for mixed industrial applications
• Compact POINT I/O design suitable for dense cabinet layouts
• Reliable mechanical relay operation for industrial switching tasks
Technical FAQs
1. What is the main function of this module?
It provides 2 relay-based digital outputs for switching external devices.
2. What type of outputs does it use?
It uses Form C electromechanical relay contacts with NO and NC terminals.
3. What loads can it switch?
It can switch both AC and DC loads such as contactors, lamps, and solenoids.
4. Is the output electrically isolated?
Yes, each relay channel is fully isolated from the system.
5. What voltage range does it support?
It supports industrial AC and DC switching within a wide voltage range.
6. Is it suitable for continuous use?
Yes, it is designed for industrial-duty switching applications.
7. What system is it used with?
It is part of the Allen-Bradley POINT I/O modular system.
8. What is the advantage of relay output?
It allows direct switching of different voltage types without signal conversion.
9. Can it handle inductive loads?
Yes, it is designed to handle common industrial inductive loads.
10. What role does it play in automation systems?
It converts PLC control signals into physical relay switching actions.
