Brand:Allen Bradley PLC Item No.:1734-TB Product Origin:USA Product Dimensions:160 x 12 x 65 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

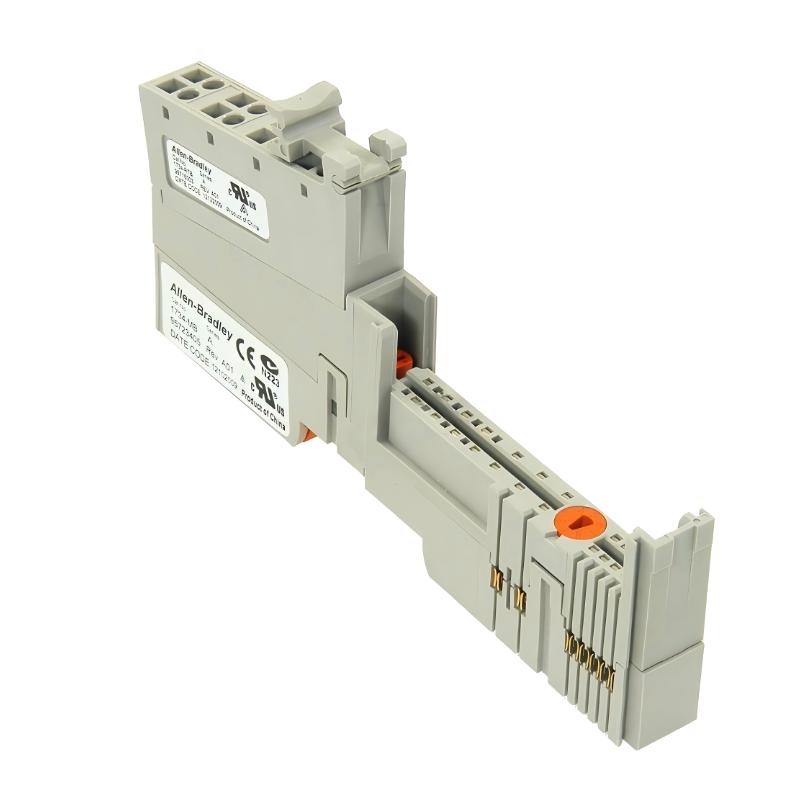

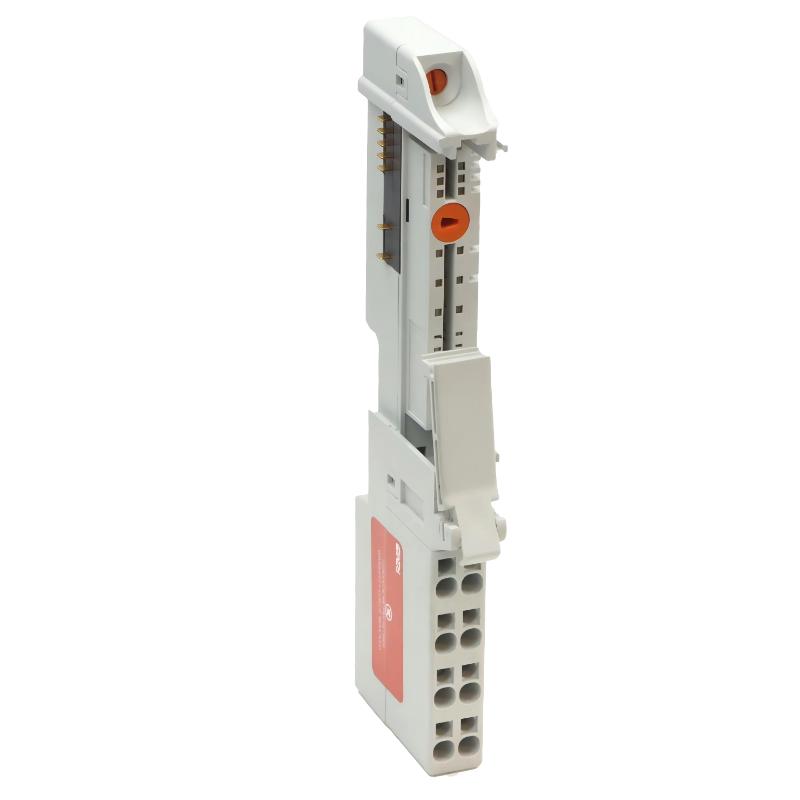

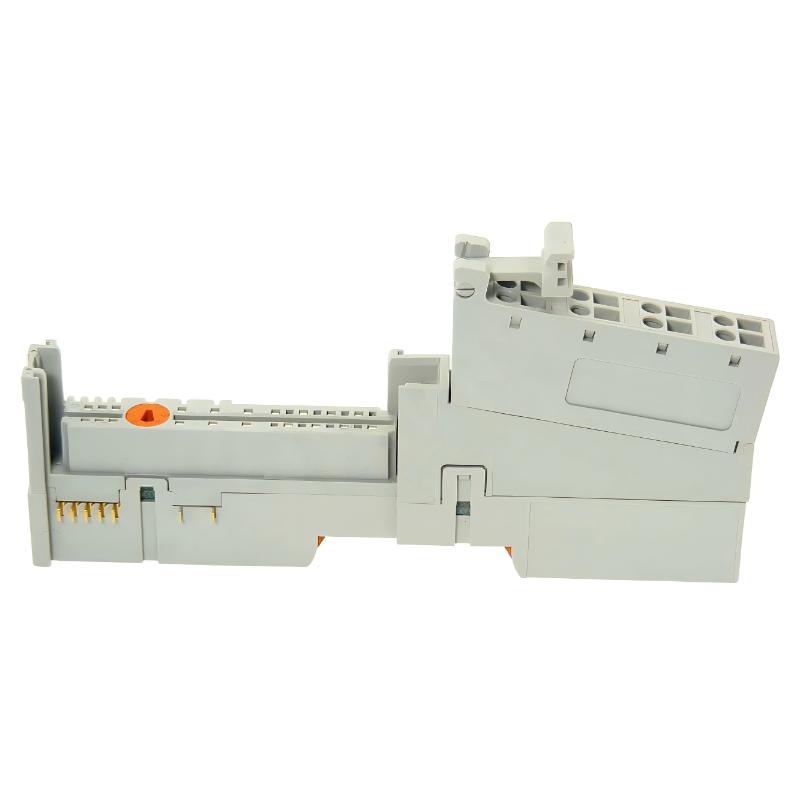

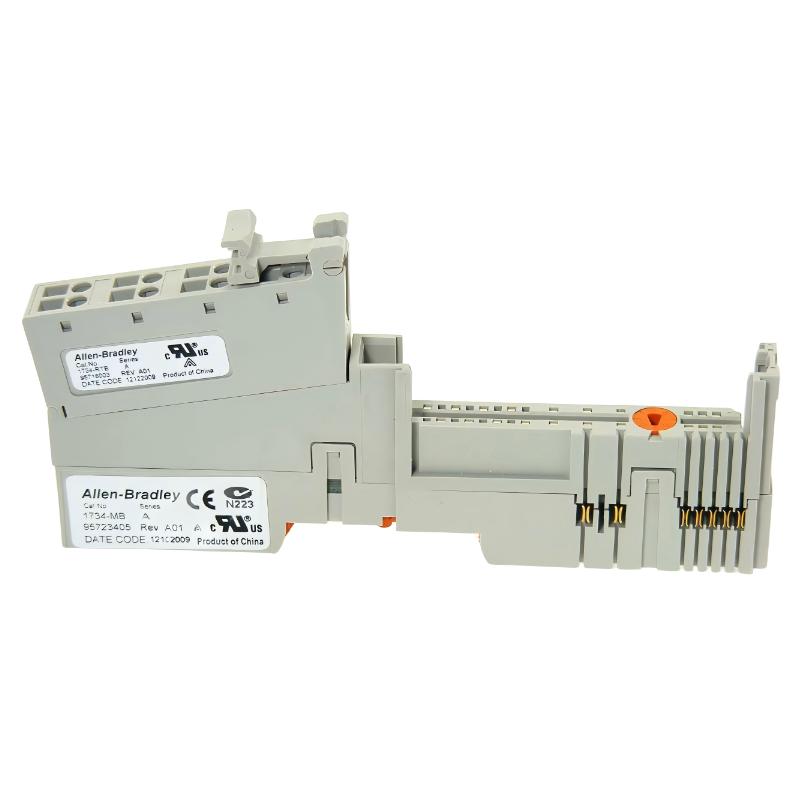

The Allen-Bradley 1734-TB POINT I/O Terminal Dock is a key structural component in POINT I/O systems, providing the wiring and mounting interface for distributed I/O modules. It enables secure electrical connection between field devices and control system modules.
Its modular design supports fast installation and easy replacement of I/O modules without disturbing field wiring. This makes it ideal for industrial automation systems where uptime, flexibility, and structured wiring are essential.
Technical Specifications
Parameter
Specification
Model
1734-TB
Product Type
POINT I/O Terminal Base (Dock)
Wiring Type
Screw-clamp terminal interface
Channel Capacity
8 terminals
Mounting
35 mm DIN rail
System Compatibility
Allen-Bradley POINT I/O system
Maintenance Feature
Module removal without rewiring
Dimensions
160 × 12 × 65 mm
Weight
0.1 kg
Recommended Alternatives
Model
Product Name
Allen-Bradley 1734-TBS
Spring-clamp Terminal Base
Allen-Bradley 1734-TB3
Extended 12-point Terminal Base
Allen-Bradley 1734-TOP
Integrated Terminal Base
Allen-Bradley 1734-RTB
Removable Terminal Block
Frequently Selected Companion Models
Model
Product Name
Allen-Bradley 1734-IB8
Digital Input Module
Allen-Bradley 1734-OB8
Digital Output Module
Allen-Bradley 1734-AENTR
Ethernet Adapter Module
Allen-Bradley 1734-OW4
Relay Output Module
Where It Fits in Industrial Networks
• FOUNDATION layer for POINT I/O distributed control systems in PLC architectures
• Industrial automation cabinets providing wiring interface for digital and analog I/O modules
• Machine-level control systems requiring modular and replaceable field wiring termination
• Process automation panels enabling structured signal distribution and maintenance access
• Factory automation networks supporting fast module swap and standardized wiring layouts
Key Strengths That Stand Out
• Modular terminal base design enables quick I/O module replacement without rewiring
• Stable DIN-rail mounting ensures secure installation in control cabinets
• Supports high-density POINT I/O configurations with clean wiring organization
• Designed for efficient maintenance and reduced system downtime
• Reliable mechanical and electrical connection for industrial environments
Technical FAQs
1. What is the main function of this terminal dock?
It provides the physical mounting and wiring interface for POINT I/O modules.
2. Is it required for POINT I/O operation?
Yes, most POINT I/O modules require a terminal base for field wiring connection.
3. Can modules be replaced without rewiring?
Yes, the module can be removed while keeping the wiring on the base.
4. What type of mounting does it use?
It is designed for standard 35 mm DIN rail installation.
5. Does it support all I/O types?
It supports compatible digital and analog POINT I/O modules.
6. What is the main advantage in maintenance?
It allows fast module replacement, reducing system downtime.
7. Is wiring pre-installed on the base?
Field wiring is connected to the terminal base, not the module itself.
8. Can it be reused with different modules?
Yes, as long as the module is compatible with the base type.
9. Is it suitable for industrial environments?
Yes, it is designed for standard industrial control cabinets.
10. What role does it play in automation systems?
It serves as the interface between field wiring and I/O modules.
