Brand:Allen Bradley PLC Item No.:1734-TOP Product Origin:USA Product Dimensions:144 x 12 x 49 mm Product Weight:0.064 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

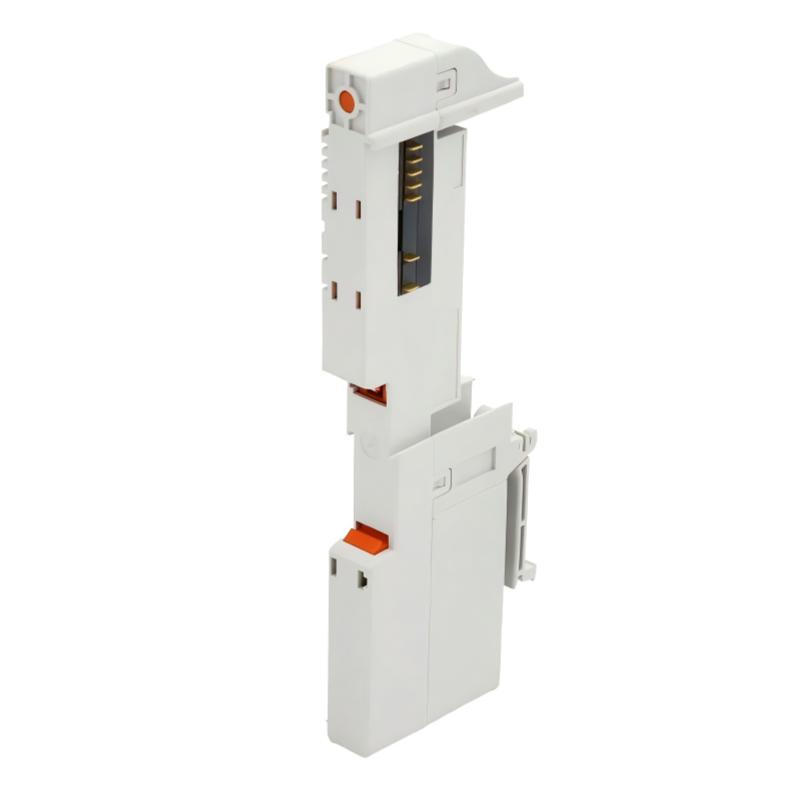

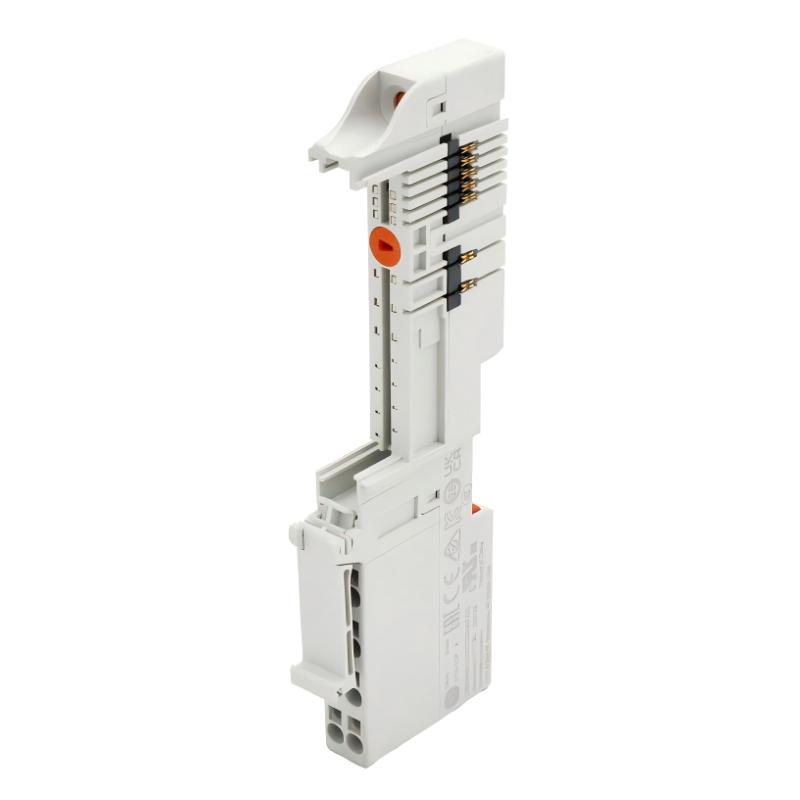

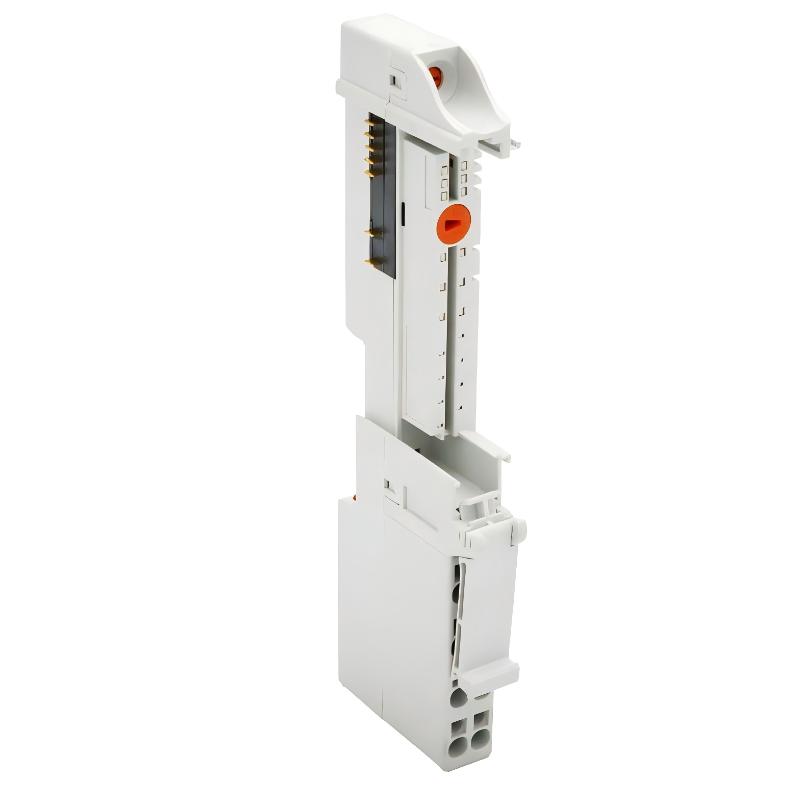

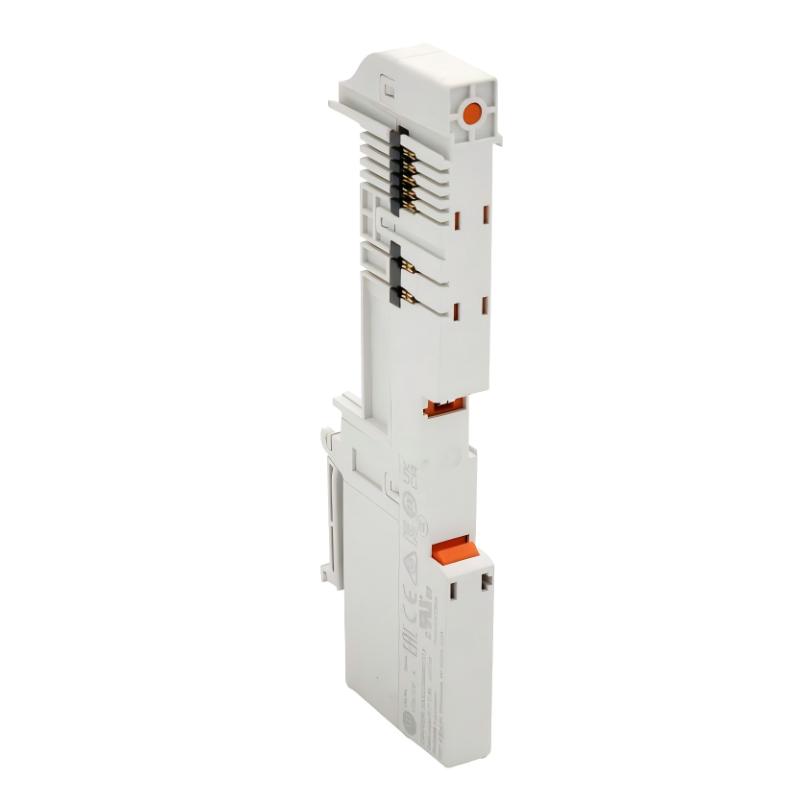

The Allen-Bradley 1734-TOP POINT I/O Terminal Dock is a one-piece terminal base designed to support modular I/O systems in industrial automation. It provides a stable mounting and wiring interface for POINT I/O modules, ensuring organized and reliable field connections.
Its design allows quick module replacement without rewiring, making it highly efficient for maintenance and system expansion. It is widely used in industrial control systems where flexibility, uptime, and structured wiring are essential.
Technical Specifications
Parameter
Specification
Model
1734-TOP
Product Type
POINT I/O Terminal Dock / Base
Terminal Type
Screw or spring clamp (variant-based)
Channel Capacity
8 terminals
Mounting
35 mm DIN rail
System Compatibility
Allen-Bradley POINT I/O systems
Maintenance Feature
Module removal without rewiring
Dimensions
144 × 12 × 49 mm
Weight
0.064 kg
Recommended Alternatives
Model
Product Name
Allen-Bradley 1734-TOPS
Spring Clamp Terminal Base
Allen-Bradley 1734-TB
Terminal Dock Base
Allen-Bradley 1734-TB3
Extended Terminal Base
Allen-Bradley 1734-RTB
Removable Terminal Block
Frequently Selected Companion Models
Model
Product Name
Allen-Bradley 1734-IB8
Digital Input Module
Allen-Bradley 1734-OB8
Digital Output Module
Allen-Bradley 1734-AENTR
Ethernet Adapter Module
Allen-Bradley 1734-OW4
Relay Output Module
Where It Fits in Industrial Networks
• POINT I/O distributed control systems for structured field wiring termination
• PLC-based automation panels using modular I/O expansion architecture
• Industrial control cabinets requiring standardized wiring and module mounting
• Factory automation systems supporting fast maintenance and module replacement
• Machine-level control setups with high-density I/O organization needs
Key Strengths That Stand Out
• One-piece terminal base design simplifies wiring and installation
• Supports quick module removal without disturbing field wiring
• Compact structure optimized for dense POINT I/O configurations
• Improves maintenance efficiency and reduces system downtime
• Strong mechanical stability for industrial control environments
Technical FAQs
1. What is the main function of this terminal dock?
It provides mounting and wiring termination for POINT I/O modules.
2. Can modules be replaced without rewiring?
Yes, the wiring remains on the base during module replacement.
3. What mounting method is used?
It is designed for DIN rail installation in control cabinets.
4. What type of system uses this component?
It is used in Allen-Bradley POINT I/O distributed systems.
5. Is it suitable for industrial environments?
Yes, it is designed for standard industrial automation conditions.
6. Does it support all POINT I/O modules?
It supports compatible POINT I/O digital and analog modules.
7. What is the advantage of a one-piece design?
It reduces installation complexity and improves wiring organization.
8. Can it improve maintenance speed?
Yes, it allows fast module swapping during servicing.
9. Is wiring directly connected to the module?
No, wiring is connected to the terminal base, not the module itself.
10. What role does it play in automation systems?
It serves as the physical interface between field wiring and I/O modules.
