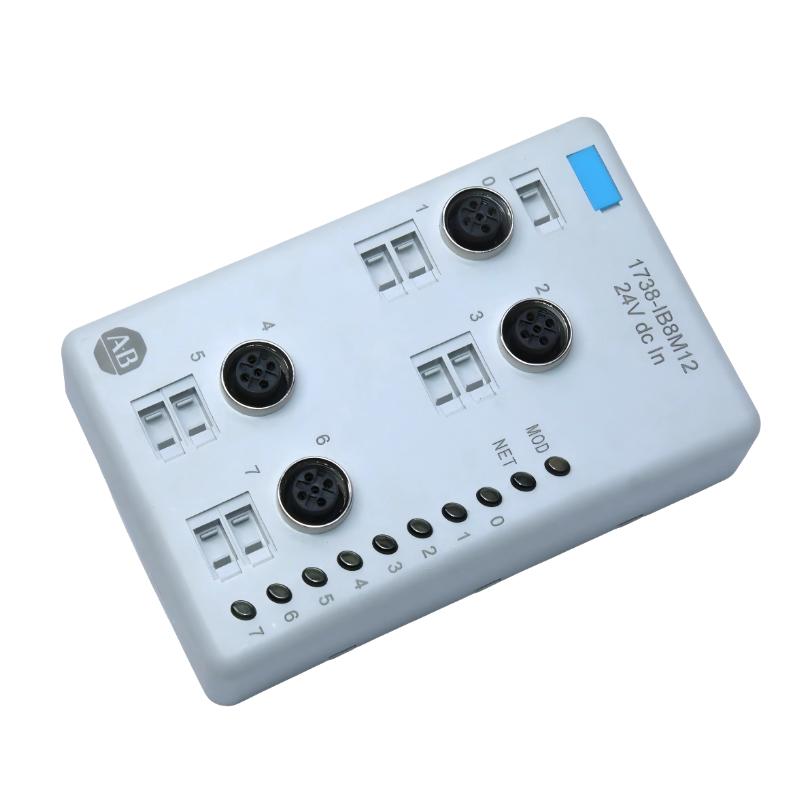

Allen Bradley 1738-IB8M12 ArmorPoint Numeric Input Module
Allen Bradley 1738-IB8M12 ArmorPoint Numeric Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1738-IB8M12 Product Origin:USA Product Dimensions:120 x 42 x 72 mm Product Weight:0.29 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1738-IB8M12 ArmorPoint Numeric Input Module is designed for reliable digital signal acquisition in distributed industrial automation systems. It collects input signals from field sensors and transmits them to the control system through an ArmorPoint network structure.
Its rugged sealed design allows direct installation on machines, making it suitable for demanding environments without the need for protective enclosures. It is widely used in manufacturing and process industries where stable and compact distributed I/O is required.
Technical Specifications
Parameter
Specification
Model
1738-IB8M12
Product Type
ArmorPoint Digital Input Module
Input Channels
8 channels
Input Type
24V DC sinking digital inputs
Connector Type
M12 industrial connector
Installation
On-machine mounting
Environmental Rating
IP67 sealed housing
Operating Temperature
Industrial range (-20°C to 60°C)
Signal Application
Sensor and switch input acquisition
Weight
0.29 kg
Recommended Alternatives
Model
Product Name
Allen-Bradley 1738-IB8M8
ArmorPoint 8-point Input Module
Allen-Bradley 1738-IV8M12
Voltage Input Module
Allen-Bradley 1738-IB4M12
4-point Digital Input Module
Allen-Bradley 1738-IE2C
Analog Input Module
Frequently Selected Companion Models
Model
Product Name
Allen-Bradley 1738-OB8M12
ArmorPoint Output Module
Allen-Bradley 1738-AENTR
Ethernet Network Adapter
Allen-Bradley 1738-OW4M
Relay Output Module
Allen-Bradley 1738-IE2C
Analog Input Module
Where It Fits in Industrial Networks
• Distributed on-machine I/O systems in ArmorPoint architecture for field-level signal collection
• PLC-based automation systems requiring compact multi-channel digital input acquisition
• Industrial machine control networks monitoring sensors such as switches and proximity detectors
• Harsh environment automation setups with sealed, machine-mounted I/O nodes
• Process and manufacturing lines integrating decentralized sensor data into control systems
Key Strengths That Stand Out
• 8-channel high-density digital input design for efficient signal collection
• Rugged IP67 sealed housing suitable for harsh industrial environments
• M12 connector system ensures fast, secure, and vibration-resistant wiring
• Stable 24V DC sensing for standard industrial field devices
• On-machine installation reduces cabinet dependency and wiring complexity
Technical FAQs
1. What is the main function of this module?
It collects 24V DC digital input signals from field sensors and sends them to the controller.
2. What type of signals does it support?
It supports sinking digital input signals from industrial sensors and switches.
3. How many input channels does it provide?
It provides 8 independent digital input channels.
4. What devices are typically connected?
It is commonly used with proximity sensors, push buttons, and limit switches.
5. Is it suitable for harsh environments?
Yes, its sealed design supports dust, water, and industrial vibration exposure.
6. What connector type is used?
It uses M12 industrial connectors for secure field wiring.
7. Does it require a control cabinet?
No, it is designed for direct machine mounting.
8. What voltage level does it use?
It operates with standard 24V DC industrial input signals.
9. Is it suitable for real-time monitoring?
Yes, it provides fast and stable signal acquisition for automation systems.
10. What role does it play in automation systems?
It converts physical sensor signals into digital data for PLC processing.
