Introduction

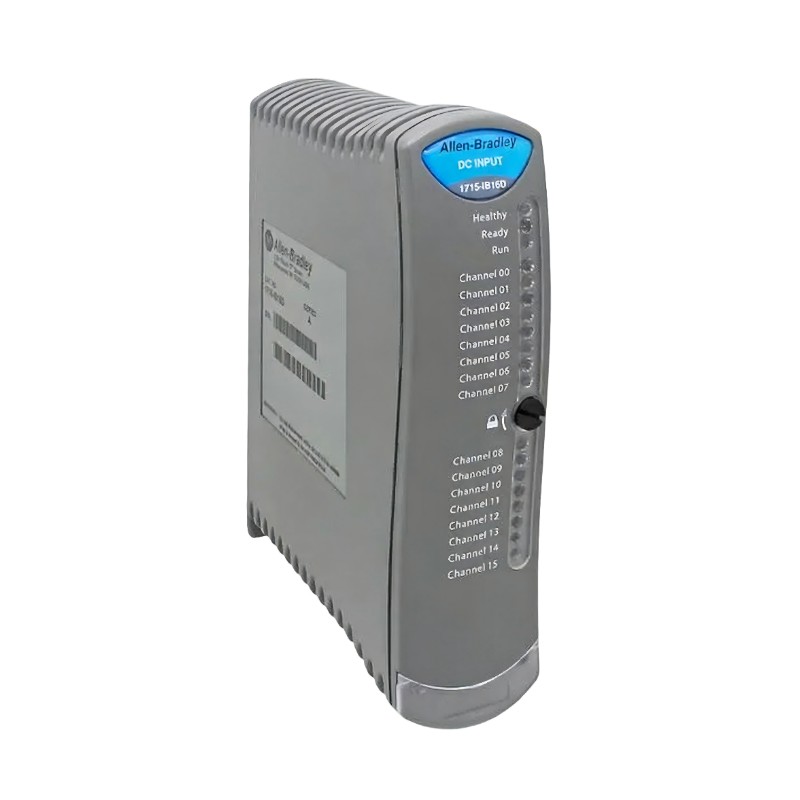

The Allen-Bradley 1715-IB16D 16-Channel Digital Input Module is a compact, high-performance solution for reliable digital signal acquisition in industrial automation systems. With dimensions of 128 × 42 × 166 mm and a lightweight 0.36 kg (0.79 lb), it is ideal for panel- or rack-mounted installations requiring precise monitoring of multiple discrete signals. Engineered for durability and stable operation, the 1715-IB16D ensures accurate input detection under demanding industrial conditions. Its plug-and-play design simplifies installation, maintenance, and integration while delivering robust performance in safety-aware systems.

Technical Specifications

Specification	Details
Dimensions	128 × 42 × 166 mm
Shipping Weight	0.36 kg (0.79 lb)
Channels	16 Digital Inputs
Operating Voltage	24 V DC Nominal
Operating Temperature	-20°C to 60°C
Mounting	Panel or rack
Construction Material	Industrial-grade materials
Vibration Resistance	Yes
Installation	Plug-and-play
Safety Compliance	Compatible with SIL-rated systems

Applications

The Allen-Bradley 1715-IB16D 16-Channel Digital Input Module is designed for robust monitoring of discrete input signals in industrial automation systems. Typical applications include:

Capturing digital signals from sensors, switches, and other field devices.
Integration into compact control panels or modular I/O systems.
SIL-rated or safety-aware systems requiring reliable digital input monitoring.
Manufacturing, energy, and process automation industries for precise system control.
Replacement or expansion of existing digital input modules for higher channel density.

Advantages

The 1715-IB16D Module offers precision, reliability, and ease of integration:

Compact Design: Measures 128 × 42 × 166 mm, ideal for tight panel spaces.
16 Digital Channels: Supports multiple discrete input signals simultaneously.
Industrial-Grade Durability: Resistant to vibration, dust, and temperature variations.
Plug-and-Play Installation: Simplifies setup, integration, and maintenance.
System Compatibility: Seamlessly integrates with Allen-Bradley 1715 modular I/O systems.

Technical FAQs

What is the primary function of the 1715-IB16D?
Monitors 16 discrete input channels for industrial automation systems.
Can it be used in SIL-rated systems?
Yes, designed for safety-aware and SIL-compliant applications.
What is the operating temperature range?
Typically -20°C to 60°C, suitable for industrial environments.
Is it suitable for high-vibration environments?
Yes, engineered for reliable performance under vibration.
Can it be mounted in panels or racks?
Yes, compact dimensions allow flexible installation.
How durable is the module?
Industrial-grade construction ensures long-lasting and reliable operation.
Does it support real-time monitoring?
Yes, it continuously monitors all 16 input channels.
Is maintenance straightforward?
Yes, modular design allows quick replacement without system downtime.
Is it compatible with other Allen-Bradley modules?
Yes, fully compatible with 1715 modular I/O, PLCs, and output modules.
Is it suitable for hazardous industrial environments?
Yes, designed to meet industrial safety and reliability standards.
