Introduction

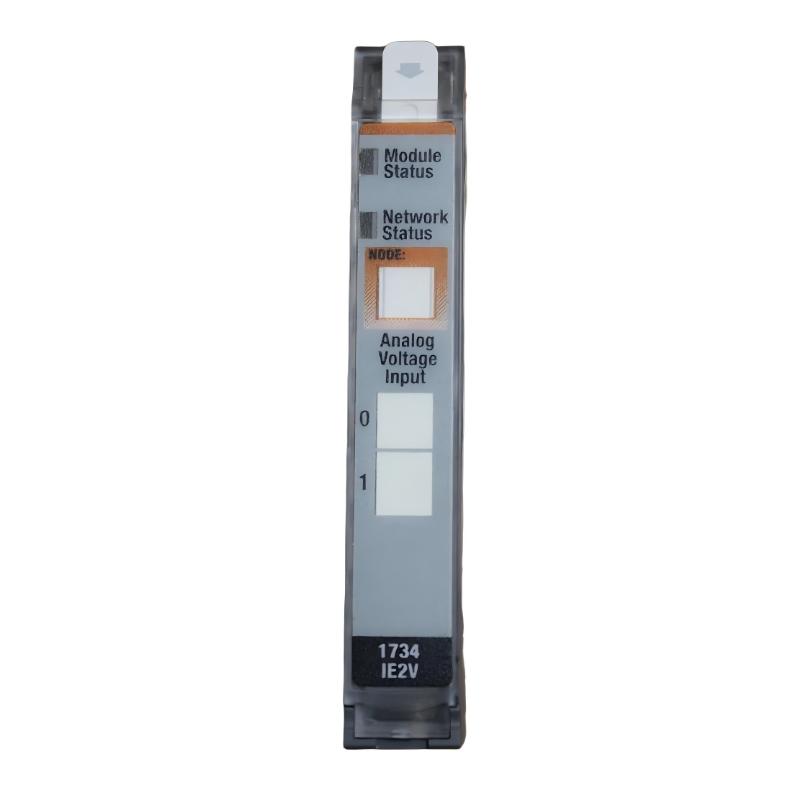

The Allen-Bradley 1734-IE2V Point I/O 2-Point Analog Input Module is a high-performance, compact solution for precise analog voltage signal acquisition in industrial automation systems. With dimensions of 77.5 × 12.1 × 56.6 mm and a lightweight 0.33 kg (0.73 lb), it is ideal for panel- or rack-mounted applications where space is limited. Designed for industrial durability and accuracy, the 1734-IE2V ensures reliable analog voltage measurements under demanding conditions, with plug-and-play integration for easy installation and maintenance in modular Point I/O systems.

Technical Specifications

Specification	Details
Dimensions	77.5 × 12.1 × 56.6 mm
Shipping Weight	0.33 kg (0.73 lb)
Channels	2 Analog Voltage Inputs
Input Type	0–10 V, ±10 V standard voltage
Operating Temperature	-20°C to 60°C
Mounting	Panel or rack
Construction Material	Industrial-grade materials
Vibration Resistance	Yes
Installation	Plug-and-play
Compatibility	Allen-Bradley 1734 Point I/O
Safety Compliance	SIL-capable or safety-aware

Applications

The Allen-Bradley 1734-IE2V 2-Point Analog Input Module is designed for precise acquisition of analog voltage signals in compact industrial control systems. Typical applications include:

Monitoring 0–10 V, ±10 V, or other standard analog voltage signals from sensors and field devices.
Integration into Point I/O systems where space efficiency is critical.
Process control in manufacturing, energy, and chemical industries.
SIL-rated or safety-aware automation systems requiring reliable analog voltage measurements.
Expansion or replacement of existing analog voltage input modules in modular I/O setups.

Advantages

The 1734-IE2V Module delivers high precision and industrial durability in a compact footprint:

Ultra-Compact Design: Measures 77.5 × 12.1 × 56.6 mm, ideal for space-constrained panels or racks.
2 Analog Channels: Supports multiple analog voltage inputs simultaneously.
Industrial-Grade Durability: Resistant to vibration, dust, and temperature variations.
High Accuracy: Provides stable and reliable analog voltage measurements.
Plug-and-Play Integration: Simplifies installation and maintenance in Point I/O systems.
Seamless Compatibility: Works efficiently with Allen-Bradley 1734 Point I/O modules.

Technical FAQs

What is the primary function of the 1734-IE2V?
Acquires 2 analog voltage signals for industrial automation and control systems.
Can it be used in SIL-rated systems?
Yes, suitable for safety-aware and SIL-compliant applications.
What is the operating temperature range?
Typically -20°C to 60°C, suitable for industrial environments.
Is it suitable for high-vibration environments?
Yes, designed for reliable operation under vibration.
Can it be mounted in panels or racks?
Yes, its compact design allows flexible installation.
How precise are the analog measurements?
High-accuracy circuitry ensures minimal voltage deviation.
Does it support real-time signal monitoring?
Yes, continuously processes and reports analog voltage inputs.
Is maintenance straightforward?
Yes, modular design allows quick replacement or expansion.
Is it compatible with other Allen-Bradley Point I/O modules?
Yes, fully compatible with the 1734 Point I/O family.
Is it suitable for hazardous industrial environments?
Yes, engineered to meet industrial safety and reliability standards.
