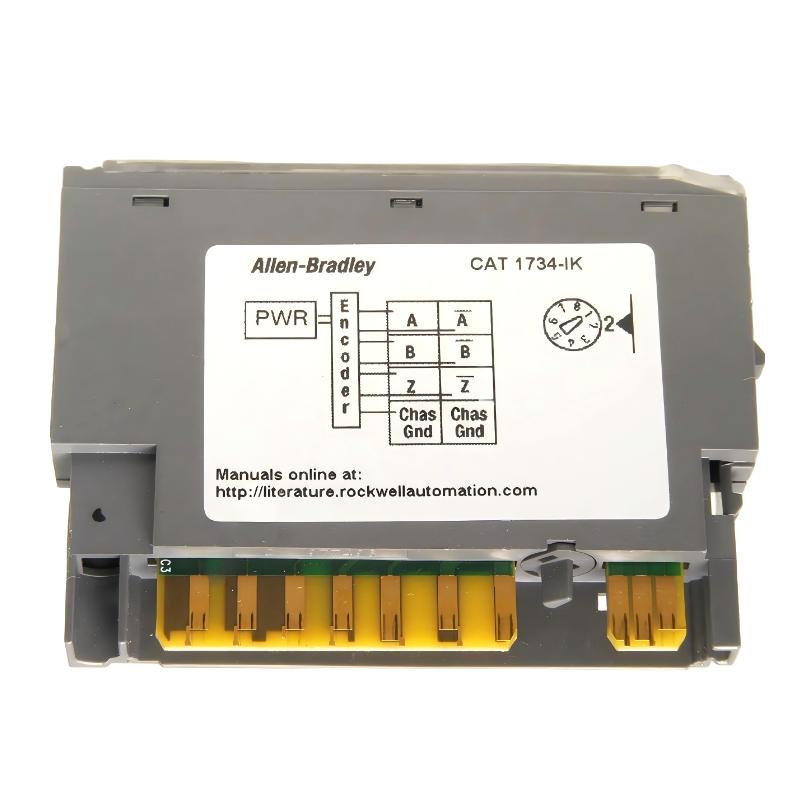

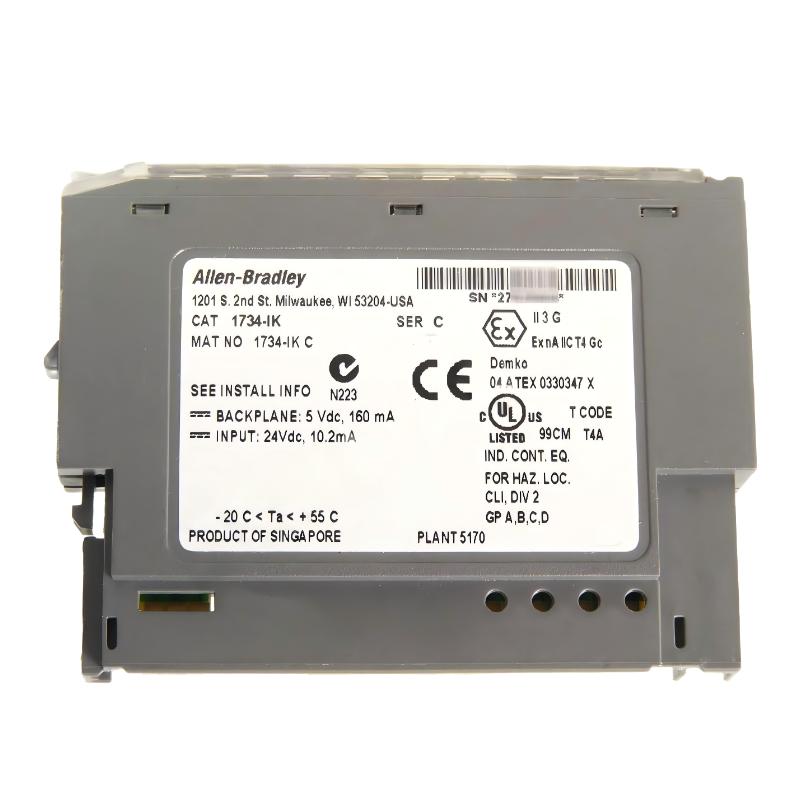

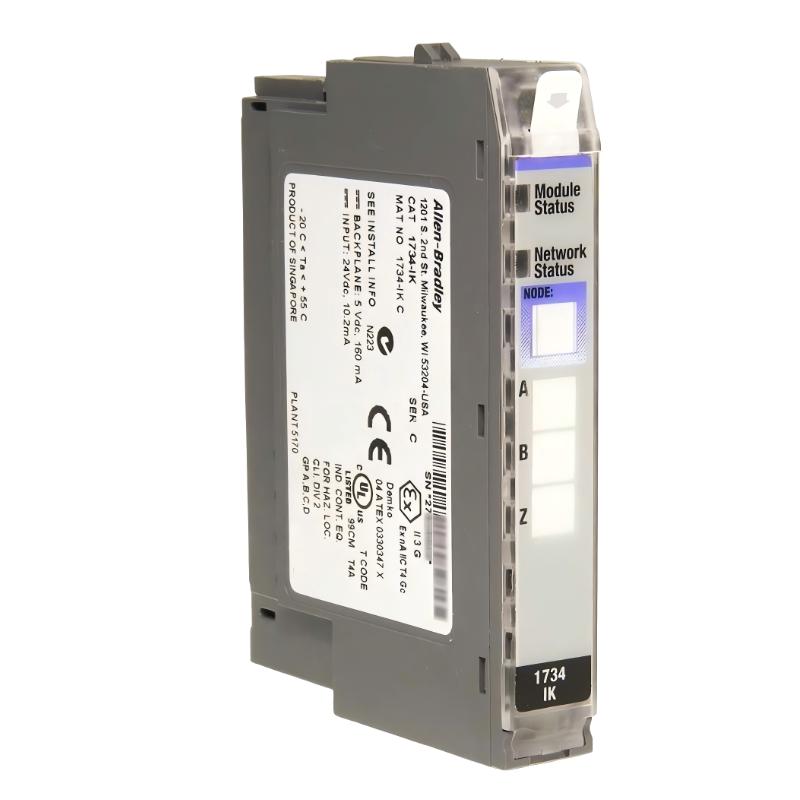

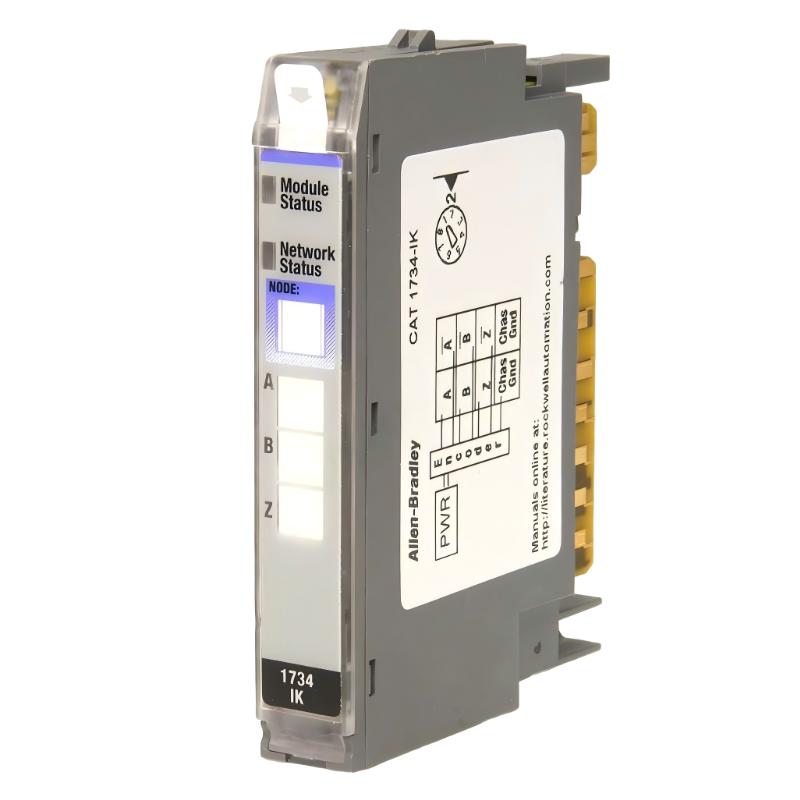

Allen Bradley 1734-IK Point I/O Incremental Encoder Module

Applications

The Allen-Bradley 1734-IK Incremental Encoder Module is designed for precise position and speed feedback acquisition in compact industrial control systems. Typical applications include:

• Monitoring rotational speed and position from incremental encoders in motors and machinery.
• Integration into Point I/O systems for modular automation solutions.
• Process control in manufacturing, robotics, and material handling systems.
• SIL-rated or safety-aware automation systems requiring reliable position feedback.
• Expansion or replacement of existing incremental encoder modules in Point I/O setups.

Advantages

The 1734-IK Module delivers high-performance feedback in a compact, industrial-ready package:

• Compact Design: Measures 77.5 × 12.1 × 56.6 mm, ideal for space-constrained panels or racks.
• Precise Position Feedback: Provides accurate rotational position and speed signals.
• Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature variations.
• Plug-and-Play Integration: Quick installation and easy maintenance within Point I/O systems.
• Modular Compatibility: Seamlessly works with other Allen-Bradley 1734 Point I/O modules.

Technical FAQs

1. What is the primary function of the 1734-IK?
   Acquires incremental encoder signals to monitor position and speed in automation systems.
2. Can it be used in SIL-rated systems?
   Yes, suitable for safety-aware and SIL-compliant applications.
3. What is the operating temperature range?
   Typically -20°C to 60°C, suitable for industrial environments.
4. Is it suitable for high-vibration environments?
   Yes, designed for reliable performance under vibration.
5. Can it be mounted in panels or racks?
   Yes, its compact dimensions allow flexible installation.
6. How precise is the encoder feedback?
   High-accuracy circuitry ensures reliable position and speed measurements.
7. Does it support real-time monitoring?
   Yes, continuously processes and reports encoder signals.
8. Is maintenance straightforward?
   Yes, modular design allows quick replacement or expansion.
9. Is it compatible with other Allen-Bradley Point I/O modules?
   Yes, fully compatible with the 1734 Point I/O family.
10. Is it suitable for hazardous industrial environments?
    Yes, engineered to meet industrial safety and reliability standards.
