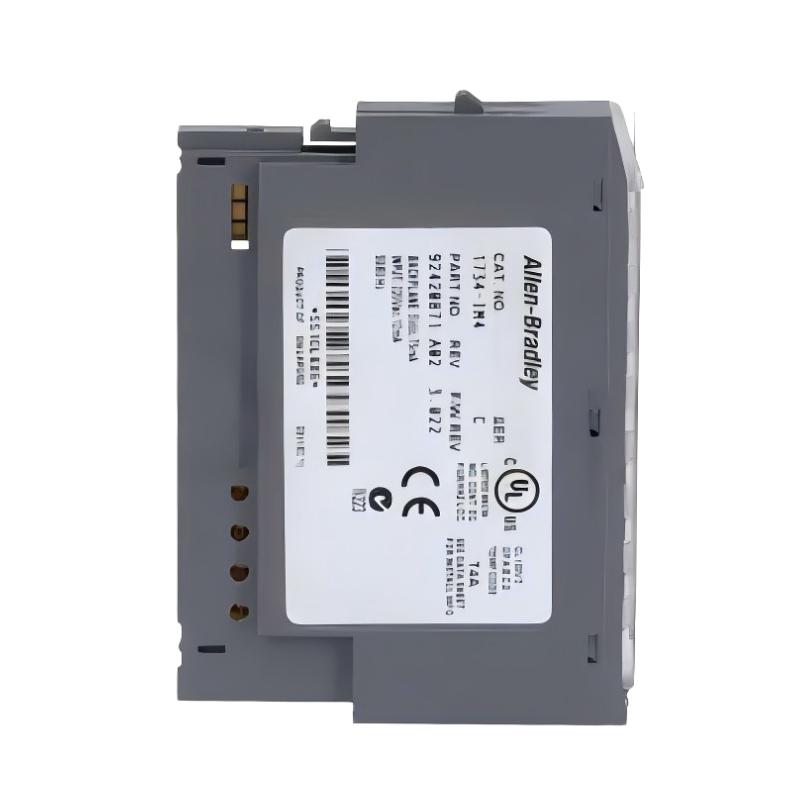

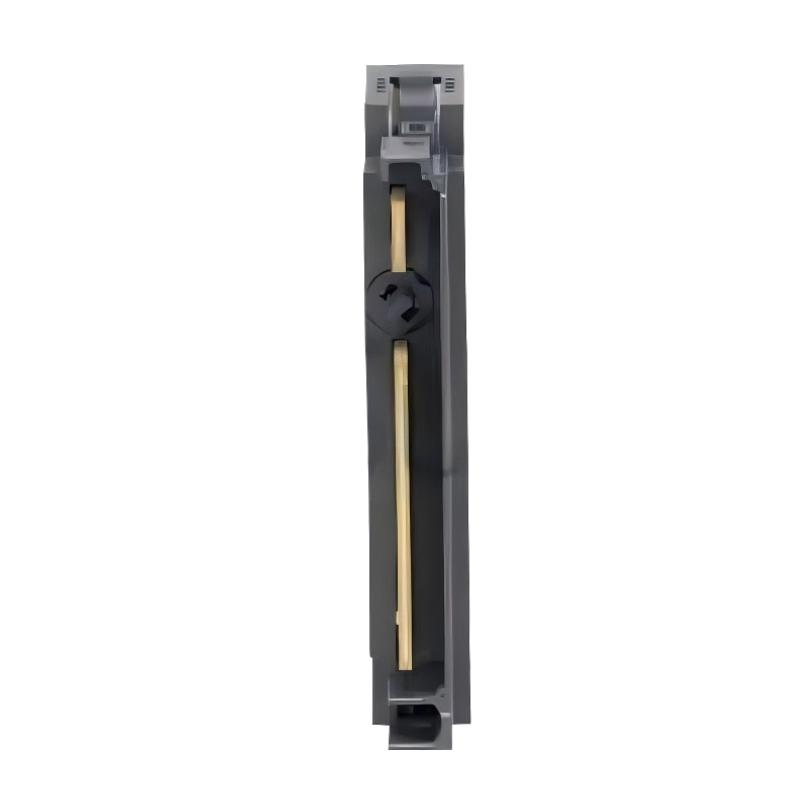

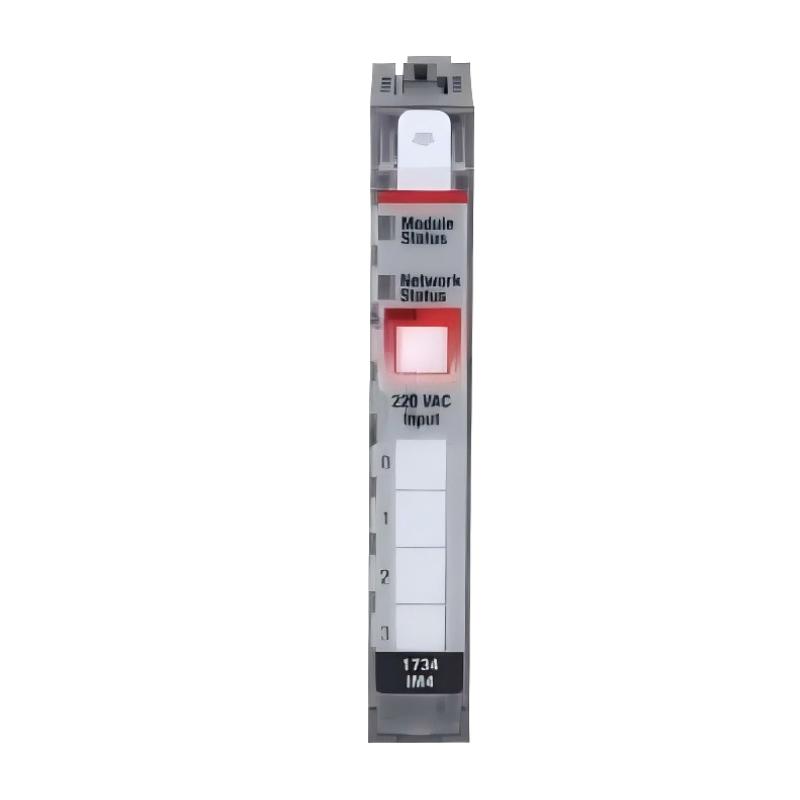

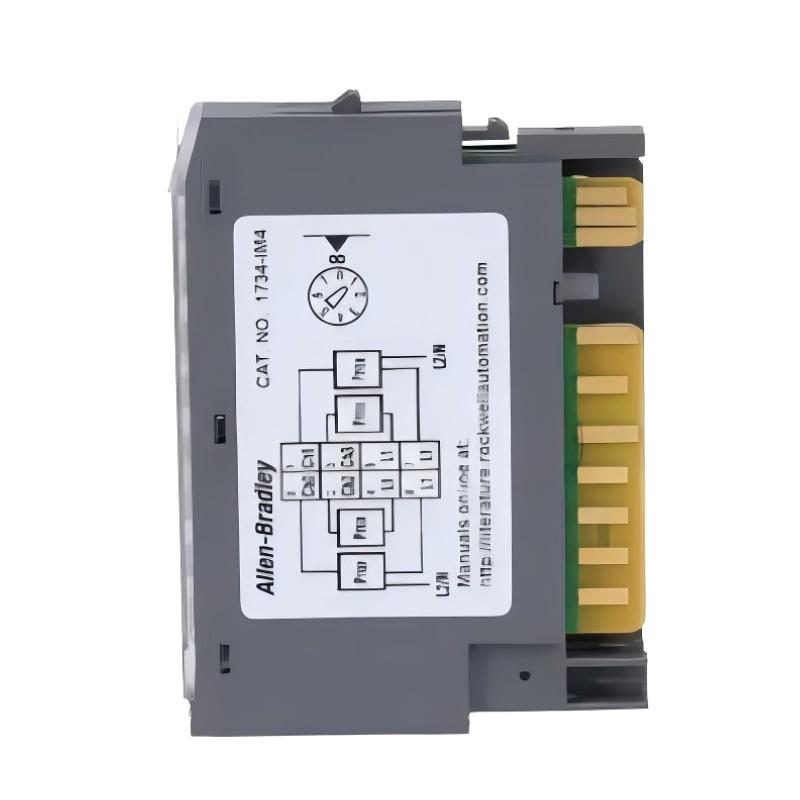

Allen Bradley 1734-IM4 Point I/O 4-Point Numeric Input Module

Applications

The Allen-Bradley 1734-IM4 4-Point Numeric Input Module is designed for accurate and reliable discrete signal acquisition in compact industrial automation systems. Typical applications include:

• Monitoring up to 4 discrete input signals from sensors, switches, or other field devices.
• Integration into Point I/O systems for modular and scalable industrial control.
• SIL-rated or safety-aware systems requiring compact and reliable digital input modules.
• Automation in manufacturing, robotics, and material handling systems.
• Replacement or expansion of existing 4-channel digital input modules.

Advantages

The 1734-IM4 Module offers reliable performance and compact integration:

• Ultra-Compact Design: Measures 75.5 × 12 × 56 mm, ideal for limited-space panels or racks.
• 4 Digital Channels: Supports discrete signal acquisition for small-scale control applications.
• Industrial-Grade Durability: Resistant to vibration, dust, and moderate temperature variations.
• High Reliability: Ensures accurate digital signal detection in harsh industrial environments.
• Plug-and-Play Installation: Simplifies integration and maintenance within Point I/O systems.

Technical FAQs

1. What is the primary function of the 1734-IM4?
   Acquires up to 4 discrete digital input signals.
2. Can it be used in SIL-rated systems?
   Yes, suitable for safety-aware and SIL-compliant applications.
3. What is the operating temperature range?
   Typically -20°C to 60°C, suitable for industrial environments.
4. Is it suitable for high-vibration environments?
   Yes, designed for reliable operation under vibration.
5. Can it be mounted in panels or racks?
   Yes, its compact dimensions allow flexible installation.
6. How durable is the module?
   Industrial-grade construction ensures long-lasting and reliable operation.
7. Does it support real-time signal monitoring?
   Yes, continuously detects and reports input signals.
8. Is maintenance straightforward?
   Yes, modular design allows quick replacement or upgrades.
9. Is it compatible with other Allen-Bradley Point I/O modules?
   Yes, fully compatible with the 1734 modular system.
10. Is it suitable for hazardous industrial environments?
    Yes, engineered to meet industrial safety and reliability standards.
