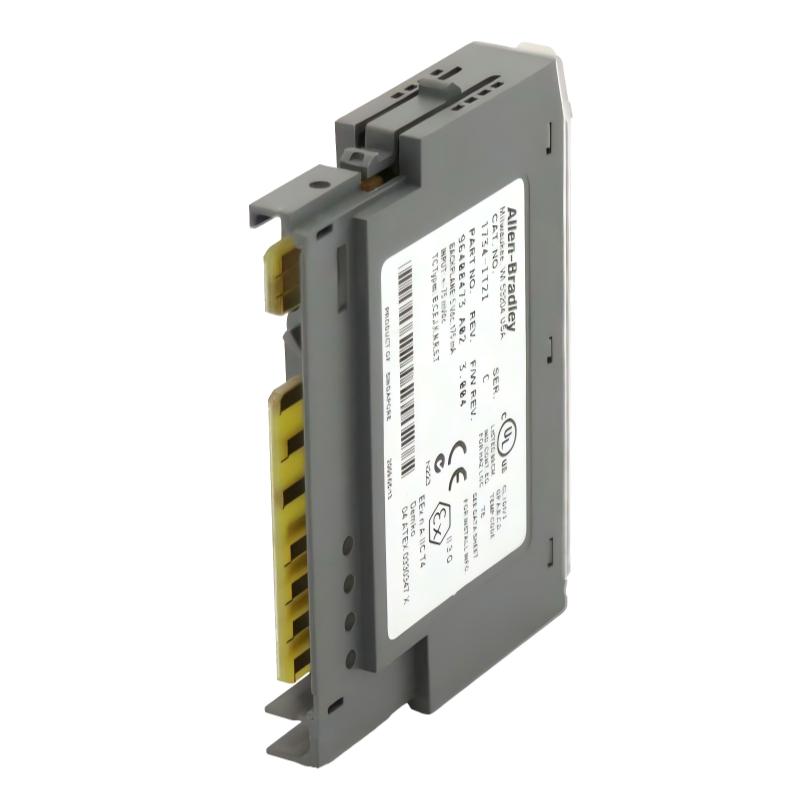

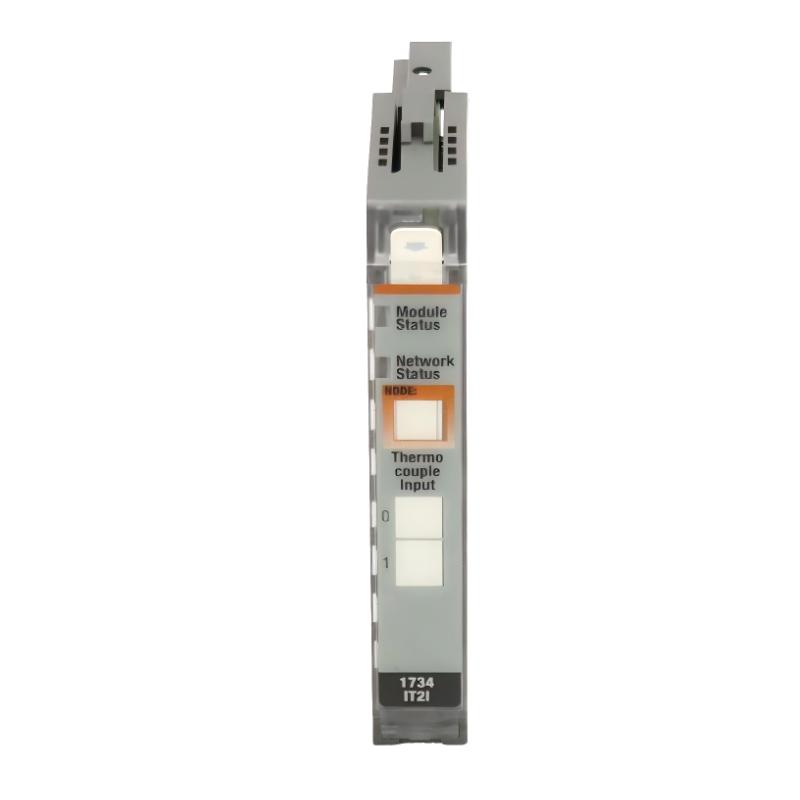

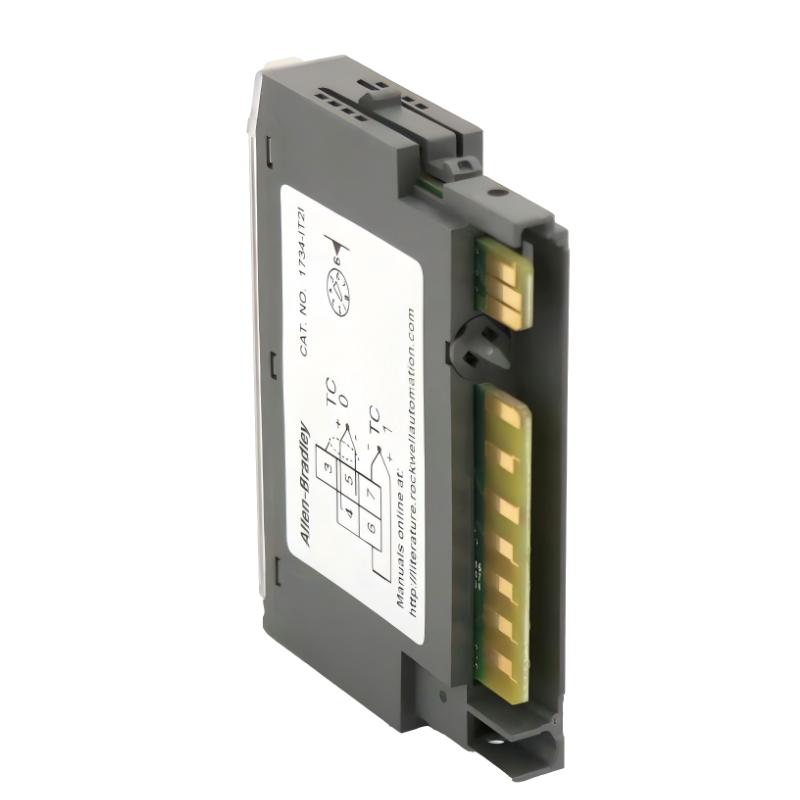

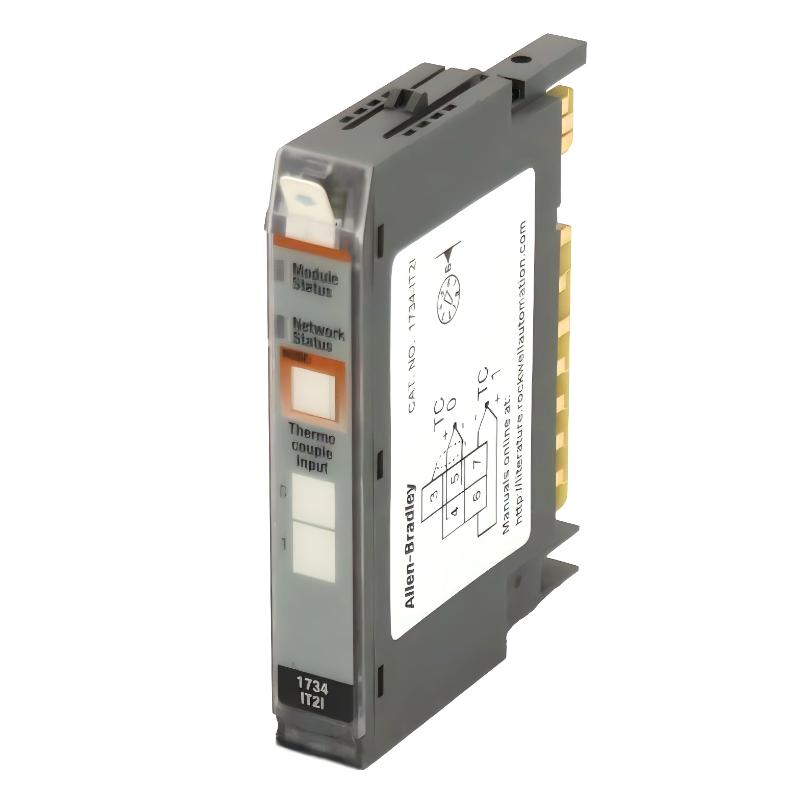

Allen Bradley 1734-IT2I Point I/O Thermocouple Input Module

Applications

The Allen-Bradley 1734-IT2I Thermocouple Input Module is designed for precise temperature measurement from thermocouples in industrial automation systems. Typical applications include:

• Monitoring temperature from various thermocouple types (J, K, T, E, R, S, B) in process control systems.
• Integration into Point I/O systems for modular and scalable industrial automation.
• SIL-rated or safety-aware systems requiring reliable thermocouple input.
• Temperature measurement in manufacturing, chemical, energy, and HVAC systems.
• Expansion or replacement of existing thermocouple input modules in compact panels or racks.

Advantages

The 1734-IT2I Module delivers accurate temperature monitoring in a compact footprint:

• Compact Design: Measures 77.5 × 12.1 × 56.6 mm, perfect for panels or racks with limited space.
• 2 Thermocouple Channels: Supports precise temperature readings from 2 thermocouples.
• High Accuracy: Stable and reliable temperature measurements for critical processes.
• Industrial-Grade Durability: Resistant to vibration, dust, and temperature variations.
• Plug-and-Play Integration: Easy installation and maintenance within Point I/O systems.
• Seamless Compatibility: Fully compatible with Allen-Bradley 1734 Point I/O modules.

Technical FAQs

1. What is the primary function of the 1734-IT2I?
   Acquires temperature data from up to 2 thermocouples.
2. What types of thermocouples are supported?
   Supports J, K, T, E, R, S, and B thermocouples.
3. Can it be used in SIL-rated systems?
   Yes, suitable for safety-aware and SIL-compliant applications.
4. What is the operating temperature range for the module?
   Typically -20°C to 60°C for industrial environments.
5. Is it suitable for high-vibration environments?
   Yes, designed to maintain accuracy under vibration.
6. Can it be mounted in panels or racks?
   Yes, compact dimensions allow flexible installation.
7. How precise are the thermocouple readings?
   High-accuracy circuitry ensures minimal measurement deviation.
8. Is maintenance straightforward?
   Yes, modular design allows quick replacement or upgrades.
9. Is it compatible with other Allen-Bradley Point I/O modules?
   Yes, fully compatible with the 1734 modular system.
10. Can it handle industrial process conditions?
    Yes, engineered for reliable thermocouple measurements in harsh environments.
