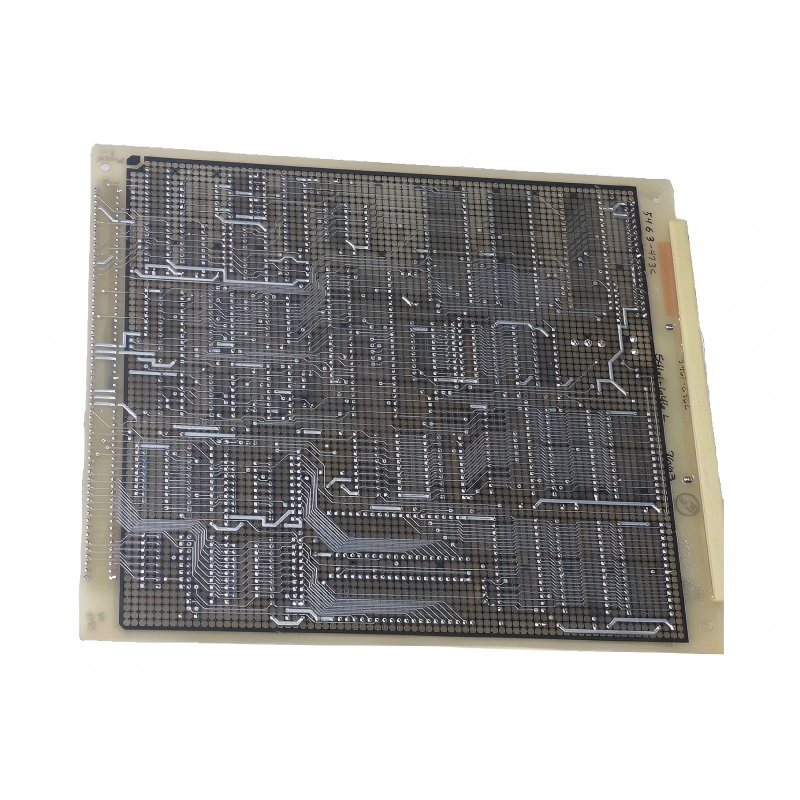

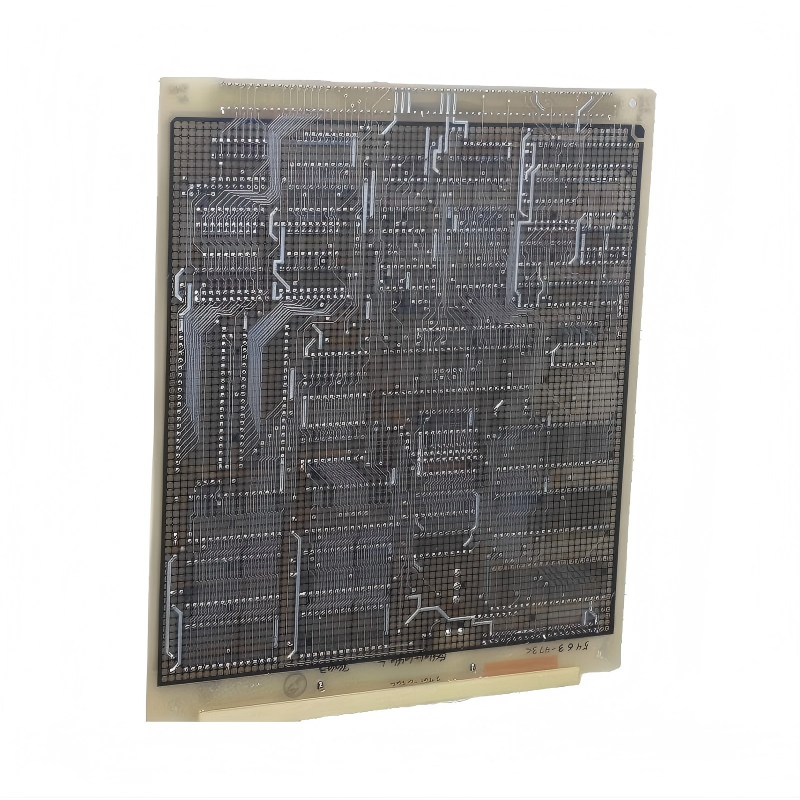

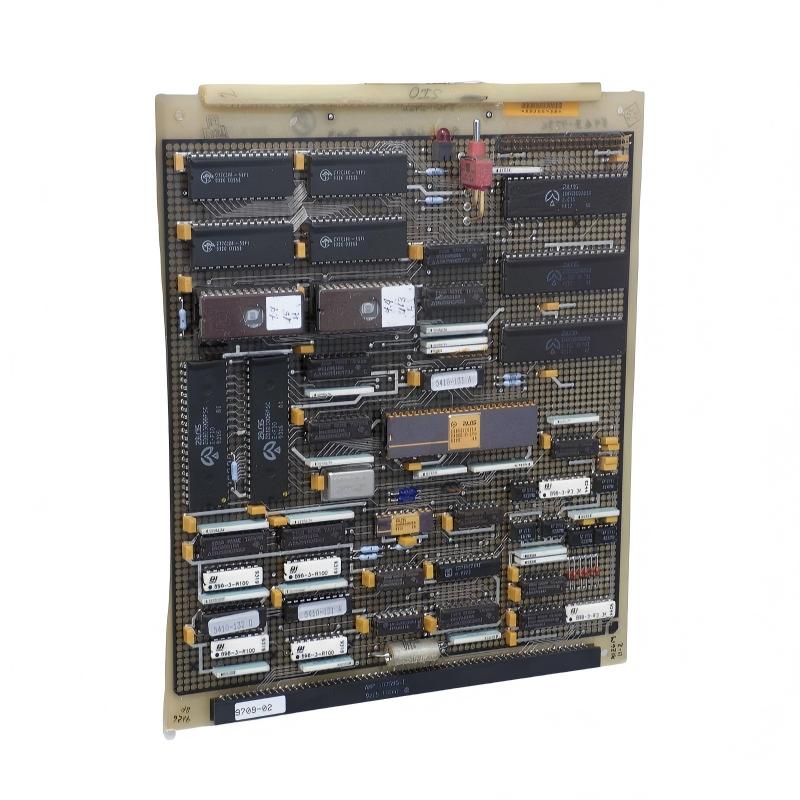

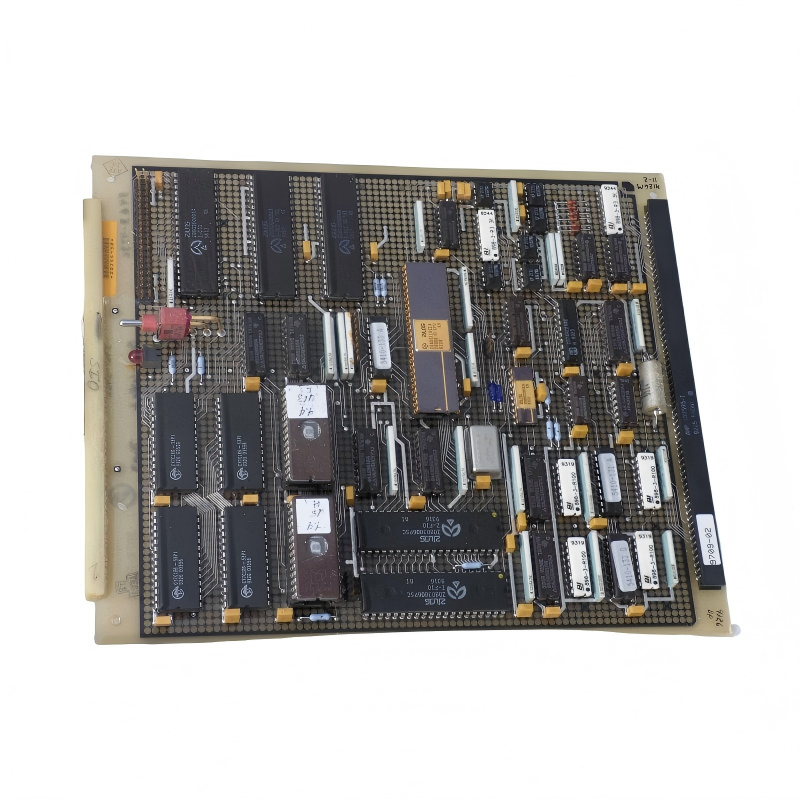

Woodward 5463-473 C SIO CPU Module

Applications

The Woodward 5463-473 C SIO CPU Module is designed to serve as the central processing unit for industrial automation systems, providing high-speed computation and control for engine and turbine applications. It is widely used in distributed control networks where precision, reliability, and real-time processing are critical.

This module integrates seamlessly with Woodward I/O and interface modules, enabling engineers to implement advanced automation strategies, turbine control, and engine monitoring with confidence.

Advantages

• High-Performance CPU: Delivers fast processing for real-time control applications.
• Compact Design: Slim and lightweight (228 × 192 × 10 mm; 0.39 kg / 0.860 lb) for space-constrained installations.
• Robust and Reliable: Designed to withstand vibration, temperature fluctuations, and EMI common in industrial environments.
• Seamless Integration: Compatible with Woodward SIO modules and broader 5400/5460 system architecture.
• Low Power Consumption: Efficient design reduces energy usage while maintaining high performance.

Technical FAQs

1. What is the primary function of the 5463-473 C CPU Module?
   It serves as the main processing unit for SIO-based control systems, executing real-time automation tasks.
2. Which systems is this module compatible with?
   Fully compatible with Woodward 5400/5460 systems and associated I/O and interface modules.
3. Can it handle multiple control loops simultaneously?
   Yes, the CPU is designed for multi-loop processing with real-time deterministic response.
4. What is the operating temperature range?
   Designed to operate reliably from -20°C to 70°C.
5. Does it include fault diagnostics?
   Yes, it provides system status monitoring and error reporting for predictive maintenance.
6. Is it suitable for high-vibration environments?
   Yes, built to maintain integrity under typical industrial vibration and mechanical stress.
7. How is the module mounted?
   Can be mounted in cabinets or enclosures using standard fasteners.
8. Does it support network communication?
   Yes, fully supports Woodward SIO and compatible industrial network protocols.
9. Is active cooling required?
   No, the module is passively cooled under normal operating conditions.
10. What is the expected service life of the CPU module?
    Designed for long-term industrial operation, typically several years of reliable service.
