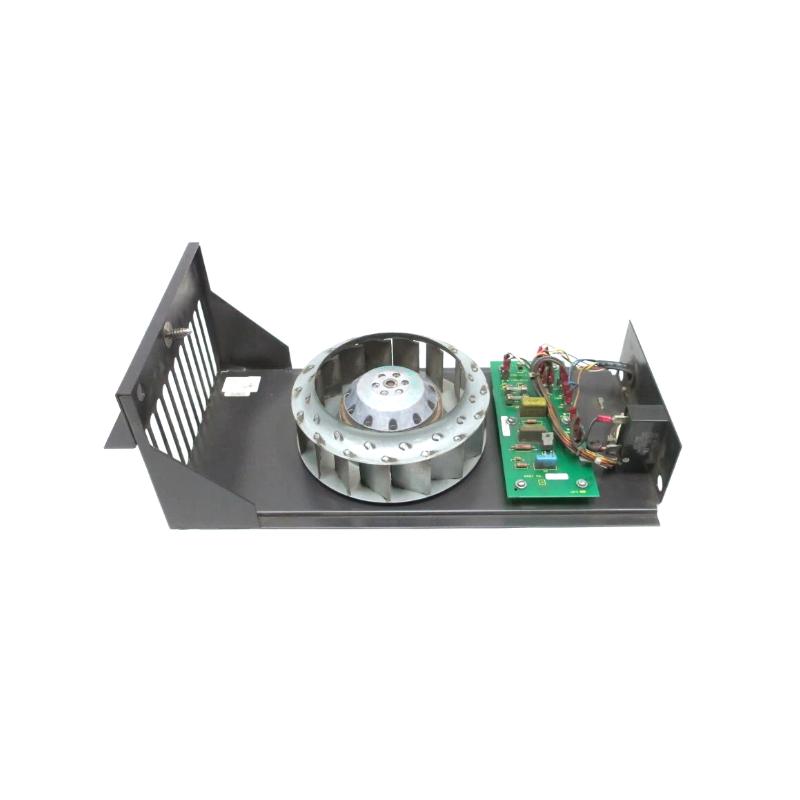

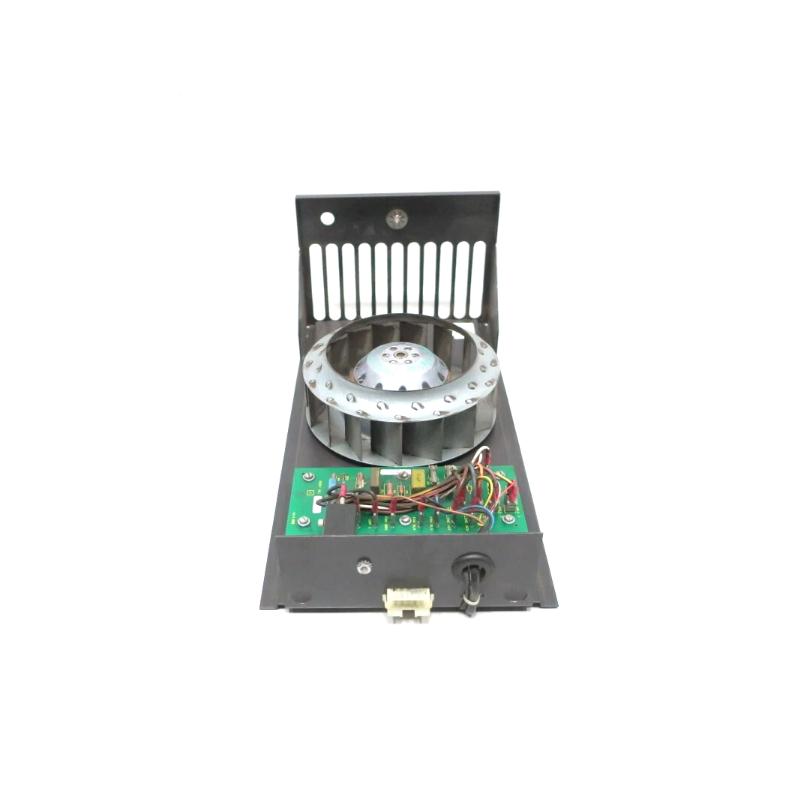

The ABB Bailey IPFAN11 is an industrial-grade Power Fan Assembly Module designed for the INFI 90 distributed control system (DCS) platform. It is responsible for maintaining proper airflow and thermal management inside control cabinets and rack-mounted automation systems.
In mission-critical industrial environments, stable cooling performance is essential for protecting processors, communication modules, and I/O assemblies from overheating. The IPFAN11 helps extend equipment lifespan, improve operational reliability, and maintain consistent system performance in continuous 24/7 process operations.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Fan Assembly Module |
| System | ABB Bailey INFI 90 DCS |
| Function | Rack cooling and airflow management |
| Cooling Type | Forced-air fan assembly |
| Fan Voltage | 115/230 VAC (variant dependent) |
| Airflow Direction | Front-to-rear cabinet ventilation |
| Installation Type | Rack/cabinet mounted |
| Power Consumption | Low-power industrial fan design |
| Protection | Thermal-resistant industrial housing |
| Noise Level | Low-noise continuous operation |
| Compatibility | INFI 90 racks and control cabinets |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -25°C to 85°C |
| Protection Class | Industrial environment rated |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 150 × 120 × 80 mm |
| Weight | approx. 1.0 – 1.5 kg |
Recommended Related Models
- ABB INFI 90 rack systems – compatible cabinet platforms
- ABB IMMFP11 / IMMFP12 – multifunction processor modules
- ABB INNPM11 – network processing module
- ABB IMDSI / IMDSO series – I/O modules requiring thermal management
- ABB Symphony Plus systems – modern DCS upgrade solutions
