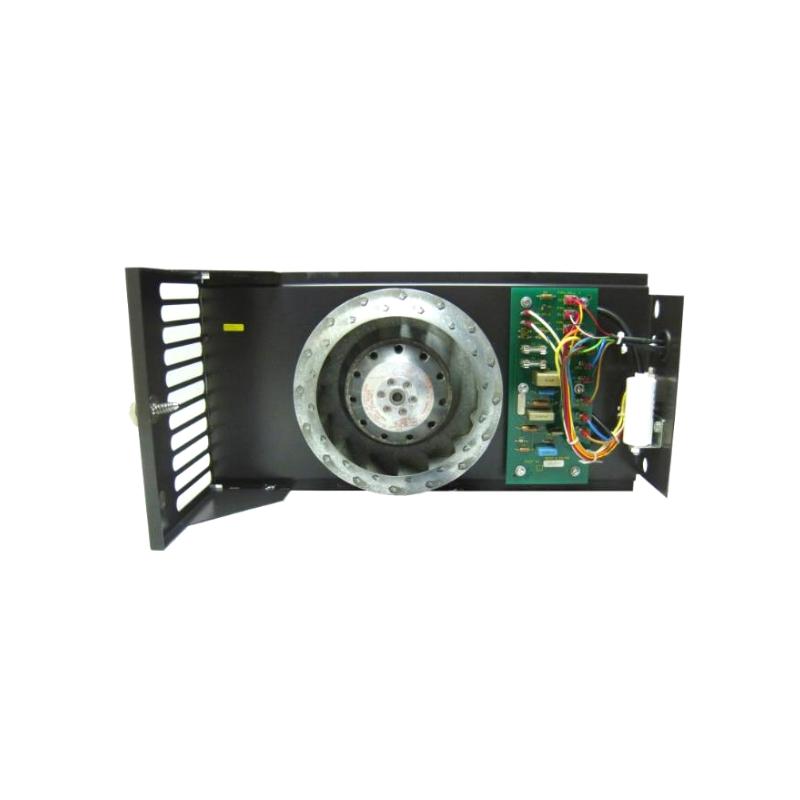

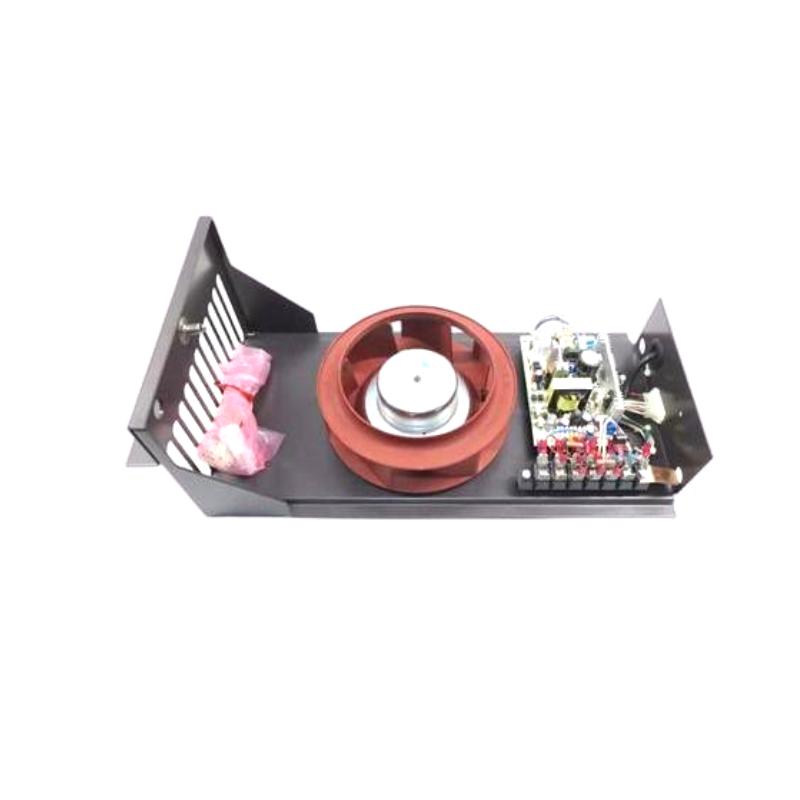

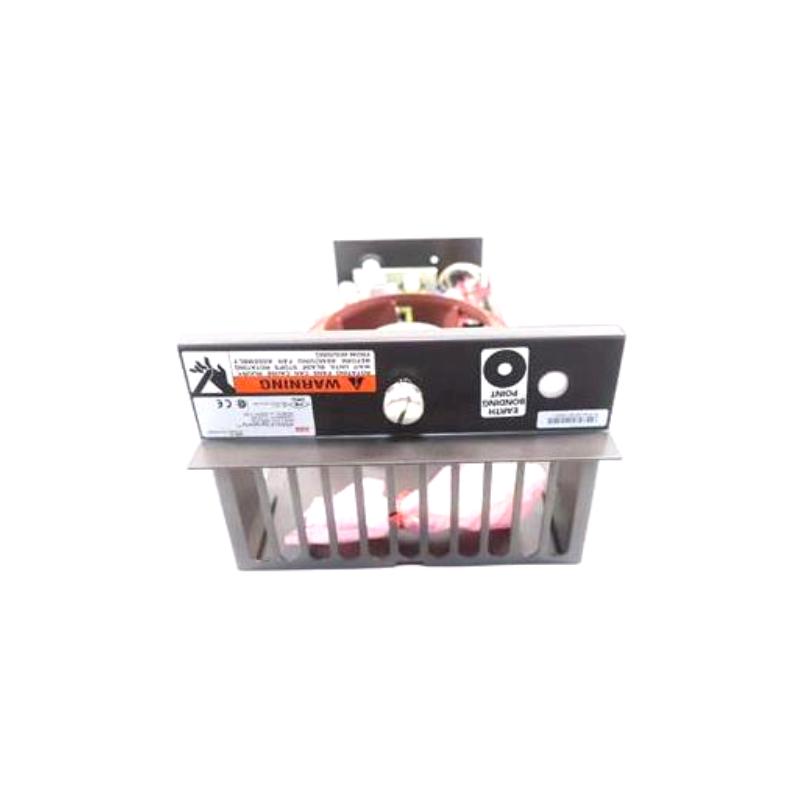

The ABB Bailey IPFAN12 is a heavy-duty Power Fan Assembly Module engineered for thermal management within ABB Bailey INFI 90 distributed control systems. It provides continuous airflow circulation inside automation racks and control cabinets, helping maintain optimal operating temperatures for processors, communication boards, and I/O modules.
In high-density industrial DCS environments, stable cooling is essential for preventing thermal stress and extending equipment service life. The IPFAN12 is specifically designed for long-term reliability in mission-critical process industries where uninterrupted operation is required.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Fan Assembly Module |
| System Compatibility | ABB Bailey INFI 90 DCS |
| Function | Cabinet and rack cooling |
| Cooling Method | Forced-air ventilation |
| Fan Configuration | Industrial dual-fan assembly |
| Input Voltage | 115/230 VAC (configuration dependent) |
| Installation Type | Rack-mounted / cabinet-mounted |
| Airflow Direction | Horizontal rack airflow |
| Duty Cycle | Continuous industrial operation |
| Housing Material | Industrial-grade metal enclosure |
| Noise Design | Low-vibration industrial fan structure |
| Application Environment | Process automation control cabinets |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -25°C to 85°C |
| Protection Class | Industrial control environment rated |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 160 × 125 × 85 mm |
| Weight | approx. 1.2 – 1.8 kg |
Recommended Related Models
- ABB IPFAN11 – standard cooling fan assembly variant
- ABB IMMFP11 / IMMFP12 – processor modules requiring thermal management
- ABB INNPM11 – network processing module
- ABB IMDSI / IMDSO series – digital I/O modules
- ABB Symphony Plus systems – modern DCS migration platform
