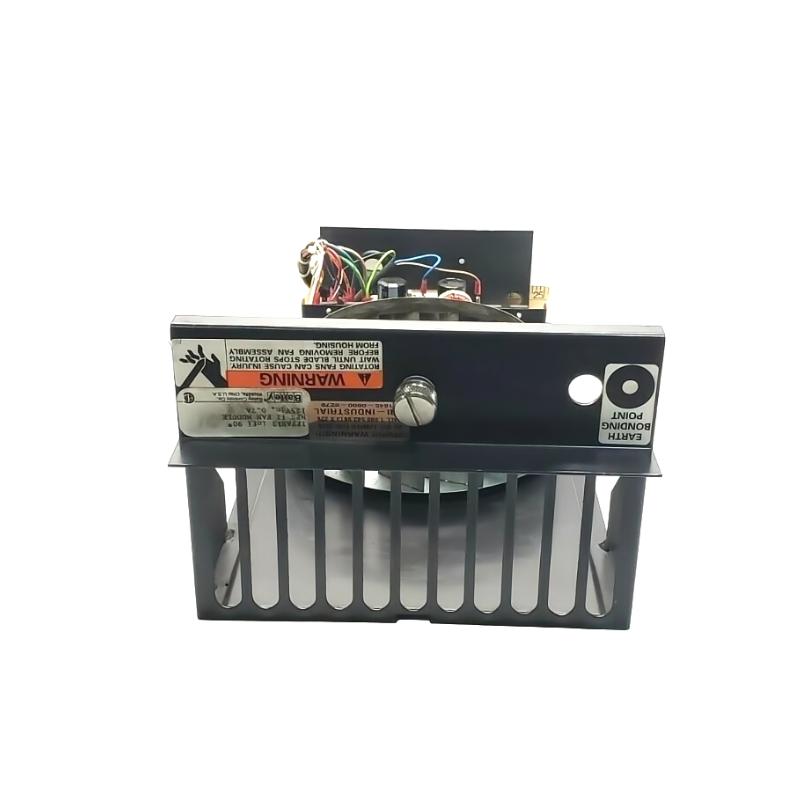

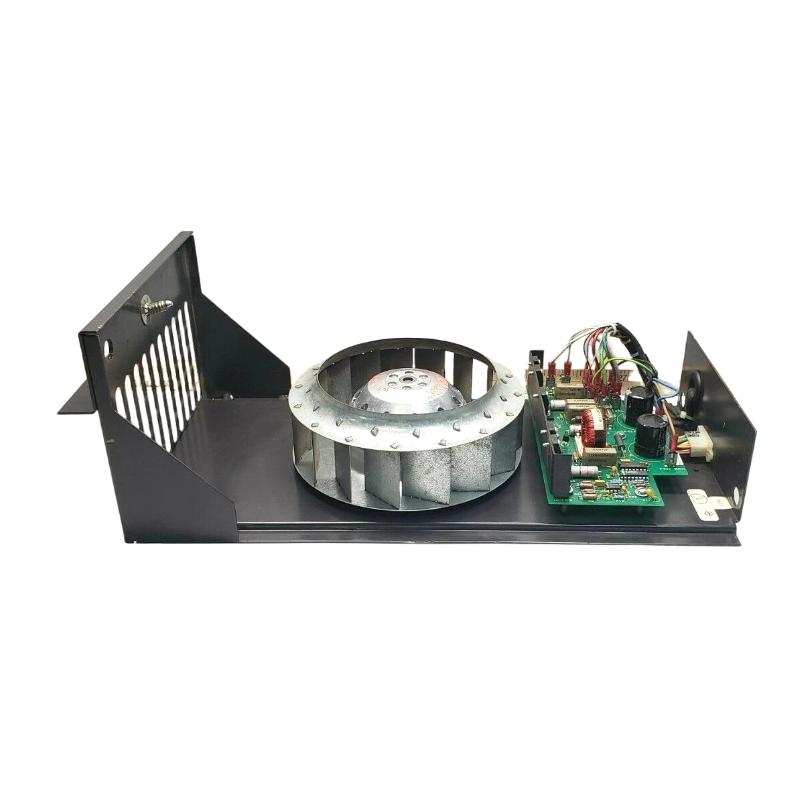

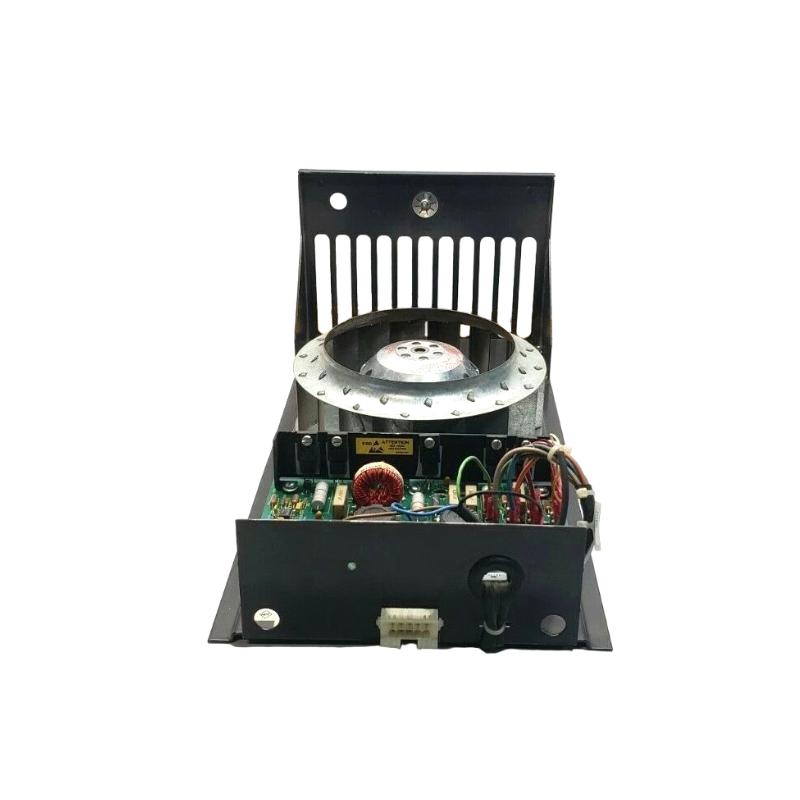

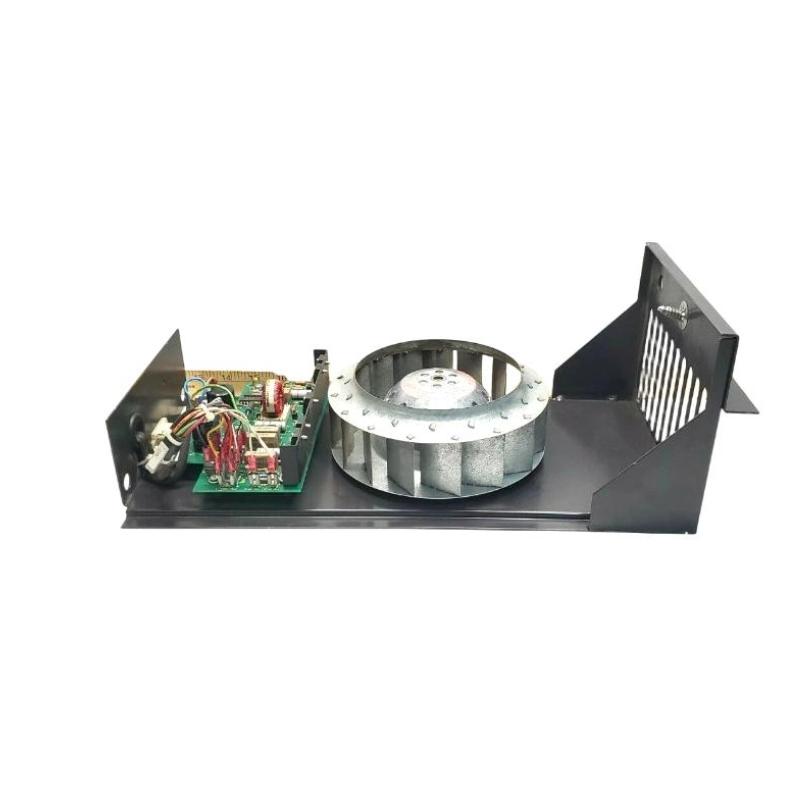

The ABB Bailey IPFAN13 is an industrial-grade Power Fan Assembly Module developed for the ABB Bailey INFI 90 distributed control system (DCS) platform. Designed specifically for high-reliability cabinet cooling, this module provides continuous airflow circulation to maintain safe operating temperatures for processors, communication boards, and power assemblies.
The IPFAN13 is commonly deployed in mission-critical automation environments where thermal stability directly impacts system uptime. Its rugged construction and dependable airflow performance make it an essential component for maintaining long-term operational reliability in industrial control cabinets.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Fan Assembly Module |
| System Compatibility | ABB Bailey INFI 90 DCS |
| Function | Cabinet and rack thermal management |
| Cooling Method | Forced-air industrial ventilation |
| Fan Voltage | 125 V DC |
| Current Rating | 0.7 A nominal |
| Frequency | 47–63 Hz |
| Airflow Design | High-efficiency continuous airflow |
| Installation Type | Rack-mounted / cabinet-mounted |
| Housing Type | Industrial metal assembly |
| Operating Mode | Continuous 24/7 operation |
| Noise Design | Low-vibration fan structure |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 229 × 432 × 178 mm |
| Weight | approx. 2.4 – 3.4 kg |
