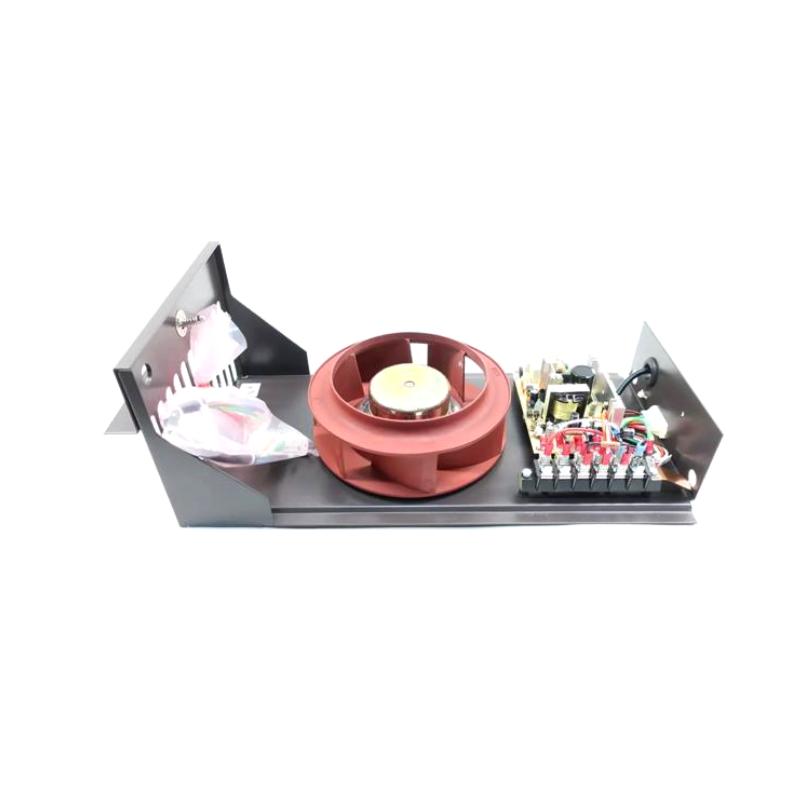

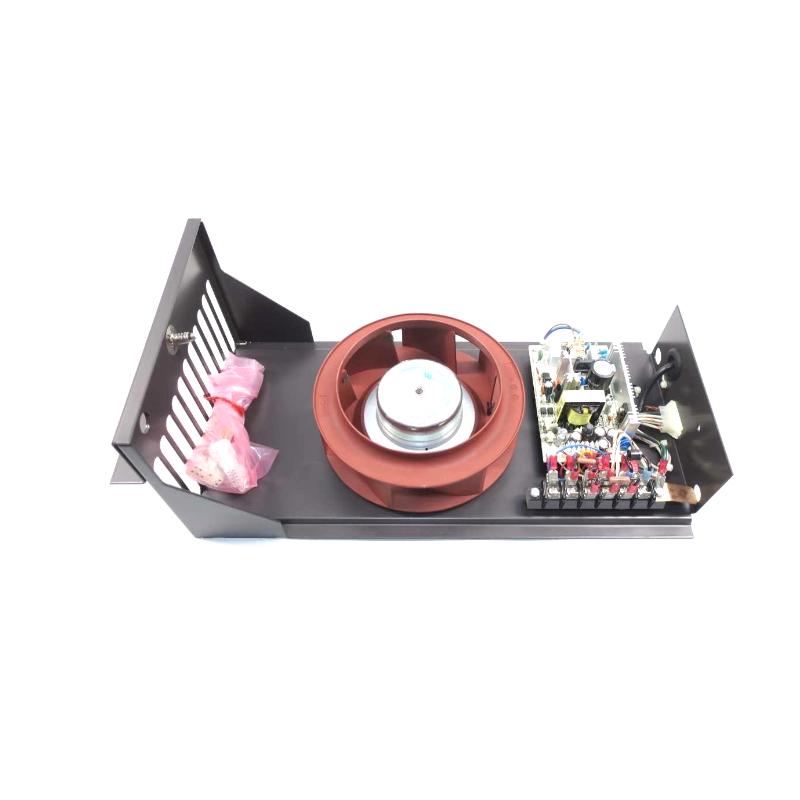

The ABB Bailey IPFAN14 is a high-efficiency Power System Fan Module developed for the ABB Bailey INFI 90 Modular Power System II. It is engineered to provide forced-air cooling for power supply assemblies, controller racks, and process automation cabinets operating in demanding industrial environments.
Designed for continuous-duty operation, the IPFAN14 helps maintain thermal stability inside DCS cabinets, reducing overheating risks and improving the reliability of mission-critical automation equipment. Its rugged industrial construction makes it ideal for applications requiring long-term operational uptime.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power System Fan Module |
| System Compatibility | ABB Bailey INFI 90 Modular Power System II |
| Function | Rack and cabinet cooling |
| Cooling Method | Forced-air ventilation |
| Input Voltage | 120/240 VAC or 125 VDC |
| Input Current | 0.72 A @ 120 VAC / 0.42 A @ 240 VAC / 0.50 A @ 125 VDC |
| Frequency | 47–63 Hz |
| Installation Type | Fits IPFCH01 Power Fan Chassis |
| Airflow Design | Continuous industrial airflow circulation |
| Operating Mode | 24/7 continuous operation |
| Housing Type | Industrial metal assembly |
| Compatibility | INFI 90 and Harmony modular power systems |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5%–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 445 × 152 × 211 mm |
| Weight | approx. 3.2 kg |
