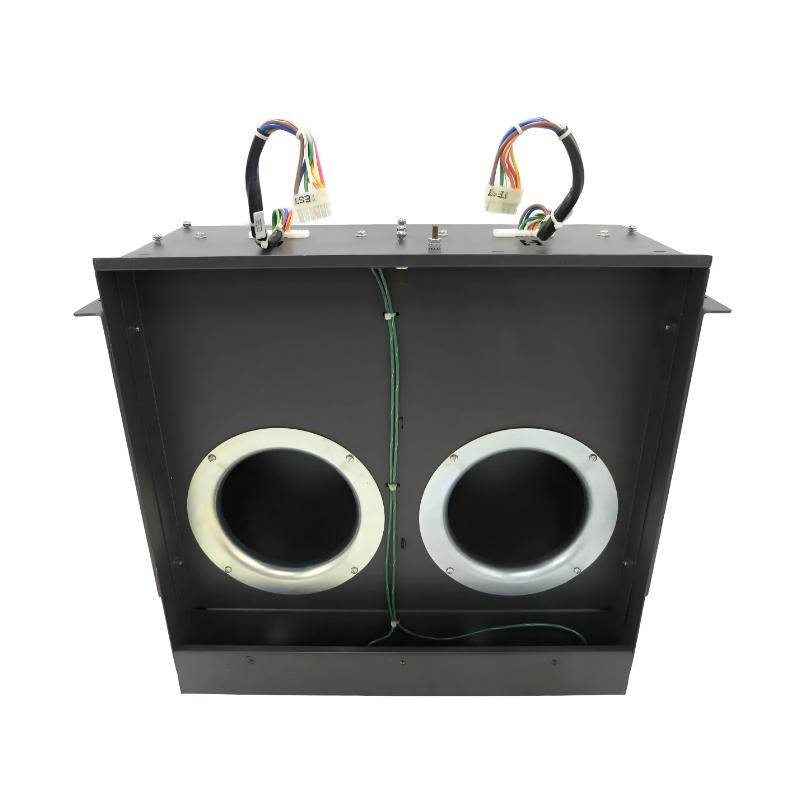

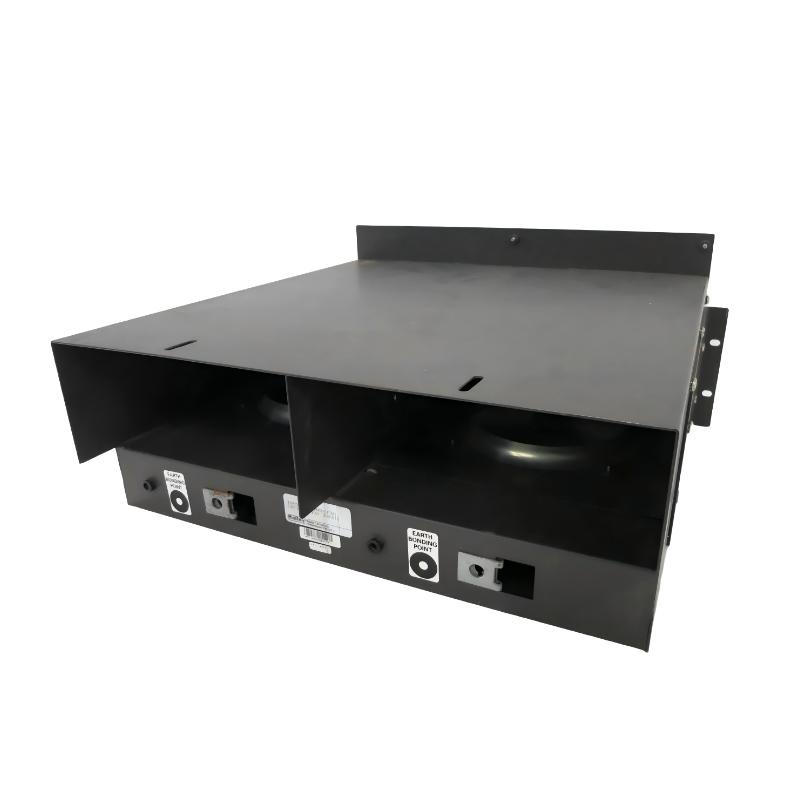

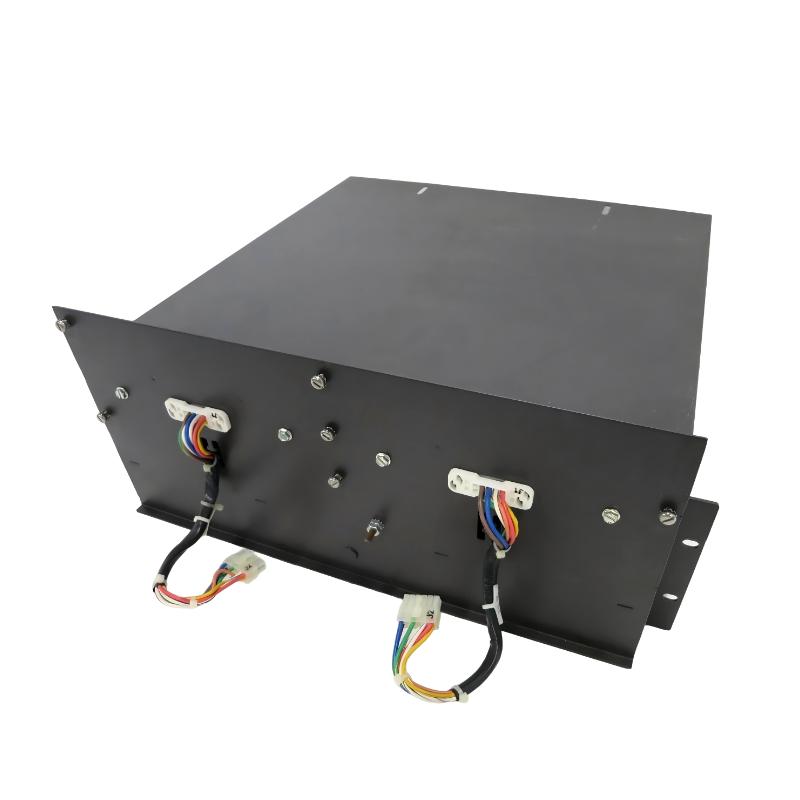

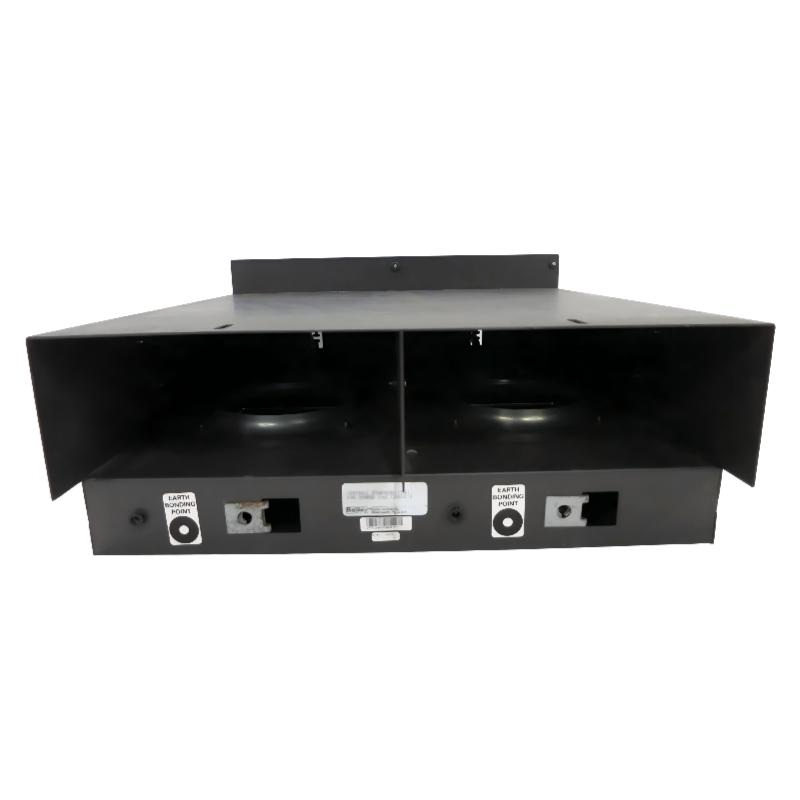

The ABB Bailey IPFCH01 is a Power Fan Chassis Module used in the INFI 90 distributed control system (DCS) and Symphony+ automation platforms. It serves as a centralized cooling structure designed to house, power, and manage multiple industrial fan modules within control cabinets.
In high-density automation environments, thermal stability is critical for maintaining reliable operation of processors, communication boards, and I/O modules. The IPFCH01 provides structured airflow management and supports redundant fan configurations, ensuring continuous cooling performance even in demanding industrial conditions.
This chassis is widely used in power plants, oil & gas facilities, and large-scale process industries, where system uptime and thermal reliability are non-negotiable.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Fan Chassis Module |
| System | ABB Bailey INFI 90 / Symphony+ |
| Function | Fan housing and power distribution for cooling system |
| Fan Capacity | Supports up to 4 fan modules |
| Cooling Method | Forced-air ventilation system |
| Fan Module Type | Hot-swappable industrial fan units |
| Alarm Function | Fan failure and airflow monitoring alarm output |
| Power Supply | System-integrated backplane power |
| Installation Type | Rack-mounted chassis |
| Mounting Orientation | Flexible cabinet installation options |
| Material | Industrial-grade metal housing |
| Operating Mode | Continuous 24/7 operation |
| Operating Temperature | 0°C to 70°C |
| Humidity | 5%–95% non-condensing |
| System Compatibility | INFI 90 / Symphony DCS racks |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 223 × 483 × 445 mm |
| Weight | approx. 7.5 kg |
Recommended Related Models
- ABB IPFAN11 / IPFAN12 / IPFAN13 / IPFAN14 – compatible fan modules
- ABB IPFCH01 power supply assemblies – system cooling infrastructure
- ABB IMMFP11 / IMMFP12 – processor modules requiring thermal protection
- ABB INNPM11 – network processing module
- ABB IMDSI / IMDSO series – I/O modules in INFI 90 systems
