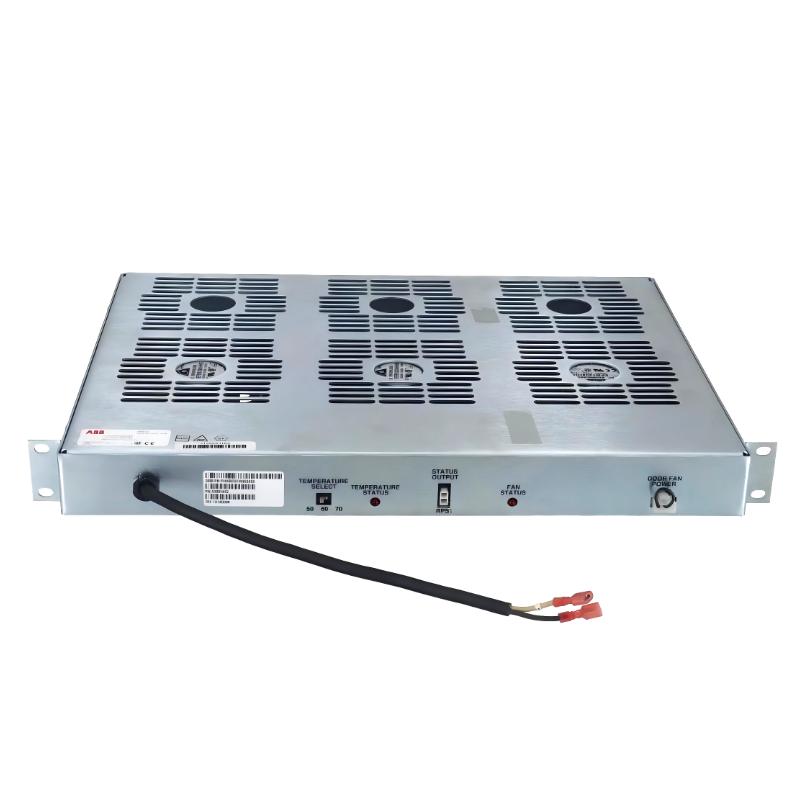

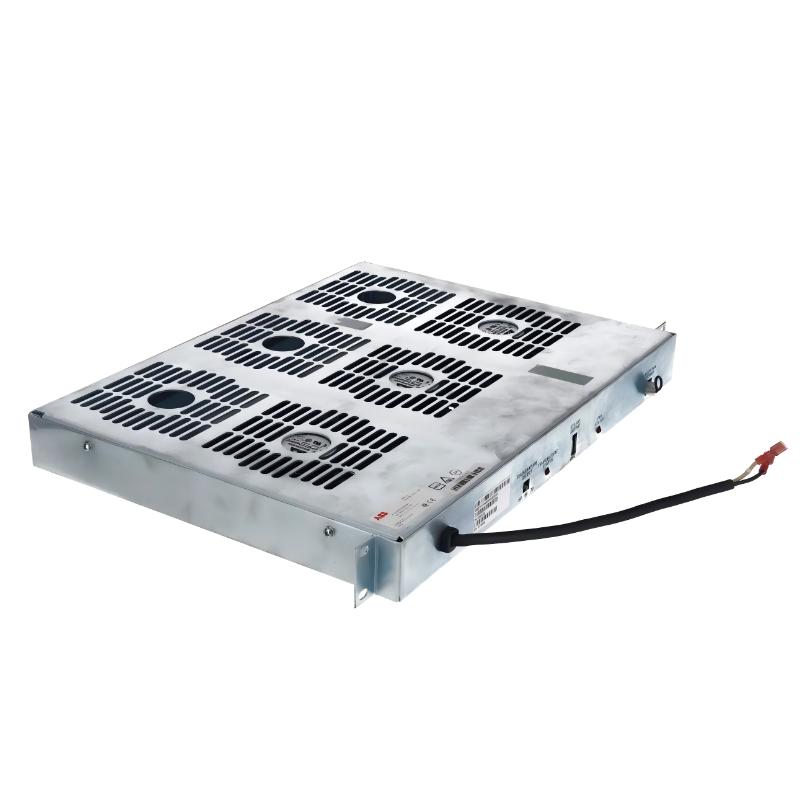

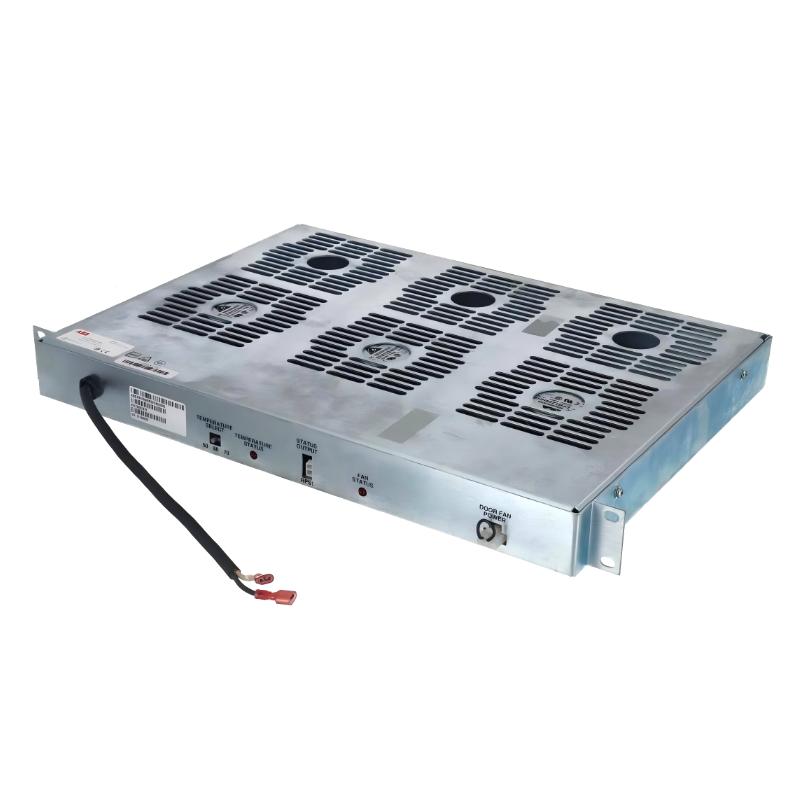

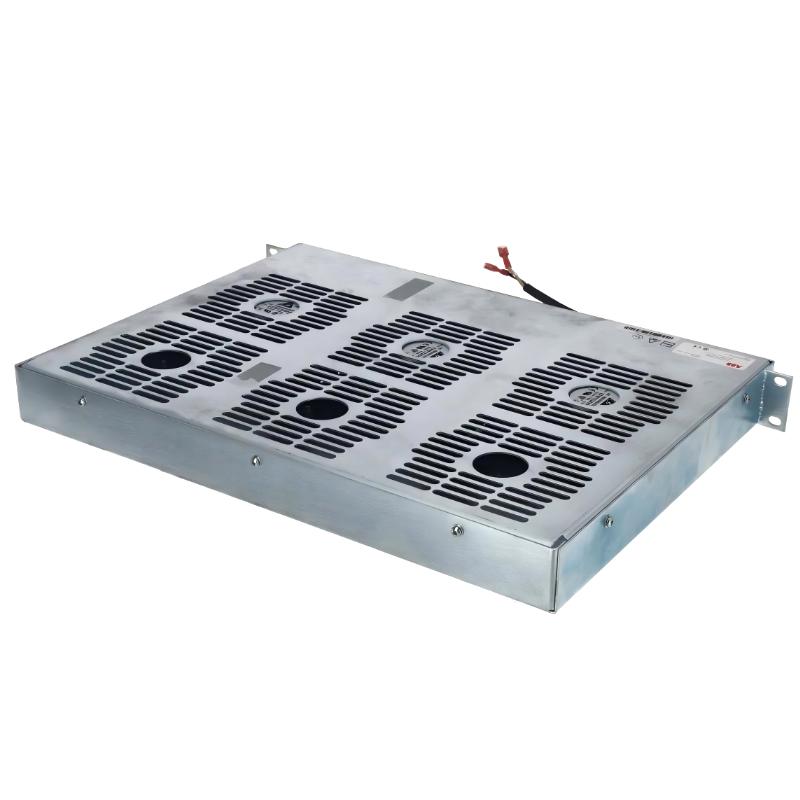

The ABB Bailey MPS FAN refers to a family of Modular Power System (MPS) cooling fan assemblies used in ABB Bailey INFI 90 / Net 90 / Symphony DCS power systems. It is designed to provide forced-air cooling for power supply modules, system chassis, and control electronics housed within industrial automation cabinets.
In ABB Bailey architectures, MPS fan systems are essential for maintaining stable operating temperatures in high-density power racks. They ensure continuous airflow across critical modules, preventing thermal overload and supporting uninterrupted 24/7 plant operation. These fan assemblies are widely used in power generation, oil & gas, petrochemical, and heavy industrial control environments.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | MPS Fan Assembly Module |
| System | ABB Bailey INFI 90 / Net 90 / Symphony |
| Function | Cabinet and power system cooling |
| Cooling Method | Forced-air axial fan system |
| Voltage (typical variants) | 120 VAC / 230 VAC / 125 VDC (model dependent) |
| Integration | MPS power chassis / IPFCH01 compatible systems |
| Airflow Control | Fixed or thermally controlled (variant dependent) |
| Monitoring | Optional fan status / thermal feedback |
| Installation Type | Rack-mounted or chassis-mounted |
| Duty Cycle | Continuous 24/7 industrial operation |
| Material | Industrial-grade metal housing |
| Protection | Overheat and airflow protection (system dependent) |
| Operating Temperature | -20°C to 70°C |
| Humidity | 5%–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | approx. 229 × 178 × 178 mm |
| Weight | approx. 2.0 – 3.5 kg (variant dependent) |
