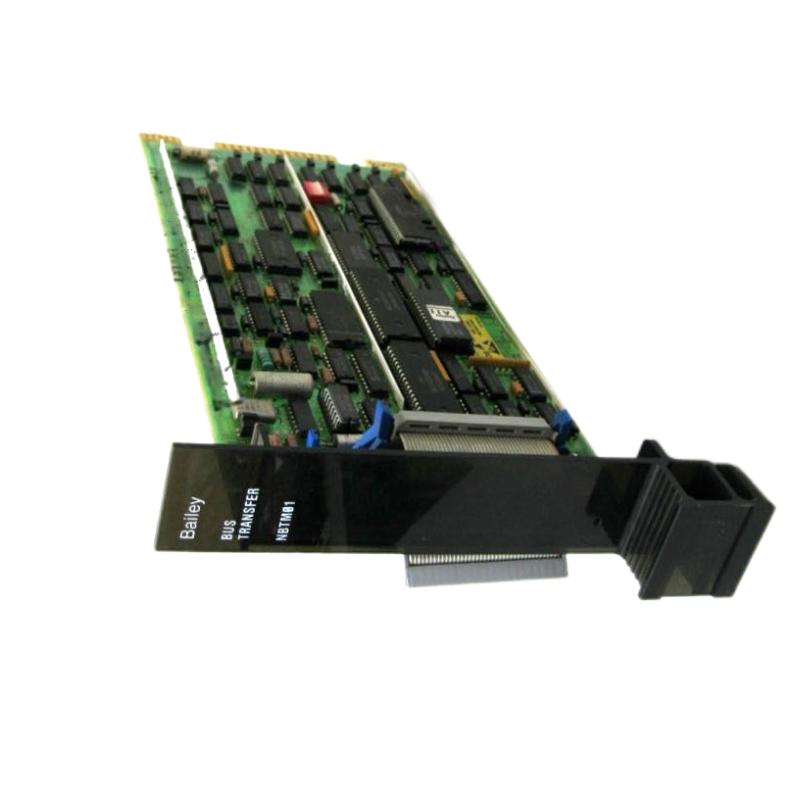

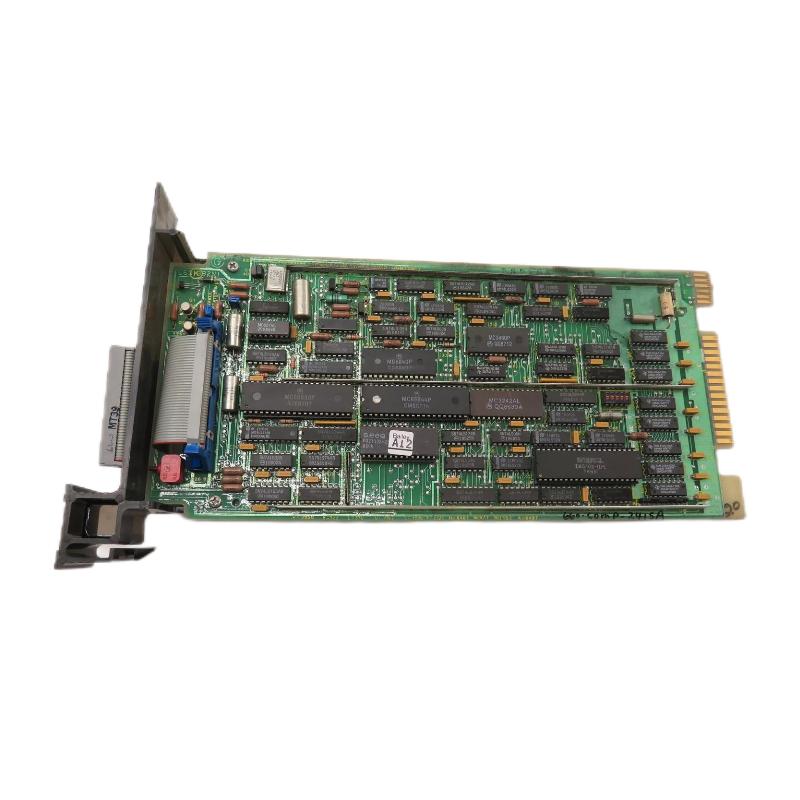

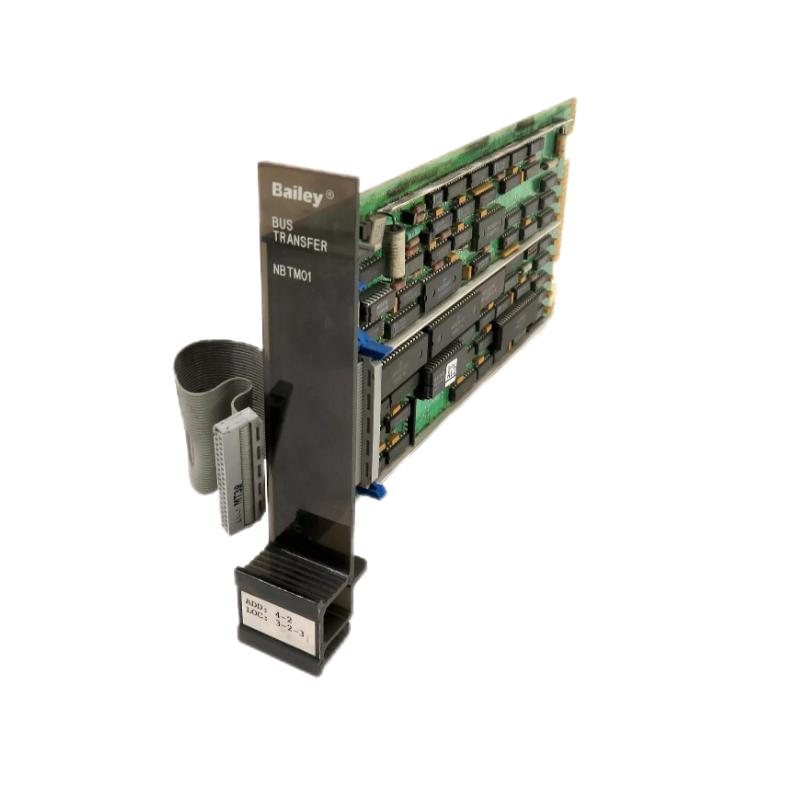

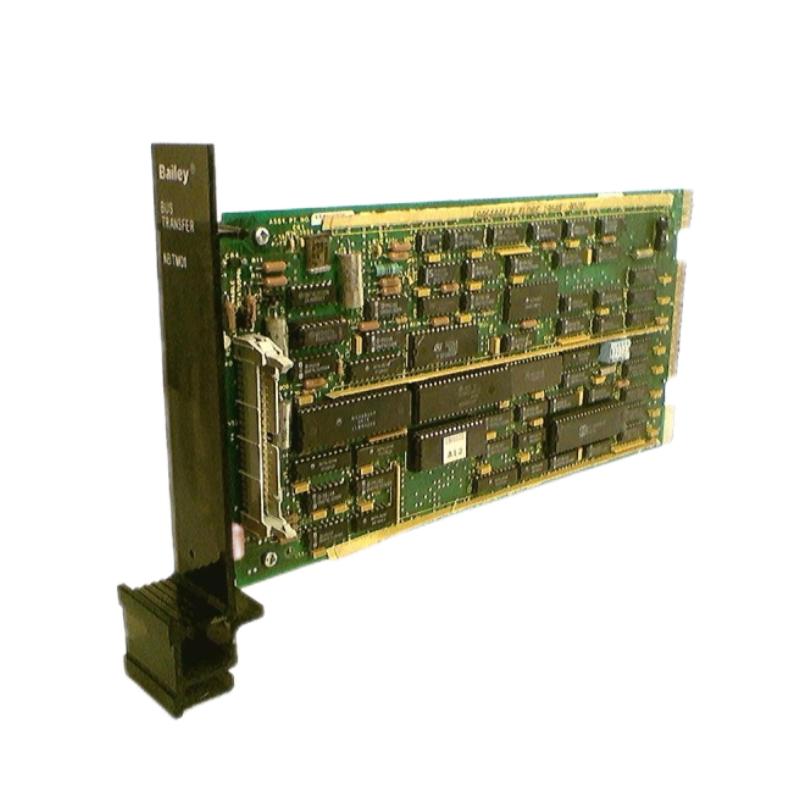

The ABB Bailey NBTM01 is a dedicated Network Bus Termination Module used in the INFI 90 / Net 90 distributed control system (DCS). It is designed to provide proper electrical termination for the system’s communication bus, ensuring signal integrity, impedance matching, and stable high-speed data transmission across the industrial control network.
In distributed automation architectures, improper bus termination can lead to signal reflection, communication errors, and system instability. The NBTM01 eliminates these risks by maintaining controlled network impedance and ensuring reliable communication between controllers, I/O modules, and system nodes. It is widely used in power plants, oil refineries, petrochemical facilities, and large-scale industrial automation systems.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Network Bus Termination Module |
| System | ABB Bailey INFI 90 / Net 90 DCS |
| Function | Network bus impedance termination |
| Communication Role | Stabilizes DCS network signal transmission |
| Interface Type | INFI 90 proprietary network bus |
| Electrical Function | Signal reflection suppression |
| Network Stability | Improves communication reliability |
| Compatibility | NBIM / NBCM network interface modules |
| Diagnostics | Passive module (no processing logic) |
| Module Type | Rack-mounted termination unit |
| Installation | End-of-line bus termination position |
| Power Requirement | None (passive module) |
| Operating Temperature | 0°C to 70°C |
| Humidity | 5%–95% non-condensing |
Dimensions & Weight
| Item | Value |
|---|---|
| Size (L × W × H mm) | 178 × 51 × 102 mm |
| Weight | approx. 0.3 – 0.6 kg |
Recommended Related Models
- ABB NBIM01 / NBIM02 – network bus interface modules
- ABB NBCM01 – communication module
- ABB INNPM11 – network processing module
- ABB IMMFP11 / IMMFP12 – processor modules
- ABB IMDSI / IMDSO series – I/O modules
Popular ABB Bailey Models
- INFI 90 network termination components
- Bailey Harmony distributed control systems
- ABB Symphony communication architectures
- Net 90 DCS network infrastructure modules
- Industrial automation communication systems
