Introduction

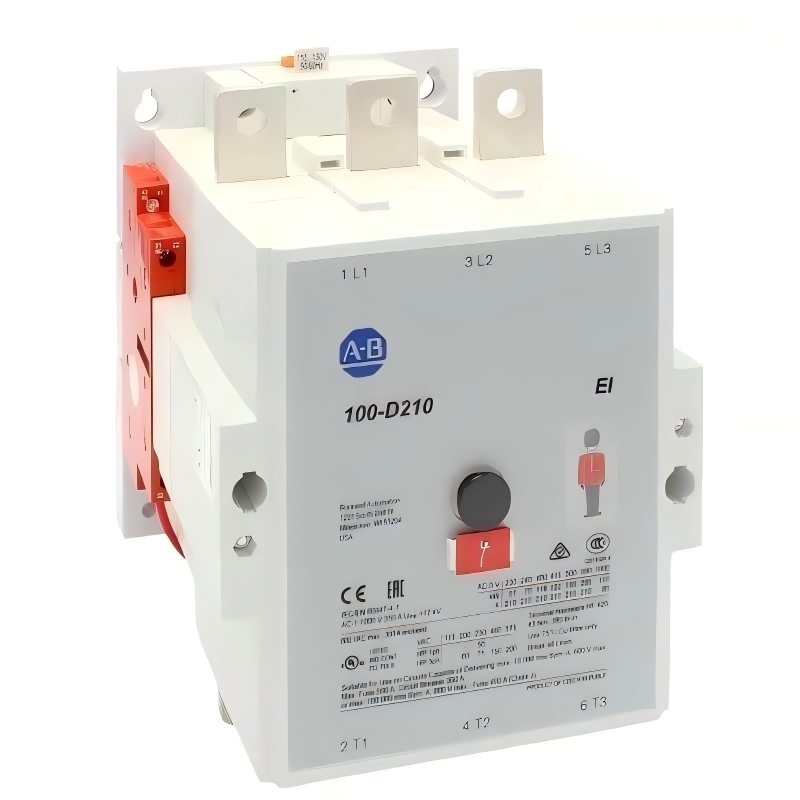

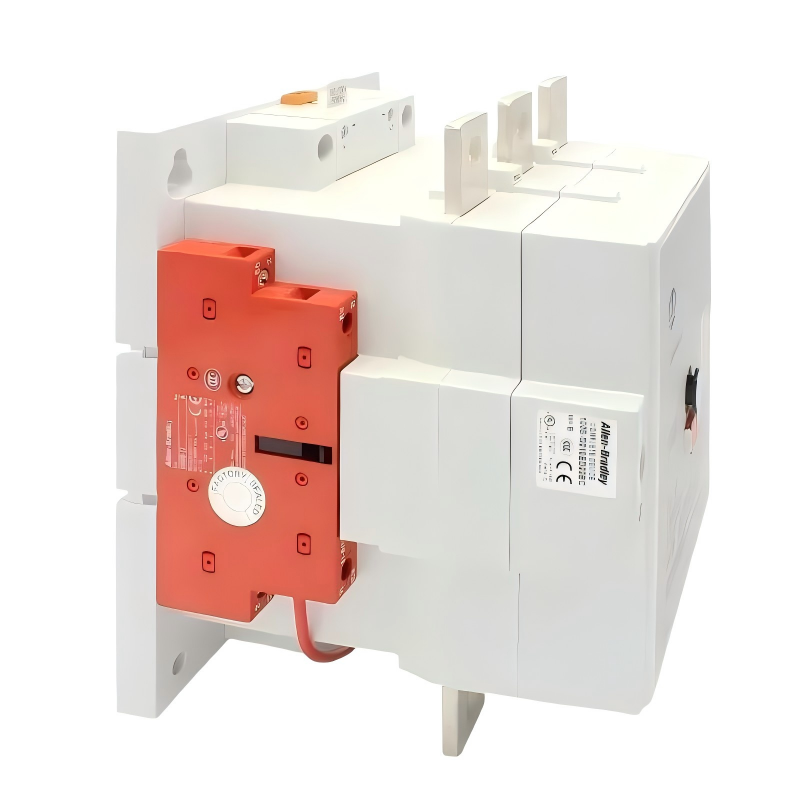

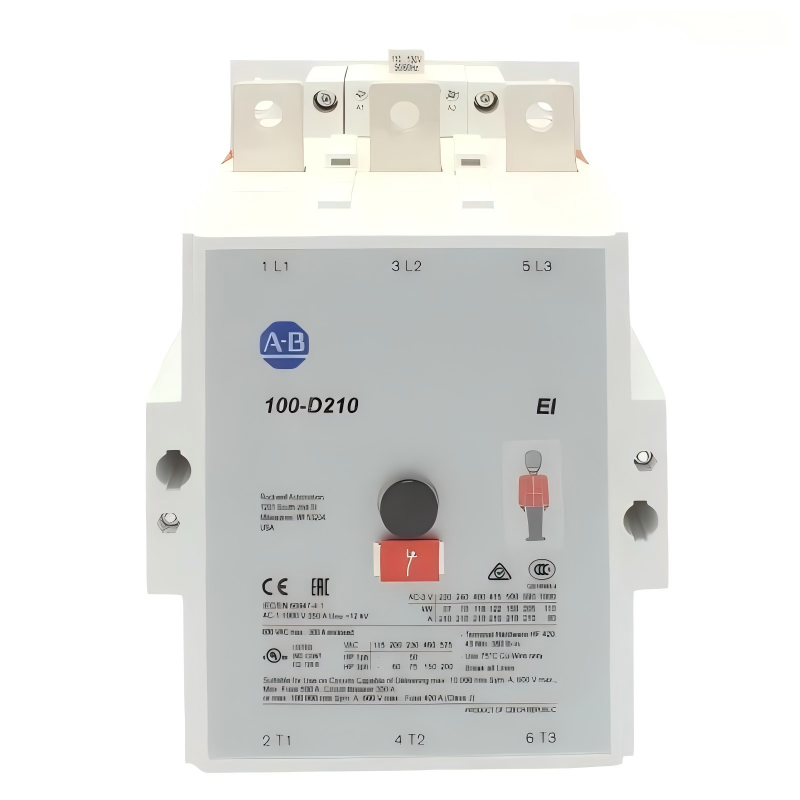

The Allen Bradley 100S-D210EA22BC Safety Contactor delivers reliable and robust switching for industrial safety and automation applications. Its high durability and fail-safe design make it an essential component for machinery requiring safe motor and load management, ensuring both operational efficiency and personnel safety.

Technical Specifications

Parameter	Specification
Dimensions (L × W × H)	205 × 155 × 180 mm
Weight	4.54 kg / 10.011 lb
Rated Voltage	24V DC / 600V AC (depends on model)
Rated Current	10–20 A (per manufacturer datasheet)
Auxiliary Contacts	Multiple, configurable
Mounting Options	Cabinet or Panel
Function	Safety Contactor for Motor and Load Circuits
Applications	Motor Control, Emergency Stop Circuits, Industrial Automation

Applications

The Allen Bradley 100S-D210EA22BC Safety Contactor is engineered for high-reliability switching in industrial automation and safety systems. It is specifically designed to manage motor loads, emergency stop circuits, and other critical machinery requiring fail-safe control.

Ideal for applications in manufacturing lines, conveyor systems, automated machinery, and safety shutdown circuits where dependable and fast-acting switching is essential.

Advantages

High-Reliability Safety Switching: Ensures fail-safe operation in critical industrial applications.
Compact Yet Robust: 205 × 155 × 180 mm; 4.54 kg / 10.011 lb, engineered to handle high motor loads.
Industrial Durability: Resistant to vibration, dust, and harsh environmental conditions.
Enhanced Safety Compliance: Meets rigorous industrial safety standards for contactor applications.
Seamless Integration: Compatible with Allen Bradley motor starters, safety relays, and automation systems.

Technical FAQs

What is the primary function of the 100S-D210EA22BC?
Provides safety-rated contactor switching for motors and critical machinery circuits.
What load types can it handle?
AC and DC motor loads, as well as resistive and inductive circuits.
Is it suitable for emergency stop circuits?
Yes, specifically designed for safety-critical applications.
What is the operating temperature range?
Reliable operation from -25°C to 60°C.
Does it include auxiliary contacts?
Yes, multiple auxiliary contacts are provided for status monitoring.
Can it be mounted in cabinets?
Yes, designed for standard industrial panel or cabinet mounting.
Is it suitable for high-vibration environments?
Yes, robust construction ensures performance under mechanical stress.
Does it require maintenance?
Minimal maintenance is required; periodic inspection is recommended.
What is the expected service life?
Designed for long-term industrial operation, typically tens of thousands of switching cycles.
Is it compatible with Allen Bradley safety relays?
Yes, it integrates seamlessly with Allen Bradley safety control systems.
