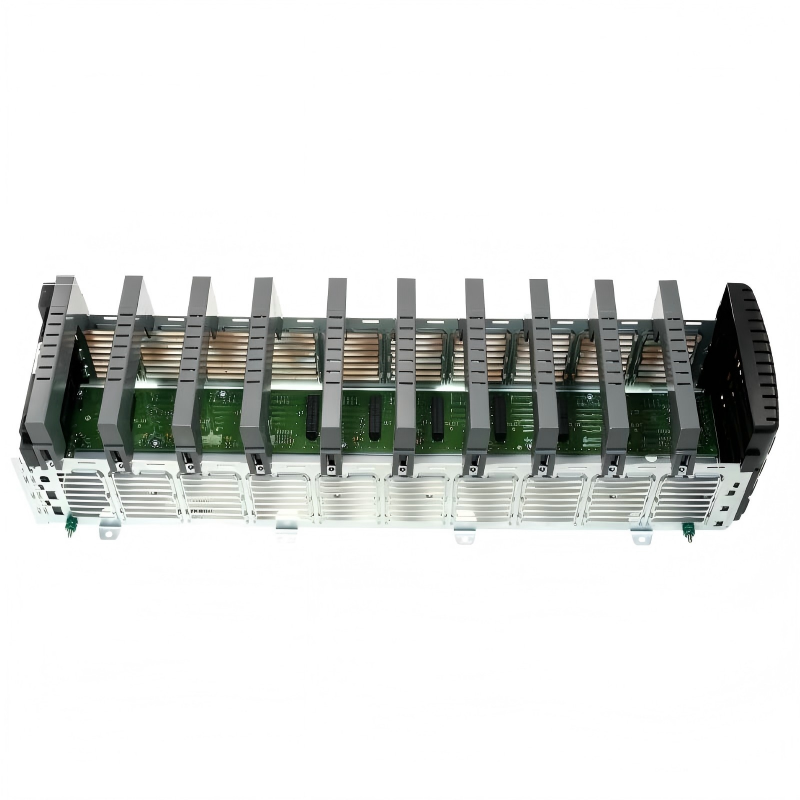

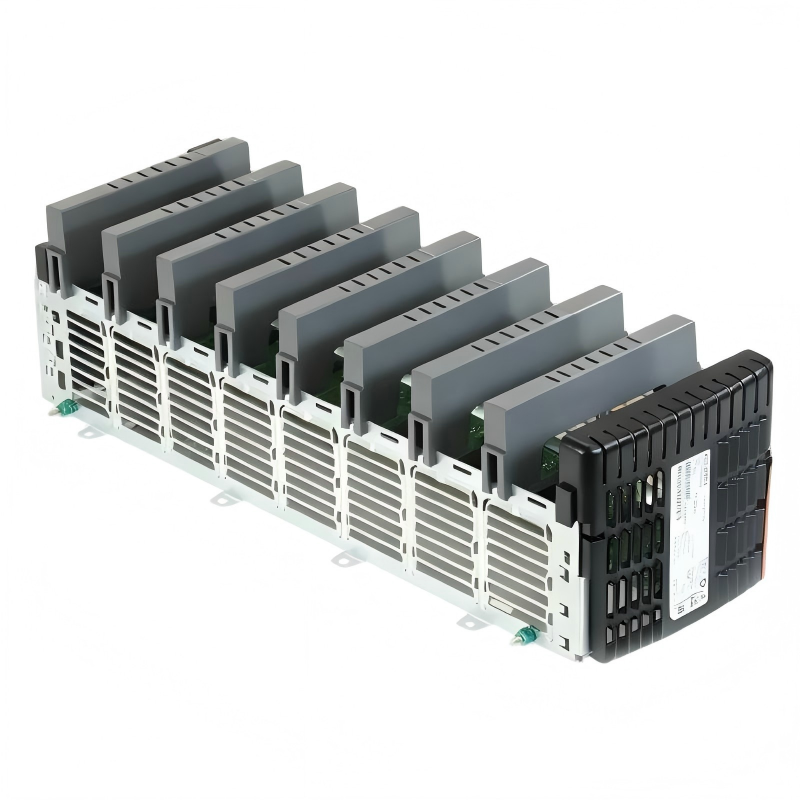

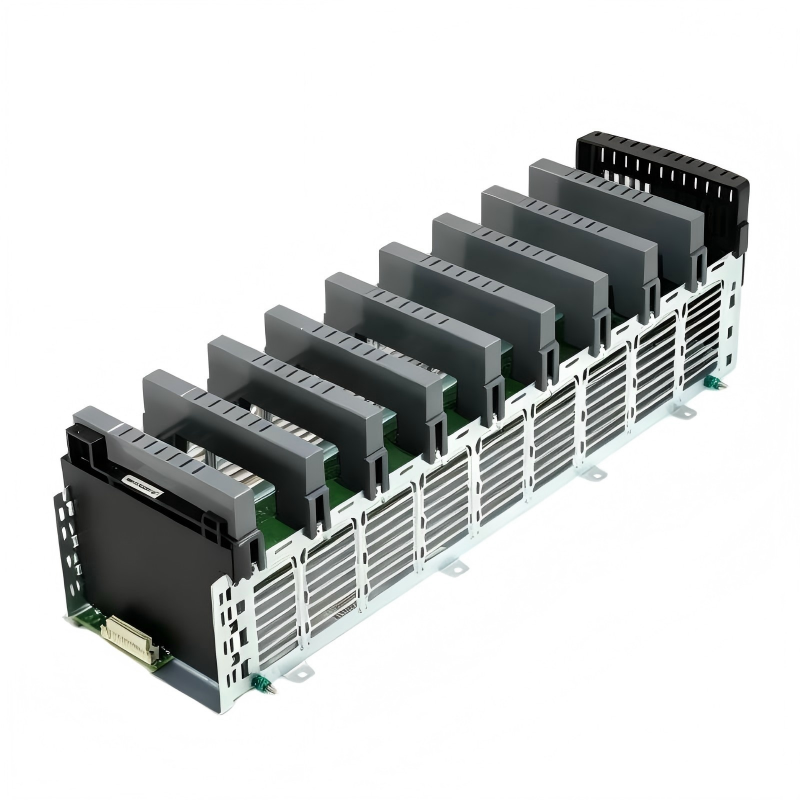

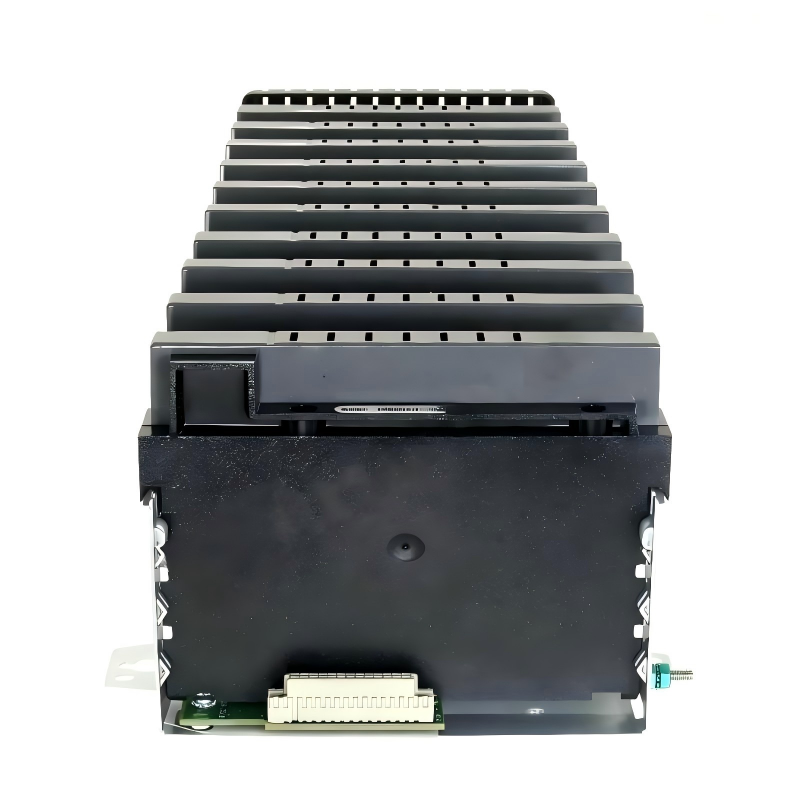

Allen Bradley 1756-A10XT ControlLogix 10-Slot XT Chassis
Allen Bradley 1756-A10XT ControlLogix 10-Slot XT Chassis
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-A10XT Product Origin:USA Product Dimensions:864 x 203 x 508 mm Product Weight:1.91 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-A10XT ControlLogix 10-Slot XT Chassis provides a scalable, modular foundation for complex automation systems. Its high-capacity design, durability, and compatibility with ControlLogix XT modules make it ideal for industrial applications requiring extended I/O, flexible configuration, and reliable system performance.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
864 × 203 × 508 mm
Weight
1.91 kg / 4.213 lb
Module Capacity
10 slots
Compatible Systems
ControlLogix XT Modules
Mounting Options
Panel or Cabinet
Function
Extended ControlLogix Chassis
Applications
Process Automation, Manufacturing, Industrial Machinery
Cooling
Passive
Applications
The Allen Bradley 1756-A10XT ControlLogix 10-Slot XT Chassis is designed to serve as the backbone for extended ControlLogix automation systems. It provides a modular and scalable platform for housing up to 10 ControlLogix modules, including processors, I/O, and communication modules.
Ideal for industrial control systems in process automation, manufacturing lines, and complex machinery where expanded I/O and flexible configuration are required.
Advantages
High-Capacity Modular Design: Accommodates up to 10 ControlLogix modules in a single chassis.
Compact Yet Sturdy: 864 × 203 × 508 mm; 1.91 kg / 4.213 lb, suitable for panel or cabinet installation.
Flexible System Expansion: Allows seamless integration of processors, I/O, and communication modules.
Reliable Industrial Performance: Designed to withstand vibration, temperature fluctuations, and harsh conditions.
Enhanced Connectivity: Supports ControlLogix backplane for high-speed data communication and deterministic control.
Technical FAQs
What is the primary purpose of the 1756-A10XT chassis?
Provides a platform to house up to 10 ControlLogix modules with proper backplane connectivity.
Which types of modules can be installed?
Processors, digital and analog I/O, communication, and specialty modules.
Is it suitable for industrial environments?
Yes, designed to operate under typical industrial temperatures and vibration.
Can it support redundant processors?
Yes, depending on the system configuration, redundant or standard ControlLogix processors can be installed.
How is the chassis mounted?
Panel or cabinet installation is supported, with secure mounting points.
Does it provide backplane power distribution?
Yes, it supplies power to all installed modules through the integrated backplane.
Is it compatible with ControlLogix XT series modules?
Yes, fully compatible with the extended XT module line.
Can multiple chassis be networked?
Yes, multiple ControlLogix XT chassis can be connected via communication modules.
What is the operating temperature range?
-20°C to 60°C, suitable for industrial environments.
Does it require active cooling?
No, passive cooling is sufficient for typical industrial applications.
