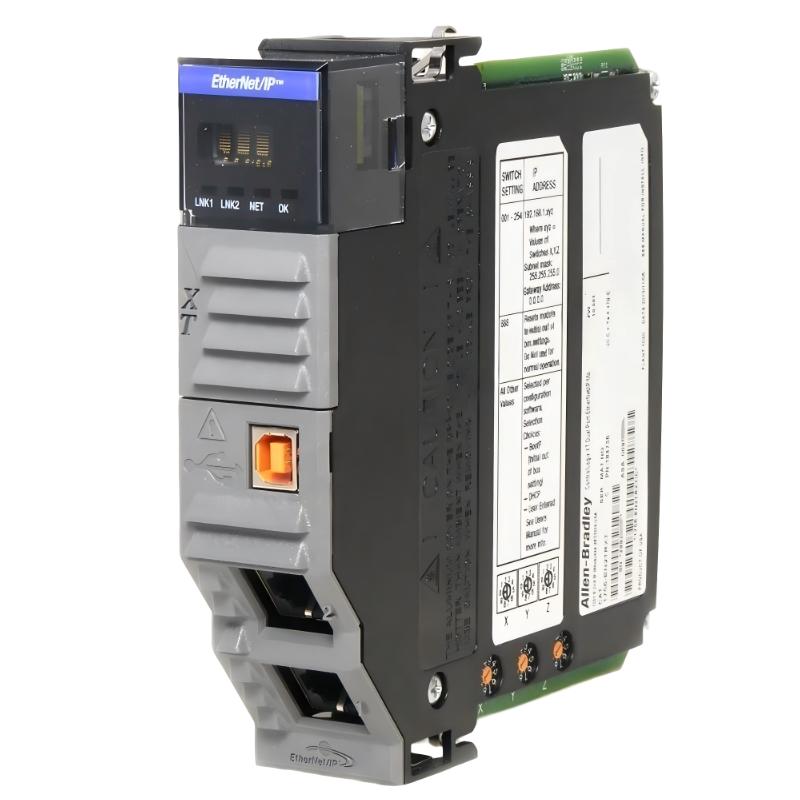

Allen Bradley 1756-EN2TRXT ControlLogix-XT EtherNet/IP Bridging Module
Allen Bradley 1756-EN2TRXT ControlLogix-XT EtherNet/IP Bridging Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-EN2TRXT Product Origin:USA Product Dimensions:144.5 × 34.6 × 130.18 mm Product Weight:0.39 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-EN2TRXT ControlLogix-XT EtherNet/IP Bridging Module provides a reliable and efficient solution for integrating legacy ControlLogix-XT systems with modern Ethernet-based industrial networks. It ensures smooth communication, robust performance, and enhanced diagnostics to support complex automation applications.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
144.5 × 34.6 × 130.18 mm
Weight
0.39 kg / 0.860 lb
Network Protocol
EtherNet/IP
Mounting Options
ControlLogix-XT Rack
Function
EtherNet/IP Bridging Module
Applications
Factory Automation, Process Control, Industrial Networking
Diagnostics
Network status and fault reporting
Applications
The Allen Bradley 1756-EN2TRXT EtherNet/IP Bridging Module is designed to enable seamless communication between ControlLogix-XT systems and standard EtherNet/IP networks. It allows extended automation systems to integrate with modern industrial networks, ensuring fast, reliable data exchange.
Ideal for manufacturing, process control, and industrial automation applications where ControlLogix-XT systems must communicate with PLCs, HMIs, or SCADA systems over Ethernet.
Advantages
High-Speed Network Integration: Provides fast and reliable EtherNet/IP bridging for ControlLogix-XT systems.
Compact and Lightweight: 144.5 × 34.6 × 130.18 mm; 0.39 kg / 0.860 lb, minimizing space in control panels.
Seamless System Expansion: Facilitates communication between older ControlLogix-XT modules and modern EtherNet/IP networks.
Robust Industrial Design: Designed to operate reliably in harsh industrial environments.
Enhanced Diagnostics: Supports network monitoring and status reporting for improved system reliability.
Technical FAQs
What is the main function of the 1756-EN2TRXT?
Bridges ControlLogix-XT modules with EtherNet/IP networks for seamless communication.
Is it compatible with standard ControlLogix racks?
Yes, designed for XT series ControlLogix racks.
Does it support multiple network connections?
Yes, it can manage multiple EtherNet/IP sessions for system integration.
What is the data transfer rate?
Supports standard EtherNet/IP rates up to 100 Mbps.
Can it integrate with HMIs and SCADA systems?
Yes, fully compatible with industrial HMIs and SCADA platforms.
Is it suitable for harsh industrial environments?
Yes, designed to handle temperature variations, vibration, and electrical noise.
How is it mounted?
Rack-mounted in ControlLogix-XT chassis with standard backplane connection.
Does it support network diagnostics?
Yes, it provides status indicators and network diagnostic capabilities.
Can it bridge multiple ControlLogix-XT modules?
Yes, it supports multiple modules on the same network.
Is firmware upgradable?
Yes, firmware updates can be applied to maintain compatibility and performance.
