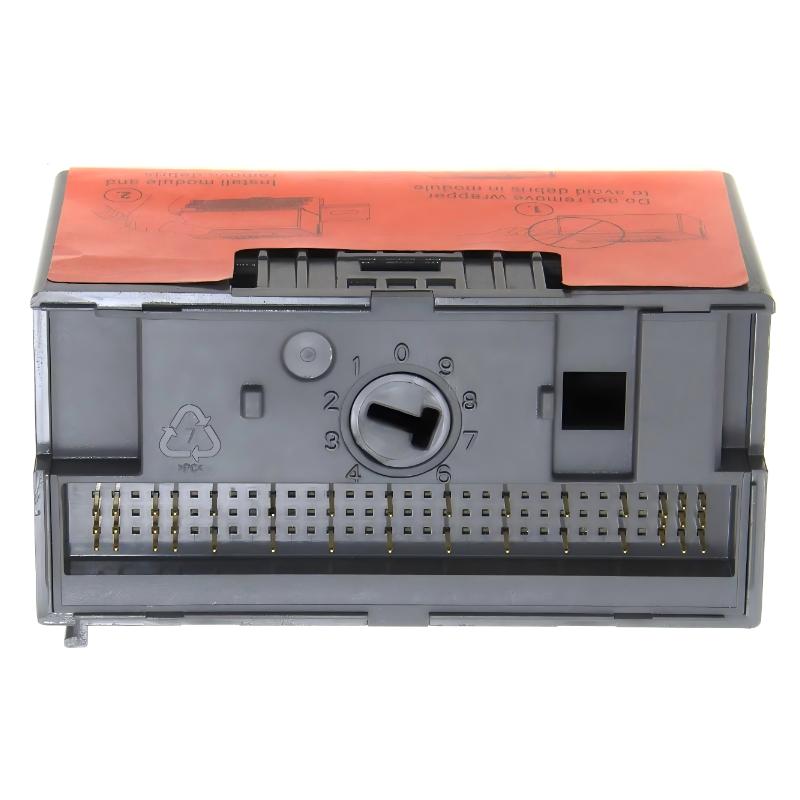

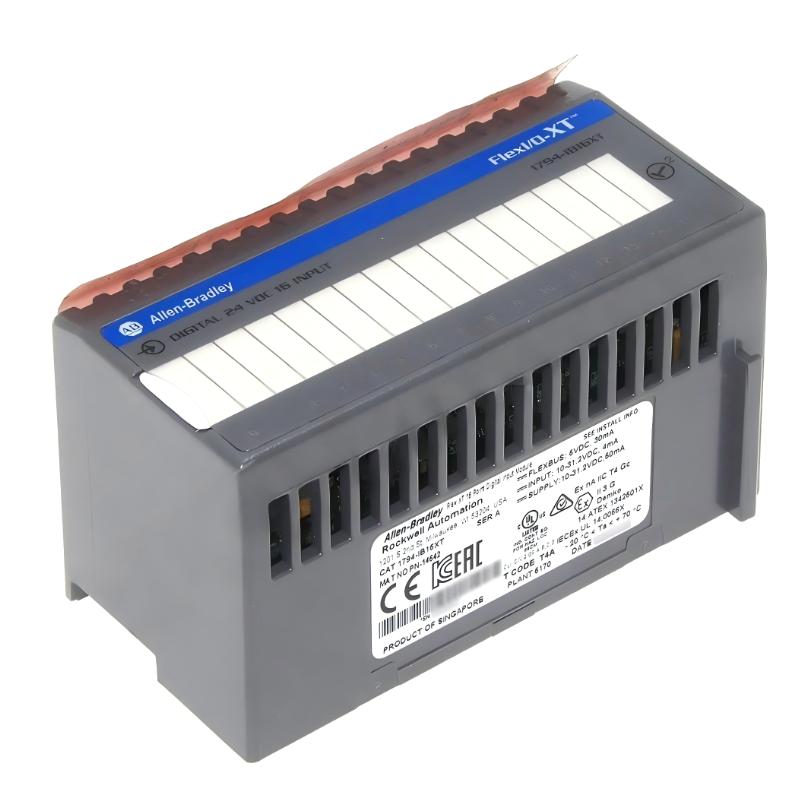

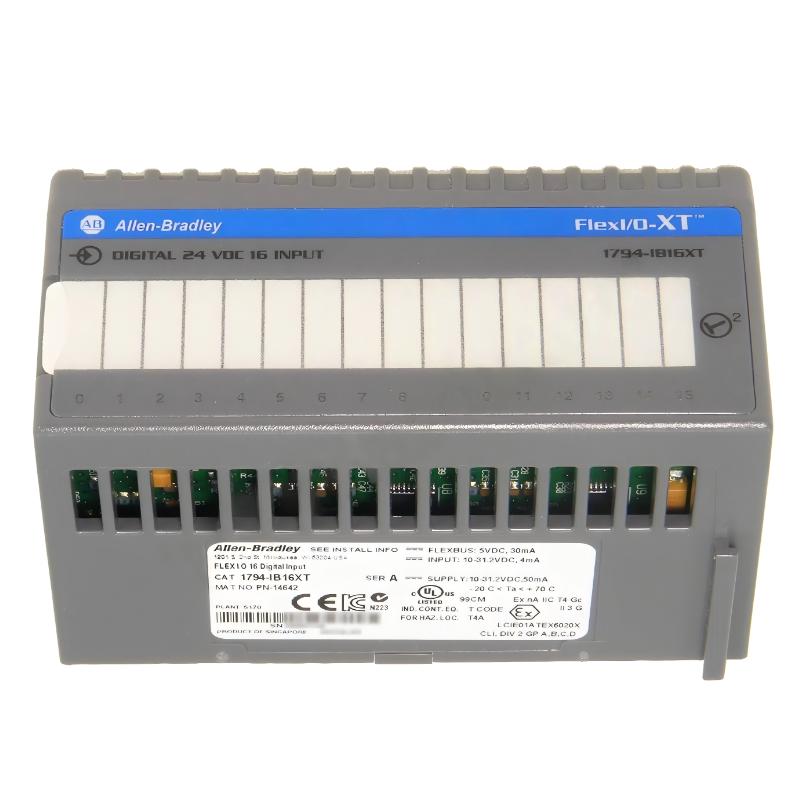

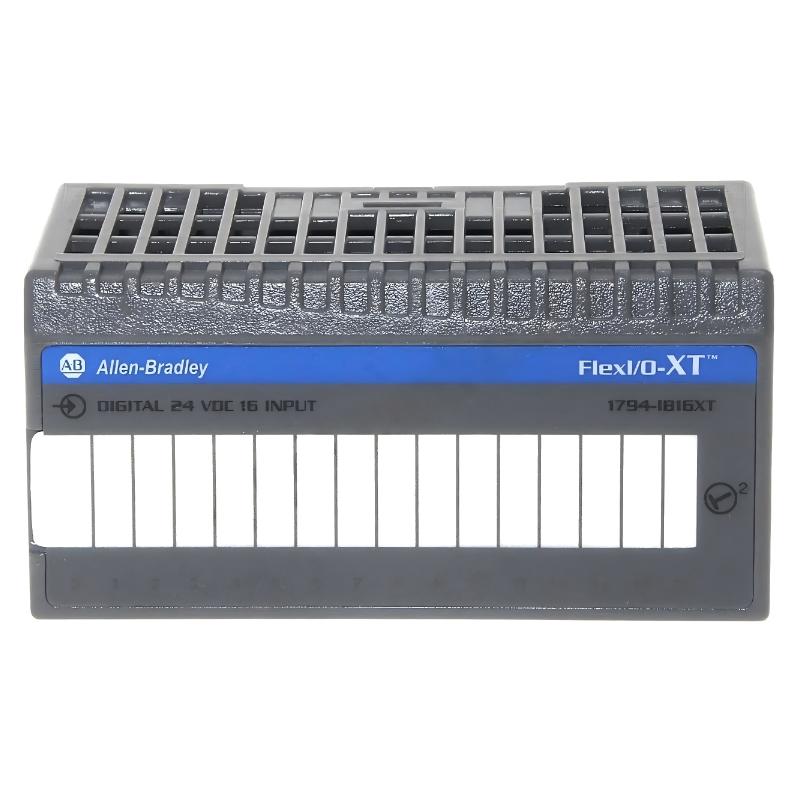

Allen Bradley 1794-IB16XT Flex I/O-XT Digital Input Module
Allen Bradley 1794-IB16XT Flex I/O-XT Digital Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-IB16XT Product Origin:USA Product Dimensions:94 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1794-IB16XT Flex I/O-XT Digital Input Module provides a reliable, compact solution for capturing discrete input signals in modular industrial automation systems. Its lightweight design, high channel density, and robust construction ensure dependable performance in demanding industrial environments.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
94 × 46 × 53 mm
Weight
0.1 kg / 0.220 lb
Number of Channels
16 Digital Inputs
Input Voltage
24V DC
Mounting Options
Flex I/O-XT Chassis/Backplane
Function
Digital Input Module
Applications
Machine Automation, Process Control, Modular Industrial Systems
Diagnostics
Input status and fault reporting
Applications
The Allen Bradley 1794-IB16XT Flex I/O-XT Digital Input Module is designed for industrial automation systems requiring compact, reliable digital input functionality. It interfaces directly with sensors, switches, and field devices, providing precise and fast input data to Flex I/O controllers.
Ideal for machine automation, process control, and modular industrial systems where space is limited but reliable digital input is critical.
Advantages
High-Density Digital Inputs: Supports 16 digital inputs in a compact 94 × 46 × 53 mm module.
Lightweight and Compact: 0.1 kg / 0.220 lb, minimizing panel space and installation weight.
Fast and Reliable Switching: Industrial-grade design ensures accurate input detection.
Seamless Flex I/O Integration: Works directly with Flex I/O-XT controllers for modular automation.
Durable Industrial Construction: Designed to withstand typical industrial electrical noise and vibration.
Technical FAQs
What is the primary function of the 1794-IB16XT?
Provides 16 discrete digital input channels to Flex I/O-XT systems.
What voltage levels are supported?
Compatible with 24V DC standard industrial signals.
Can it detect fast input pulses?
Yes, designed for rapid switching signals from sensors and switches.
Is it suitable for harsh industrial environments?
Yes, built for electrical noise immunity and vibration resistance.
How is it mounted?
Directly attaches to Flex I/O-XT backplanes or chassis.
Does it provide diagnostics?
Yes, input status and fault detection are supported by the controller.
Can multiple modules be used in one system?
Yes, multiple input modules can be combined to expand input capacity.
Is it compatible with Flex I/O controllers?
Fully compatible with all Flex I/O-XT controllers.
What is the expected service life?
Industrial-grade durability ensures long-term use in automation systems.
Can it interface with safety devices?
Yes, digital inputs can be used with safety circuits if designed within system specifications.
