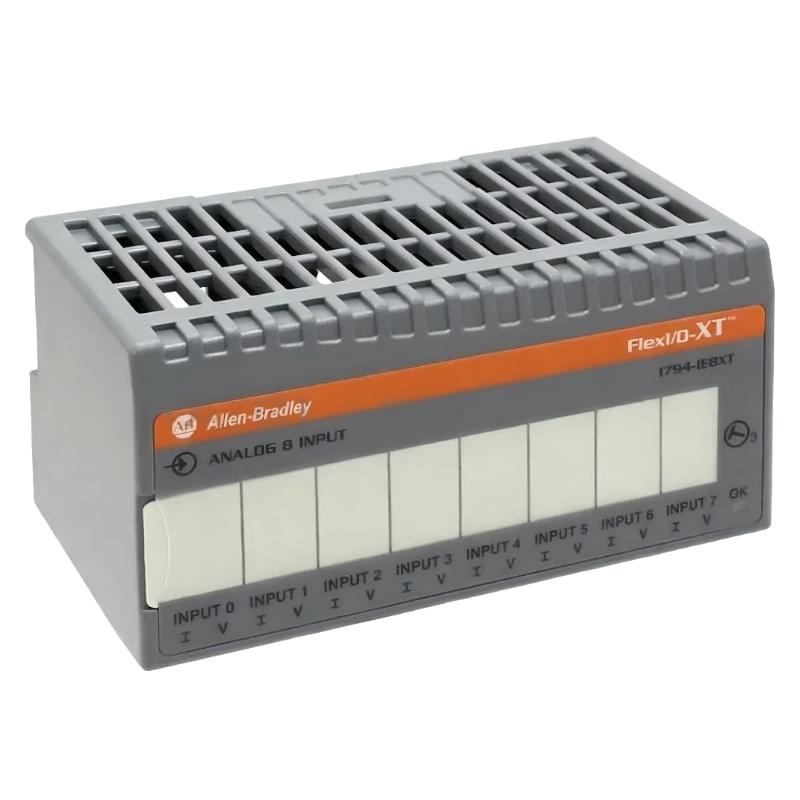

Allen Bradley 1794-IE8XT Flex I/O-XT Analog Input Module
Allen Bradley 1794-IE8XT Flex I/O-XT Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1794-IE8XT Product Origin:USA Product Dimensions:94 x 46 x 53 mm Product Weight:0.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1794-IE8XT Flex I/O-XT Analog Input Module provides high-accuracy analog signal acquisition for industrial automation systems. Its compact, lightweight design, combined with Flex I/O-XT compatibility and robust construction, ensures reliable and precise measurements in demanding environments.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
94 × 46 × 53 mm
Weight
0.1 kg / 0.220 lb
Number of Channels
8 Analog Inputs
Supported Signal Types
4–20 mA, 0–10 V, RTD
Mounting Options
Flex I/O-XT Chassis/Backplane
Function
Analog Input Module
Applications
Process Automation, Machine Monitoring, Modular Industrial Systems
Diagnostics
Channel status and fault reporting
Applications
The Allen Bradley 1794-IE8XT Flex I/O-XT Analog Input Module is designed for precise measurement of industrial analog signals such as temperature, pressure, flow, and level. It interfaces directly with sensors and transducers, providing high-resolution input data to Flex I/O-XT controllers.
Ideal for process automation, machine monitoring, and modular industrial control systems where accurate analog data acquisition is essential.
Advantages
High-Precision Analog Inputs: Supports 8 analog input channels for accurate signal acquisition.
Compact and Lightweight: 94 × 46 × 53 mm; 0.1 kg / 0.220 lb, perfect for tight panel spaces.
Seamless Flex I/O Integration: Works directly with Flex I/O-XT controllers for modular and scalable systems.
Reliable Industrial Performance: Provides stable signal measurement in electrically noisy environments.
Versatile Signal Compatibility: Accepts standard industrial analog signals including 4–20 mA and 0–10 V.
Technical FAQs
What is the main function of the 1794-IE8XT?
Provides 8 analog input channels to Flex I/O-XT systems for process measurements.
What types of signals are supported?
4–20 mA, 0–10 V, and sensor-specific input signals.
Is it suitable for high-noise industrial environments?
Yes, designed with robust filtering and shielding for stable readings.
Can it handle thermocouple or RTD inputs?
Some configurations support RTDs; thermocouples may require signal conditioning.
How is it mounted?
Directly attaches to Flex I/O-XT backplanes or chassis.
Does it provide diagnostics?
Yes, channel status and fault detection are available through the controller.
Can multiple modules be combined in one system?
Yes, multiple analog input modules can expand measurement capacity.
Is it compatible with Flex I/O controllers?
Fully compatible with all Flex I/O-XT controllers.
What is the expected service life?
Built for long-term industrial use with minimal maintenance.
Can it interface with safety or critical monitoring devices?
Yes, analog inputs can feed into critical monitoring and control loops with proper system configuration.
